Description
Overview

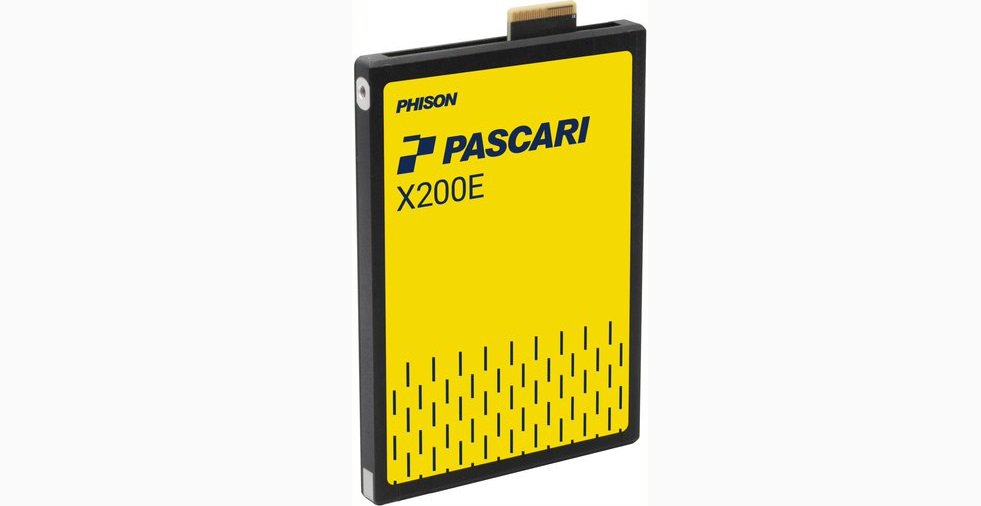

PHISON XP20DH036T40E218T1910 Pascari X200E 6400 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD
Specifications
Model Number: XP20DH036T40E218T1910
Brand: PHISON
Alt Part Number(s): XP20DH036T40E218T1910
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP20DH036T40E218T1910
Capacities: 6400 GB
Form Factor: E3.S
Interface: Single Port
Security: Opal
PCIe Interface: PCIe Gen5x4
Single Port: x4 lanes
PCIe AER (Advanced Error Reporting): Yes
Maximum Sequential 128KB Read/Write (QD=32, Workers=1)(MB/s): 14,000/8,500
Maximum 4K Sustained Random Read/Write (QD=64, Workers=8)(IOPS): 3,000,000/850,000
Latency 4K Sustained Random Read/Write (µs): 60/10(QD=1, Workers=1); 85/100(QD=4, Workers=8); 190/1100(QD=64, Workers=8)
IOPS Consistency 4KB Sustained Random Read/Write: 95%/95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(4KB): 80/12(QD=1, Workers=1); 120/100(QD=4, Workers=8); 450/1100(QD=64, Workers=8)
DWPD: 3DWPD
TBW: 35040 TB
LBAF: 512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes
MTBF: 2.5 million hours
UBER (Uncorrectable Bit Error Rates): 3D NAND < 1 sector per 10^18 bits read
ECC: Yes
Static and Dynamic Wear Leveling: Yes
Bad Block Management: Yes
Deallocate (TRIM) Command: Yes
SMART: Yes
Over-Provision: Yes
Firmware Upgrade: Yes
Temperature Range Operation: 0°C - 70°C with specified airflow
Temperature Range Storage: -40°C - 85°C
RoHS Compliant: Yes
Namespace: Supported
Single Port: Supported
Reservation: Supported
Metadata Protection: Supported
Thermal Throttling: Supported
Power Loss Protection: Supported
Hardware AES-XTS 256-bit Encryption: Supported
Support SMBus: Yes
Support NVMe-MI (Management Interface): Yes
Data Retention: 3 months
Compliance: PCIe Express Base 5.0
NVMe Version: NVMe Express 2.0
NVMe Management Interface: NVMe Express Management Interface Rev 1.2
Module Specification: PCIe Express SFF-8639 Module Specification Revision 4.0, Version 1.0
Flash Configuration: 512GB x 16
Flash Type: 128CE, 512Gb ODP
Flash Structure: 512GB x 16
Flash Type: 3D eTLC
TBW: 35040
DWPD: 3
Supply Voltage 12v: +/- 10%
12v Noise Level: 240mVp-p, 0-20MHz
12v Minimum Off Time: 500ms
3.3v Aux: +/- 15%
Inrush Current: 12v 2.5A
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
