Description
Overview

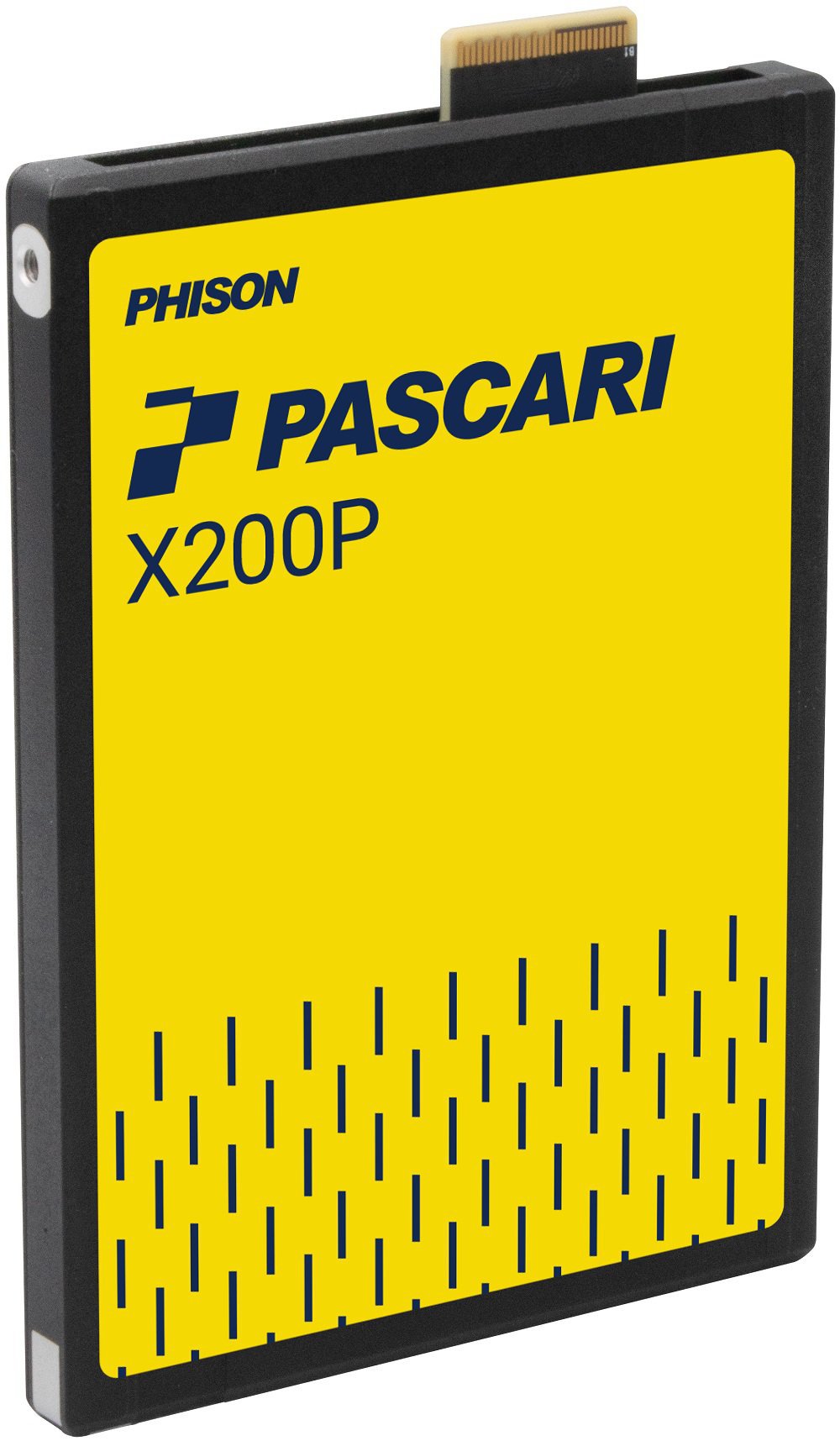

PHISON XP20DH033T84P214T0910 Pascari X200P 3840 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD
Specifications
Model Number: XP20DH033T84P214T0910
Brand: PHISON
Alt Part Number(s): XP20DH033T84P214T0910
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP20DH033T84P214T0910
Capacities: 3840 GB
Form Factor: E3.S
Security: Opal
PCIe Interface: PCIe Gen5x4
Single Port: x4 lanes
PCIe AER: Advanced Error Reporting
Maximum Sequential 128KB Read/Write (QD=32, Workers=1): 14,000/8500 MB/s
Maximum 4K Sustained Random Read/Write (QD=64, Workers=8): 3,000,000/360,000 IOPS
Latency 4K Sustained Random Read/Write (µs):
60/10 (QD=1, Workers=1)
85/160 (QD=4, Workers=8)
190/2000 (QD=64, Workers=8)
IOPS Consistency 4KB Sustained Random Read/Write: 95%/95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%) (4KB):
80/12 (QD=1, Workers=1)
130/160 (QD=4, Workers=8)
500/2000 (QD=64, Workers=8)
Power Consumption (Active Power): 25 W
Inrush Current: 2.5 A
Idle Power: <9 W
DWPD: 1 DWPD
TBW: 7008 TB
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF: 2.5 million hours
UBER (Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits read
Advanced Flash Management: ECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade
Temperature (Operating): 0°C to 70°C (with specified airflow)
Temperature (Non-Operating): -40°C to 85°C
RoHS compliant
Enterprise Features Support List: Namespace, Single Port, Reservation, Metadata Protection, Thermal throttling, Power Loss Protection, Hardware AES-XTS 256-bit Encryption
Support SMBus
Support NVMe-MI (Management Interface)
Data Retention: 3 months
Compliance:
PCIe Express Base 5.0
NVMe Express 2.0
NVMe Express Management Interface Rev 1.2
PCIe Express SFF-8639 Module Specification Revision 4.0, Version 1.0
Flash Configuration: 256GB x 16
Flash Type: 64CE, 512Gb QDP, 3D eTLC
Supply Voltage:
12v: +/- 10%
12v noise level: 240mVp-p, 0-20MHz
12v min off time: 500ms
3.3v aux: +/- 15%
Inrush current: 12v 2.5A
