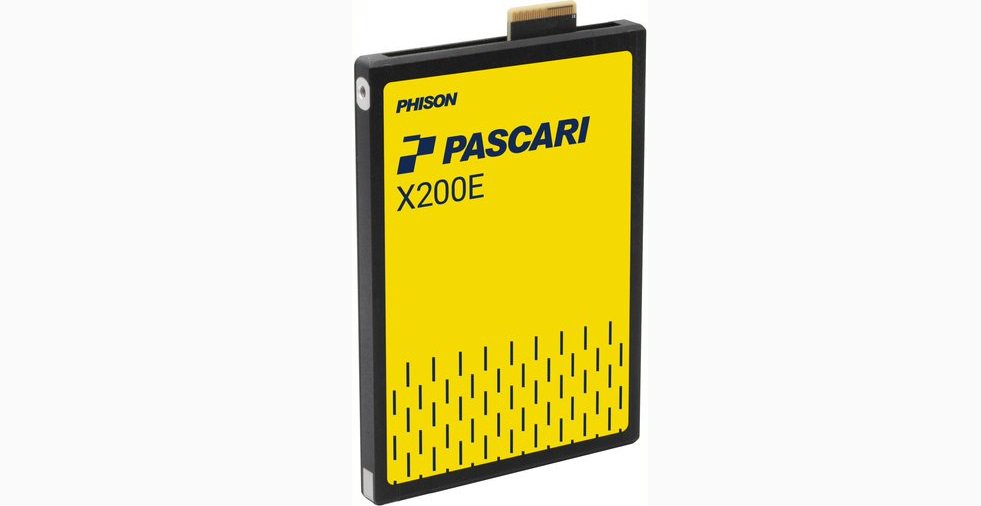

PHISON XP20DH033T20E214T0910 Pascari X200E 3200 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD

Price:

$2,564.00

No reviews

PHISONSKU: X200E-3T2E

Model Number: XP20DH033T20E214T0910

Condition: New

In stock:  No

Price:

Sale price$2,564.00

/

NOTE: Availability 1-3 Weeks. Lead times may vary.

Quantity:

Get a Quote

PHISON XP20DH033T20E214T0910 Pascari X200E 3200 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD

SPECIAL ORDER ITEM

This product is available for special order and may take longer to ship.

AVAILABILITY & SHIPPING

We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.

NEED IT SOONER?

Contact us to explore expedited options or find a comparable in-stock alternative.

SPECIAL ORDER FULFILLMENT

Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.

🛒 Add to Cart

X

XP20DH033T20E214T0910

First Name

Last Name

Your Email

Company Name

Phone No

Quantity

Product Inquiry

Send message

• Overview
• Tech Spec
• Additional Info

XP20DH033T20E214T0910 by PHISON is a high-performance SSD designed for enterprise and data center environments. It offers a large 3200 GB capacity, PCIe Gen5x4 interface, and advanced Opal security features. Ideal for demanding workloads requiring speed, reliability, and robust data protection.

Brand	PHISON
Model Number	XP20DH033T20E214T0910
Alt Part Number	XP20DH033T20E214T0910
Capacity	3200 GB
Form Factor	E3.S
Interface	PCIe Gen5x4
Protocols	NVMe
Drive Type	Solid State Drive
Read Speed	Up to 14,000 MB/s
Write Speed	Up to 8,500 MB/s
Random Read	Up to 3,000,000 IOPS
Random Write	Up to 800,000 IOPS

Read More

Security	Opal
PCIe Interface	PCIe Gen5x4
Single Port	x4 lanes
PCIe AER (Advanced Error Reporting)	Yes
Latency 4K Sustained Random Read/Write (µs)	60/10(QD=1, Workers=1); 85/130(QD=4, Workers=8); 190/1250(QD=64, Workers=8)
IOPS Consistency 4KB Sustained Random Read/Write	95%/95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(4KB)	80/12(QD=1, Workers=1); 130/130(QD=4, Workers=8); 500/1250(QD=64, Workers=8)
DWPD	3DWPD
TBW	17520 TB
LBAF	512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes
MTBF	2.5 million hours
UBER (Uncorrectable Bit Error Rates)	3D NAND < 1 sector per 10^18 bits read
ECC	Yes
Static and Dynamic Wear Leveling	Yes
Bad Block Management	Yes
Deallocate (TRIM) Command	Yes
SMART	Yes
Over-Provision	Yes
Firmware Upgrade	Yes
Temperature Range Operation	0°C - 70°C with specified airflow
Temperature Range Storage	-40°C - 85°C
RoHS Compliant	Yes
Namespace	Supported
Reservation	Supported
Metadata Protection	Supported
Thermal Throttling	Supported
Power Loss Protection	Supported
Hardware AES-XTS 256-bit Encryption	Supported
Support SMBus	Yes
Support NVMe-MI (Management Interface)	Yes
Data Retention	3 months
Compliance	PCIe Express Base 5.0
NVMe Version	NVMe Express 2.0
NVMe Management Interface	NVMe Express Management Interface Rev 1.2
Module Specification	PCIe Express SFF-8639 Module Specification Revision 4.0, Version 1.0
Flash Configuration	256GB x 16
Flash Type	64CE, 512Gb QDP; 3D eTLC
Flash Structure	256GB x 16
Supply Voltage 12v	+/- 10%
12v Noise Level	240mVp-p, 0-20MHz
12v Minimum Off Time	500ms
3.3v Aux	+/- 15%
Inrush Current	12v 2.5A
