Description
Overview

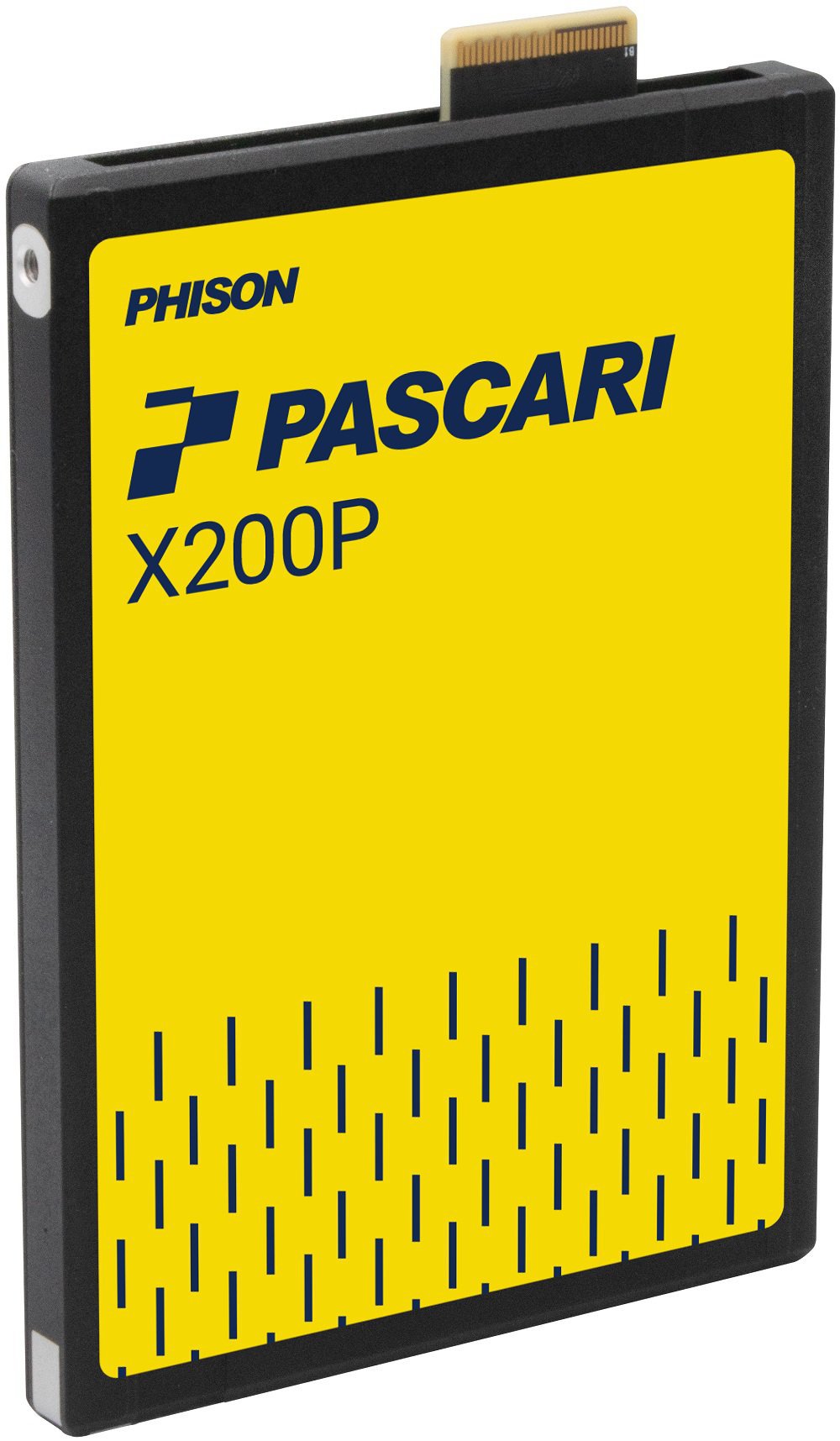

PHISON XP20DH031T92P212T0410 Pascari X200P 1920 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD
Specifications
Model Number: XP20DH031T92P212T0410
Brand: PHISON
Alt Part Number(s): XP20DH031T92P212T0410
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP20DH031T92P212T0410
Capacities: 1920 GB
Form Factor: E3.S
Security: Opal
PCIe Interface: PCIe Gen5x4
Single Port: x4 lanes
PCIe AER: Advanced Error Reporting
Maximum Sequential 128KB Read/Write (QD=32, Workers=1): 14,000/4200 MB/s
Maximum 4K Sustained Random Read/Write (QD=64, Workers=8): 2,100,000/160,000 IOPS
Latency 4K Sustained Random Read/Write (µs):
60/10 (QD=1, Workers=1)
85/250 (QD=4, Workers=8)
260/4000 (QD=64, Workers=8
IOPS Consistency 4KB Sustained Random Read/Write: 95%/95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%) (4KB):
80/12 (QD=1, Workers=1)
140/250 (QD=4, Workers=8)
900/4000 (QD=64, Workers=8)
Power Consumption (Active Power): 25 W
Inrush Current: 2.5 A
Idle Power: <9 W
DWPD: 1 DWPD
TBW: 3504 TB
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF: 2.5 million hours
UBER (Uncorrectable Bit Error Rates): 3D NAND < 1 sector per 10^18 bits read
Advanced Flash Management: ECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade
Temperature (Operating): 0°C to 70°C (with specified airflow)
Temperature (Non-Operating): -40°C to 85°C
RoHS compliant
Enterprise Features Support List: Namespace, Single Port, Reservation, Metadata Protection, Thermal throttling, Power Loss Protection, Hardware AES-XTS 256-bit Encryption
Support SMBus
Support NVMe-MI (Management Interface)
Data Retention: 3 months
Compliance:
PCIe Express Base 5.0
NVMe Express 2.0
NVMe Express Management Interface Rev 1.2
PCIe Express SFF-8639 Module Specification Revision 4.0, Version 1.0
Flash Configuration: 256GB x 8
Flash Type: 32CE, 512Gb, QDP, 3D eTLC
Supply Voltage:
12v: +/- 10%
12v noise level: 240mVp-p, 0-20MHz
12v min off time: 500ms
3.3v aux: +/- 15%
Inrush current: 12v 2.5A
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
