Description
Overview

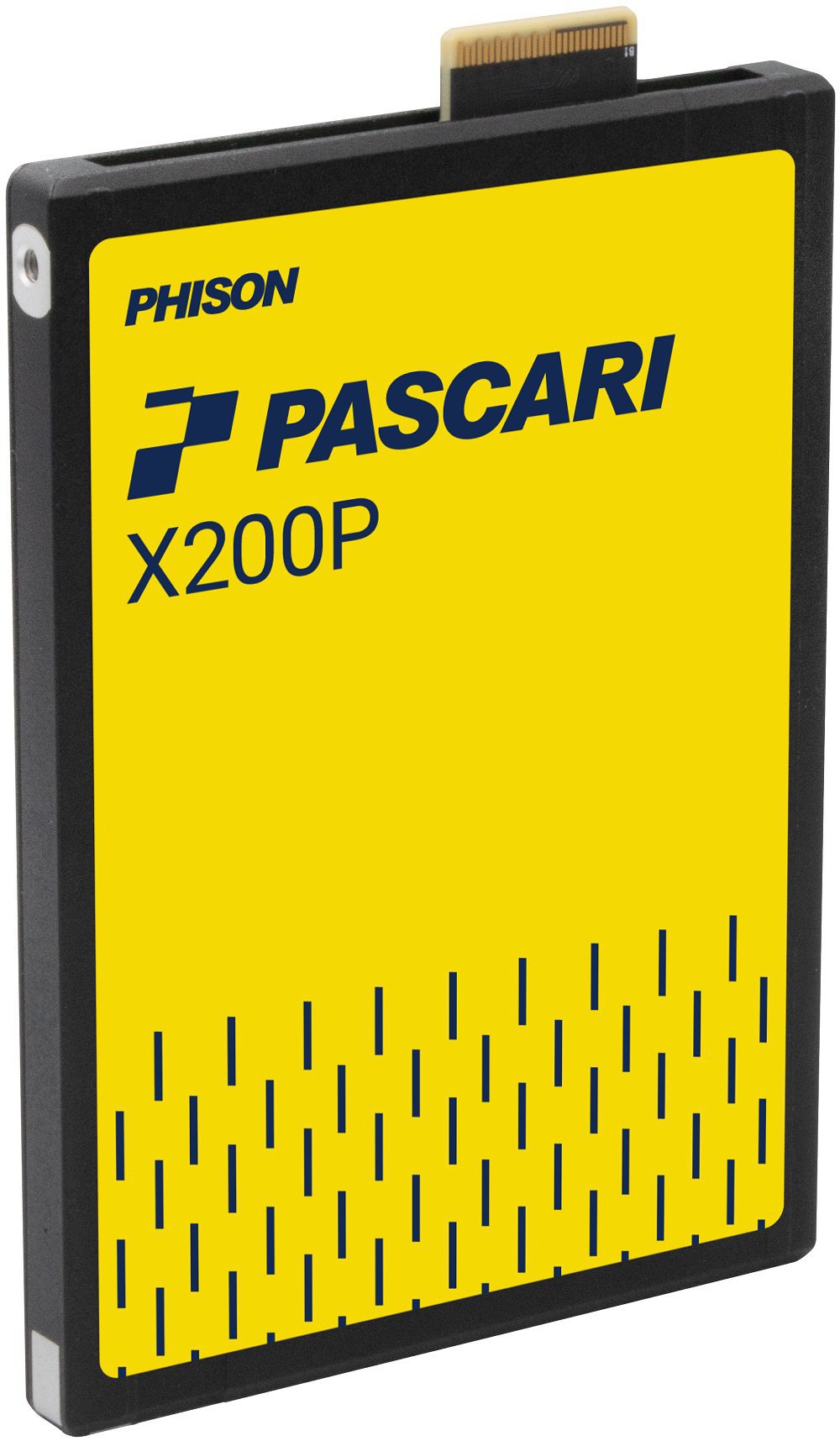

PHISON XP20DH0315T3P2116T310 Pascari X200P 15360 GB E3.S Single Port PCIe Gen5x4 Opal Security SSD
Specifications
Model Number:
Brand: PHISON
Alt Part Number(s): XP20DH0315T3P2116T310
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP20DH0315T3P2116T310
Storage Capacity: 15.36 TB
Form Factor: E3.S
Security: Opal
Drive Interface: PCI Express NVMe
Drive Interface Standard: PCIe Gen5 x4 (Single Port)
Compliance:
- PCI Express Base Specification Rev. 5.0
- NVM Express Base Specification Rev. 2.0
- NVM Express Management Interface Rev. 1.2
- PCI Express SFF-8639 Module Specification Revision 4.0, Version 1.0
Flash Type: 3D eTLC
Flash Configuration: 512 GB x 32
Maximum Sequential Read: Not specified
Maximum Sequential Write: Not specified
Power Consumption (Active): 25 W
Power Consumption (Idle): < 9 W
Inrush Current: 2.5 A
Supply Voltage:
- 12V ±10% (240mVp-p, 0–20 MHz)
- 3.3V Aux ±15%
- 12V Min Off Time: 500 ms
Endurance (DWPD): 1
Endurance (TBW): 28,032 TB
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read (3D NAND)
LBA Formats: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
Advanced Flash Management:
- ECC
- Static and Dynamic Wear Leveling
- Bad Block Management
- Deallocate (TRIM) Command
- SMART
- Over-Provisioning
- Firmware Upgrade
Temperature (Operating): 0°C to 70°C (with specified airflow)
Temperature (Non-Operating): -40°C to 85°C
Data Retention: 3 months
Physical Dimensions: 112.75 mm (L) x 76 mm (W) x 7.45 mm (H)
Weight: < 250 g
Enterprise Feature Support:
- Namespace
- Single Port
- Reservation
- Metadata Protection
- Thermal Throttling
- Power Loss Protection
- Hardware AES-XTS 256-bit Encryption
- SMBus Support
- NVMe-MI (Management Interface)
RoHS Compliance: Yes
