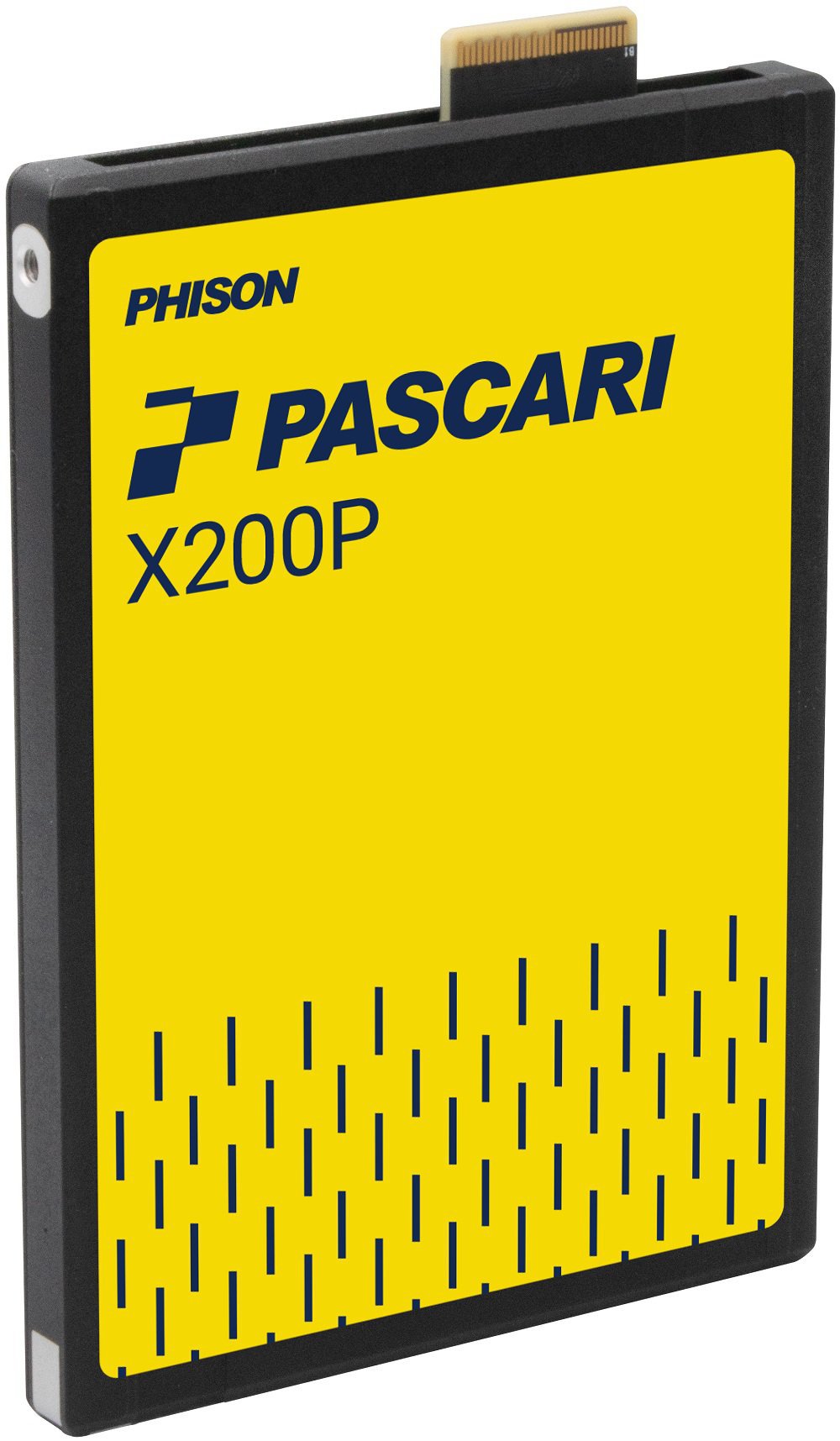

PHISON XP208H037T68P228T1910 Pascari X200P 7680 GB U.2 15mm Single Port PCIe Gen5x4 Opal Security SSD

Price:
$1,772.00
PHISONSKU: X200P-7T6U
Model Number: XP208H037T68P228T1910
Condition: New
In stock:  Yes
Price:
Sale price$1,772.00
Get Volume Pricing

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


  • Overview
  • Tech Spec
  • Additional Info

XP208H037T68P228T1910 is a PHISON solid state drive designed for high-performance enterprise and data center applications. It offers a large 7680 GB capacity, U.2 15mm form factor, and utilizes PCIe Gen5x4 interface for ultra-fast data transfer. With Opal security and advanced error reporting, it is ideal for environments requiring speed, reliability, and robust data protection.

BrandPHISON
Model NumberXP208H037T68P228T1910
Alt Part NumberXP208H037T68P228T1910
Capacity7680 GB
Form FactorU.2 15mm
InterfacePCIe Gen5x4
ProtocolsNVMe
Drive TypeSolid State Drive
Read SpeedUp to 14,000 MB/s
Write SpeedUp to 8,500 MB/s
Random ReadUp to 3,000,000 IOPS
Random WriteUp to 400,000 IOPS
SeriesPascari X200P
SecurityOpal
Single Portx4 lanes
PCIe AERAdvanced Error Reporting
Max Seq. 128KB Read/Write14,000 / 8,500 MB/s (QD=32, Workers=1)
Max 4K Random Read/Write3,000,000 / 400,000 IOPS (QD=64, Workers=8)
Latency 4K R/W (µs)60 / 10 (QD=1, Workers=1); 85 / 160 (QD=4, Workers=8); 190 / 1500 (QD=64, Workers=8)
IOPS Consistency (4KB R/W)95% / 95%
QoS (99%) 4KB R/W Latency (µs)80 / 12 (QD=1, Workers=1); 120 / 160 (QD=4, Workers=8); 450 / 1500 (QD=64, Workers=8)
Active Power25 W
Idle Power<9 W
Inrush Current2.5 A
DWPD1
TBW14,016 TB
LBAF512 / 512+8 / 4K / 4K+8 / 4K+64
MTBF2.5 million hours
UBER< 1 sector per 10^18 bits read
ECCYes
Wear LevelingStatic & Dynamic
Bad Block ManagementYes
Deallocate (TRIM)Supported
SMARTSupported
Over-ProvisioningYes
Firmware UpgradeYes
Temperature (Operating)0°C to 70°C (with specified airflow)
Temperature (Storage)-40°C to 85°C
RoHS CompliantYes
Namespace SupportYes
ReservationYes
Metadata ProtectionYes
Thermal ThrottlingYes
Power Loss ProtectionYes
AES-XTS 256-bit EncryptionYes
SMBus SupportYes
NVMe-MI SupportYes
Data Retention3 months
CompliancePCIe Base 5.0; NVMe 2.0; NVMe-MI 1.2; SFF-8639 Rev 4.0, Ver 1.0
Flash Configuration512GB x 16
Flash Type128CE, 512Gb ODP, 3D eTLC
Supply Voltage12V ±10%
12V Noise Level240 mVp-p (0–20 MHz)
12V Min Off Time500 ms
3.3V AUX±15%
Inrush Current12V 2.5 A
