Description
Overview

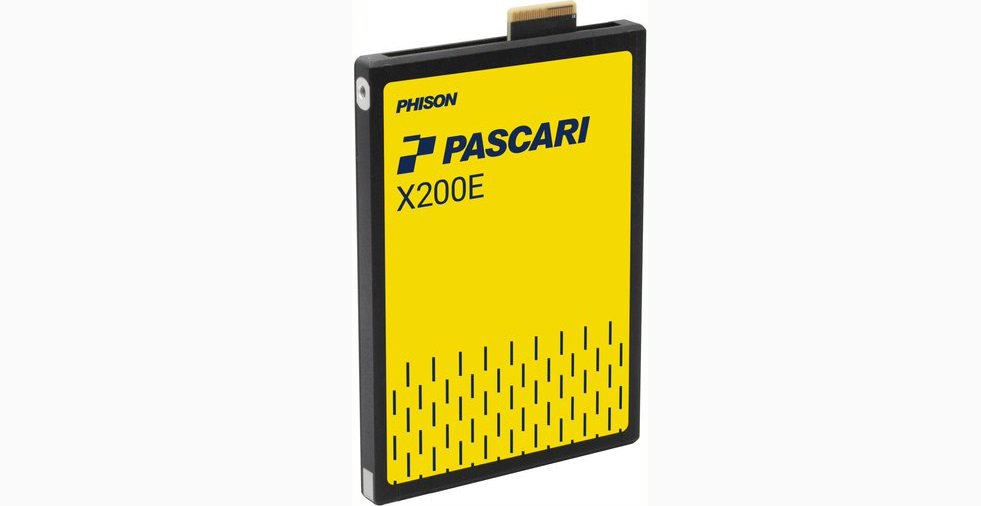

PHISON XP208H033T20E224T0910 Pascari X200E 3200 GB U.2 15mm Single Port PCIe Gen5x4 Opal Security SSD
Specifications
Model Number: XP208H033T20E224T0910
Brand: PHISON
Alt Part Number(s): XP208H033T20E224T0910
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP208H033T20E224T0910
Capacities: 3200 GB
Form Factor: U.2 15mm
Interface: Single Port
Security: Opal
PCIe Interface: PCIe Gen5x4
Single Port: x4 lanes
PCIe AER (Advanced Error Reporting): Yes
Maximum Sequential 128KB Read/Write (QD=32, Workers=1)(MB/s): 14,000/8,500
Maximum 4K Sustained Random Read/Write (QD=64, Workers=8)(IOPS): 3,000,000/800,000
Latency 4K Sustained Random Read/Write (µs): 60/10(QD=1, Workers=1); 85/130(QD=4, Workers=8); 190/1250(QD=64, Workers=8)
IOPS Consistency 4KB Sustained Random Read/Write: 95%/95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(4KB): 80/12(QD=1, Workers=1); 130/130(QD=4, Workers=8); 500/1250(QD=64, Workers=8)
DWPD: 3DWPD
TBW: 17520 TB
LBAF: 512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes
MTBF: 2.5 million hours
UBER (Uncorrectable Bit Error Rates): 3D NAND < 1 sector per 10^18 bits read
ECC: Yes
Static and Dynamic Wear Leveling: Yes
Bad Block Management: Yes
Deallocate (TRIM) Command: Yes
SMART: Yes
Over-Provision: Yes
Firmware Upgrade: Yes
Temperature Range Operation: 0°C - 70°C with specified airflow
Temperature Range Storage: -40°C - 85°C
RoHS Compliant: Yes
Namespace: Supported
Single Port: Supported
Reservation: Supported
Metadata Protection: Supported
Thermal Throttling: Supported
Power Loss Protection: Supported
Hardware AES-XTS 256-bit Encryption: Supported
Support SMBus: Yes
Support NVMe-MI (Management Interface): Yes
Data Retention: 3 months
Compliance: PCIe Express Base 5.0
NVMe Version: NVMe Express 2.0
NVMe Management Interface: NVMe Express Management Interface Rev 1.2
Module Specification: PCIe Express SFF-8639 Module Specification Revision 4.0, Version 1.0
Flash Configuration: 256GB x 16
Flash Type: 64CE, 512Gb QDP
Flash Structure: 256GB x 16
Flash Type: 3D eTLC
TBW: 17520
DWPD: 3
Supply Voltage 12v: +/- 10%
12v Noise Level: 240mVp-p, 0-20MHz
12v Minimum Off Time: 500ms
3.3v Aux: +/- 15%
Inrush Current: 12v 2.5A
