PHISON XP208H0330T7P3132T710 Pascari X200P 30.72TB U.2 PCIE Single Port ISE SSD

Price:
$7,005.00
PHISONSKU: 200P1I30TA
Model Number: XP208H0330T7P3132T710
Condition: New
In stock:  No
Price:
Sale price$7,005.00

NOTE: Availability 1-3 Weeks. Lead times may vary.

Get a Quote

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


  • Overview
  • Tech Spec
  • Additional Info

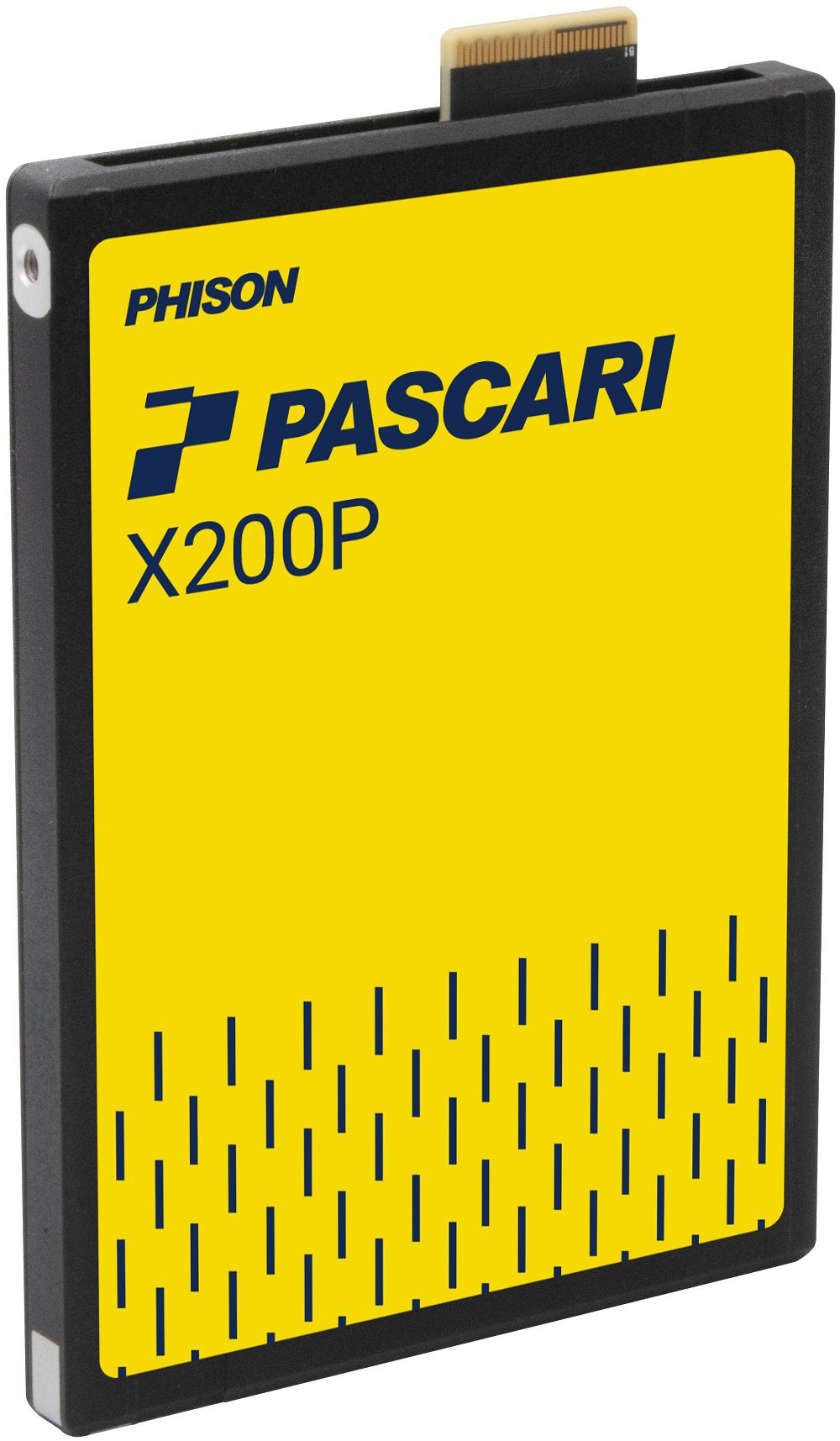

XP208H0330T7P3132T710 by PHISON is a high-capacity enterprise SSD designed for demanding data center and enterprise storage environments. It offers 30.72TB of storage in a U.2 15mm form factor with PCIe Gen5 x4 interface, delivering exceptional performance and reliability. Ideal for applications requiring fast data access, high endurance, and robust data protection.

BrandPHISON
Model NumberXP208H0330T7P3132T710
Alt Part NumberXP208H0330T7P3132T710
Capacity30.72TB
Form FactorU.2 15mm
InterfacePCIe Gen5 x4
ProtocolsNVMe
Drive TypeEnterprise
Read SpeedUp to 14,000 MB/s
Write SpeedUp to 7,400 MB/s
Random ReadUp to 2,300K IOPS
Random WriteUp to 265K IOPS
Product Type:Solid State Drive
Port Configuration:Single Port x4 lanes
Advanced Error Reporting:PCIe AER (Advanced Error Reporting)
Compliance:PCI Express Base Specification Rev. 5.0
NVMe Specification:NVM Express Base Specification Rev. 2.0
NVMe Management Interface:NVM Express Management Interface Rev 1.2
SFF Module Specification:PCI Express SFF-8639 Module Specification Revision 5.0, Version 0.7
Power Consumption 128K Active Read:21 W
Power Consumption 128K Write:24 W
Power Consumption 4KB Active Read:23 W
Power Consumption 4KB Active Write:25 W
Power Consumption 4KB 70 / 30 Random Read / Write:24 W
Idle Power:5 W
MTBF:2.5 million hours
UBER:< 1 sector per 10^18 bits read
DWPD:1
TBW:56064 TB
Operating Temperature:0°C - 70°C with specified airflow
Non-operating Temperature:-40°C - 85°C
Shock Operating:500G, 2 ms
Shock Non-operating:1000G, 0.5 ms
Vibration Operating:2.17 Grms (7 - 800 Hz)
Vibration Non-operating:16.3 Grms (10 - 2000 Hz)
Drop:80 cm, 6 surfaces
Bending:50 N, 60 s
Certifications and Declarations:CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Ecological Compliance:RoHS compliant
LBA Formats:512 / 512+8 / 4K / 4K 8 / 4K+64 Bytes
Namespaces:128
Port Type:Single Port
Reservation Support:Yes
Metadata Protection:Yes
Thermal Throttling:Yes
Power Loss Protection:Yes
Encryption:Hardware AES-XTS 256-bit
SMBus Support:Yes
