PHISON XP208H0325T6E2132T710 Pascari X200E 25600 GB U.2 15mm Single Port PCIe Gen5x4 Opal Security SSD

Price:
$6,822.00
PHISONSKU: X200E-25T6
Model Number: XP208H0325T6E2132T710
Condition: New
In stock:  No
Price:
Sale price$6,822.00

NOTE: Availability 1-3 Weeks. Lead times may vary.

Get a Quote

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


  • Overview
  • Tech Spec
  • Additional Info

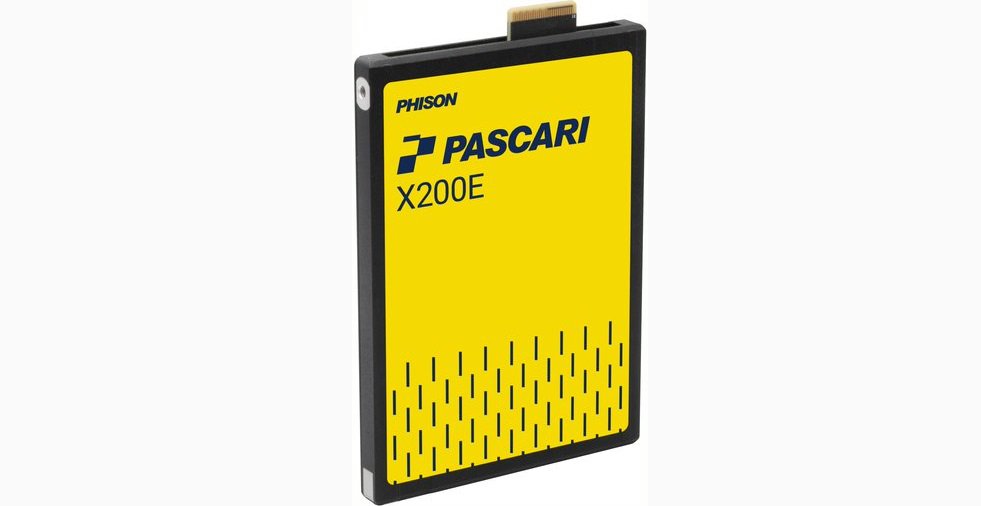

XP208H0325T6E2132T710 by PHISON is a high-capacity enterprise SSD designed for demanding data center and enterprise storage applications. With a 25.6TB capacity, U.2 15mm form factor, and PCIe Gen5x4 interface, it delivers fast performance and robust security features including Opal support. Ideal for environments requiring high endurance, reliability, and advanced data protection.

BrandPHISON
Model NumberXP208H0325T6E2132T710
Alt Part NumberXP208H0325T6E2132T710
Capacity25600 GB
Form FactorU.2 15mm
InterfacePCIe Gen5x4
ProtocolsNVMe
Drive TypeEnterprise
SecurityOpal
Single Portx4 lanes
PCIe AER (Advanced Error Reporting)Yes
DWPD3DWPD
TBW140160 TB
LBAF512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes
MTBF2.5 million hours
UBER (Uncorrectable Bit Error Rates)3D NAND < 1 sector per 10^18 bits read
ECCYes
Static and Dynamic Wear LevelingYes
Bad Block ManagementYes
Deallocate (TRIM) CommandYes
SMARTYes
Over-ProvisionYes
Firmware UpgradeYes
Temperature Range Operation0°C - 70°C with specified airflow
Temperature Range Storage-40°C - 85°C
RoHS CompliantYes
NamespaceSupported
ReservationSupported
Metadata ProtectionSupported
Thermal ThrottlingSupported
Power Loss ProtectionSupported
Hardware AES-XTS 256-bit EncryptionSupported
Support SMBusYes
Support NVMe-MI (Management Interface)Yes
Data Retention3 months
CompliancePCIe Express Base 5.0
NVMe VersionNVMe Express 2.0
NVMe Management InterfaceNVMe Express Management Interface Rev 1.2
Module SpecificationPCIe Express SFF-8639 Module Specification Revision 4.0, Version 1.0
Flash Type128CE, 512Gb HDP
Flash Type3D eTLC
Supply Voltage 12v+/- 10%
12v Noise Level240mVp-p, 0-20MHz
12v Minimum Off Time500ms
3.3v Aux+/- 15%
Inrush Current12v 2.5A
