Description
Overview

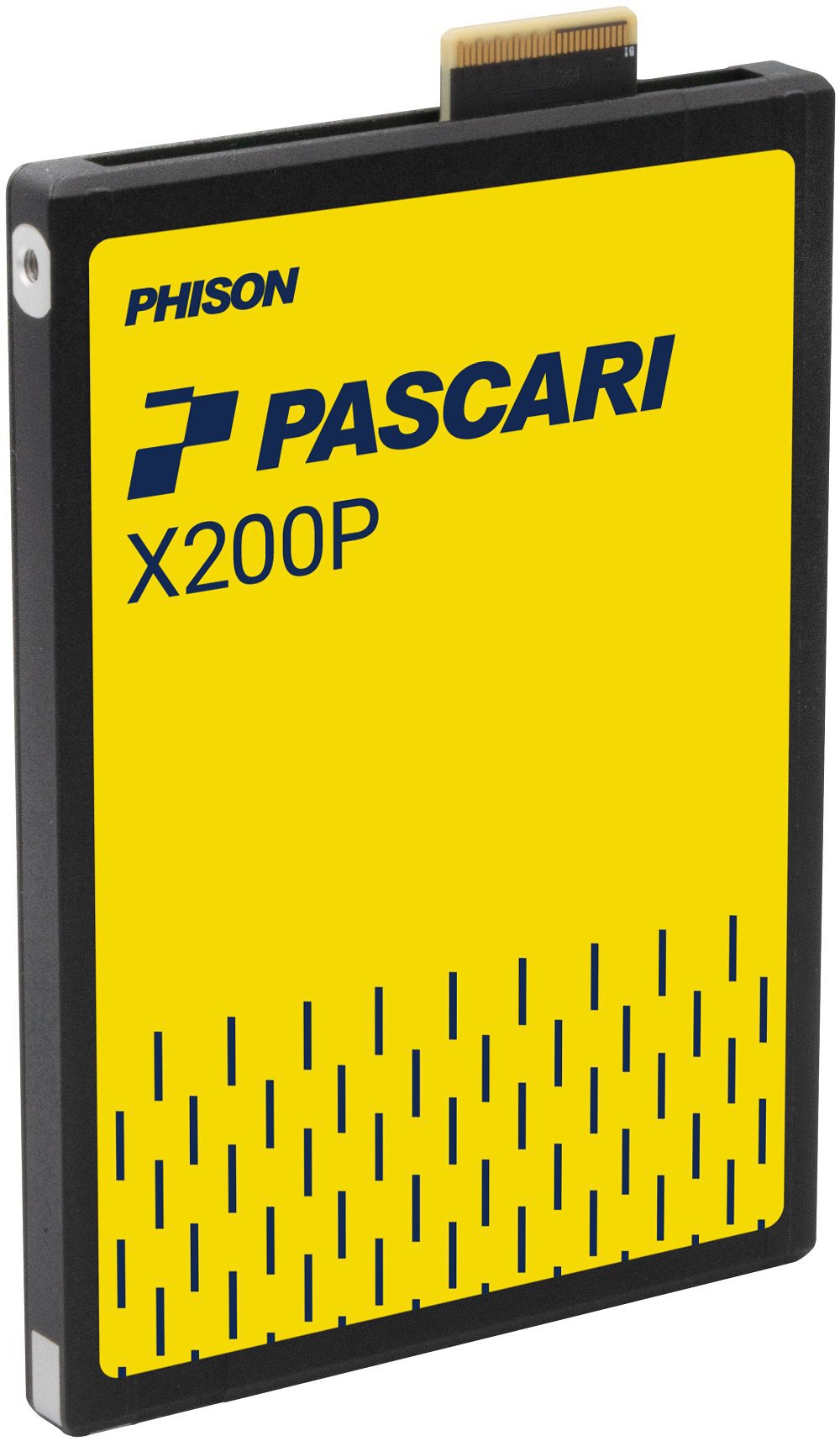

PHISON XP208H0315T3P3116T310 Pascari X200P 15.36TB U.2 15mm PCIE 5.0 Single Port ISE SSD
Specifications
Model Number: XP208H0315T3P3116T310
Brand: PHISON
Alt Part Number(s): XP208H0315T3P3116T310
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP208H0315T3P3116T310
Capacity: 15.36TB
Form Factor: U.2 15mm
Interface: PCIe Gen5 x4
Port: Single Port x4 lanes
PCIe AER: Advanced Error Reporting
PCIe Compliance: PCI Express Base Specification Rev. 5.0
NVMe Compliance: NVMe Base Specification Rev. 2.0
NVMe Management Interface: Rev. 1.2
Module Specification: PCIe SFF-8639 Rev. 5.0, Version 0.7
Sequential Read: up to 14,800MB/s
Sequential Write: up to 8,500MB/s
Random Read (IOPS): up to 2,800K
Random Write (IOPS): up to 420K
128K Active Read (Avg. RMS): 19W
128K Active Write (Avg. RMS): 23W
4KB Active Read (Avg. RMS): 21W
4KB Active Write (Avg. RMS): 24W
4KB 70/30 Random Read/Write (Avg. RMS): 23W
Idle Power: 5W
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
DWPD: 1
TBW: 28.032TB
Operating Temp (°C): 0 - 70 (with specified airflow)
Non-Operating Temp (°C): -40 - 85
Shock (Operating): 500G, 2ms
Shock (Non-Operating): 1000G, 0.5ms
Vibration (Operating): 2.17 Grms (7 - 800 Hz)
Vibration (Non-Operating): 16.3 Grms (10 - 2000 Hz)
Drop: 80cm, 6 surfaces
Bending: 50N, 60s
Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
RoHS Compliant: Yes
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
Namespaces: 128
Single Port Support: Yes
Reservation Support: Yes
Metadata Protection: Yes
Thermal Throttling: Yes
Power Loss Protection: Yes
Encryption: Hardware AES-XTS 256-bit
SMBus Support: Yes
