Description
Overview

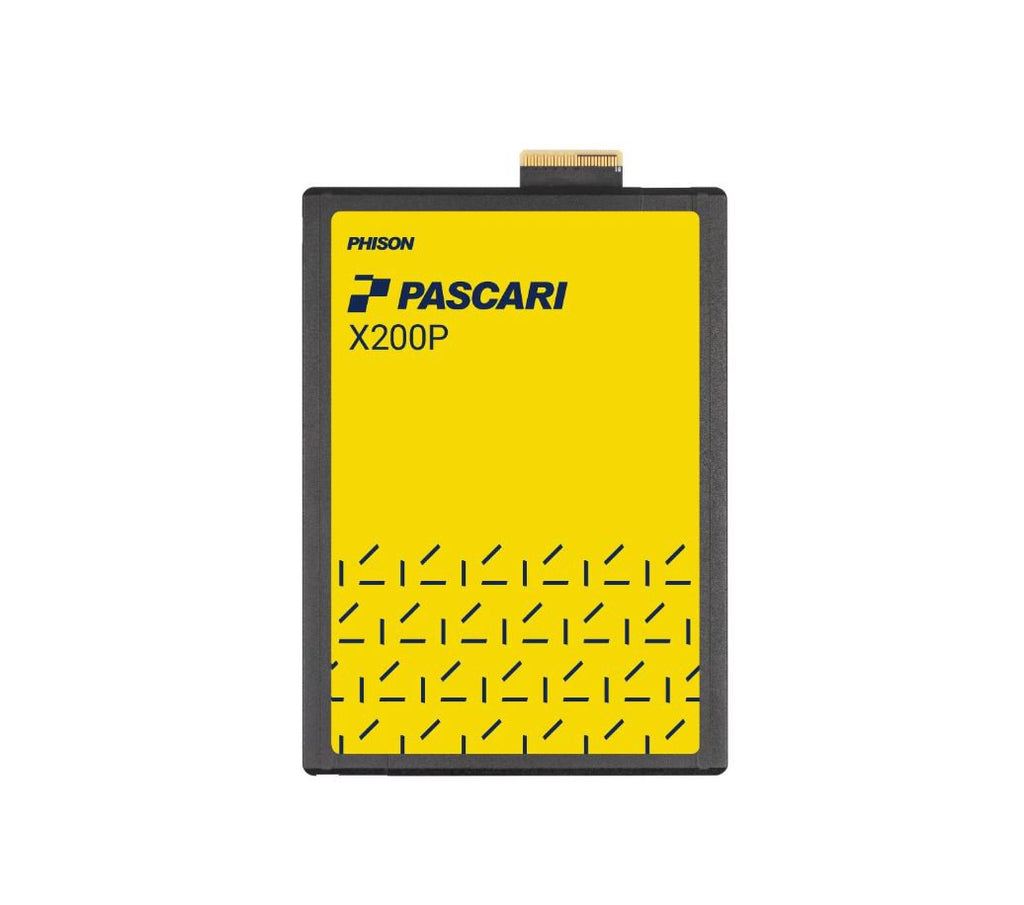

PHISON XP208H023T84P324T0910 Pascari X200P 3.84TB U.2 15mm PCIE 5.0 Single Port ISE Solid State Drive
Specifications
Model Number: XP208H023T84P324T0910
Brand: PHISON
Alt Part Number(s): XP208H023T84P324T0910
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP208H023T84P324T0910
Storage Capacity: 3.84 TB
Form Factor: U.2 15mm
Drive Interface: PCI Express NVMe
Drive Interface Standard: PCIe Gen5 x4 (Single Port)
NVMe Version: 2.0
Compliance:
- PCI Express Base Specification Rev. 5.0
- NVM Express Base Specification Rev. 2.0
- NVM Express Management Interface Rev. 1.2
- PCI Express SFF-8639 Module Specification Rev. 5.0, Version 0.7
Maximum Sequential Read: 14,800 MB/s
Maximum Sequential Write: 8,600 MB/s
Random 4KB Read: 3,300,000 IOPS
Random 4KB Write: 320,000 IOPS
Power Consumption (128K Read, Avg. RMS): 17 W
Power Consumption (128K Write, Avg. RMS): 21 W
Power Consumption (4KB Read, Avg. RMS): 17 W
Power Consumption (4KB Write, Avg. RMS): 22 W
Power Consumption (4KB 70/30 R/W, Avg. RMS): 18 W
Power Consumption (Idle): 5 W
Endurance (DWPD): 1
Endurance (TBW): 7,008 TB
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
Operating Temperature: 0°C to 70°C (with specified airflow)
Non-Operating Temperature: -40°C to 85°C
Shock (Operating): 500G, 2ms
Shock (Non-Operating): 1000G, 0.5ms
Vibration (Operating): 2.17 Grms (7 - 800 Hz)
Vibration (Non-Operating): 16.3 Grms (10 - 2000 Hz)
Drop Tolerance: 80 cm, 6 surfaces
Bending Resistance: 50 N, 60s
Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Environmental Compliance: RoHS Compliant
Features:
- Power Loss Protection
- Hardware AES-XTS 256-bit Encryption
- Thermal Throttling
- Metadata Protection
- Reservation
- LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
- 128 Namespaces
- Single Port
- SMBus Support
