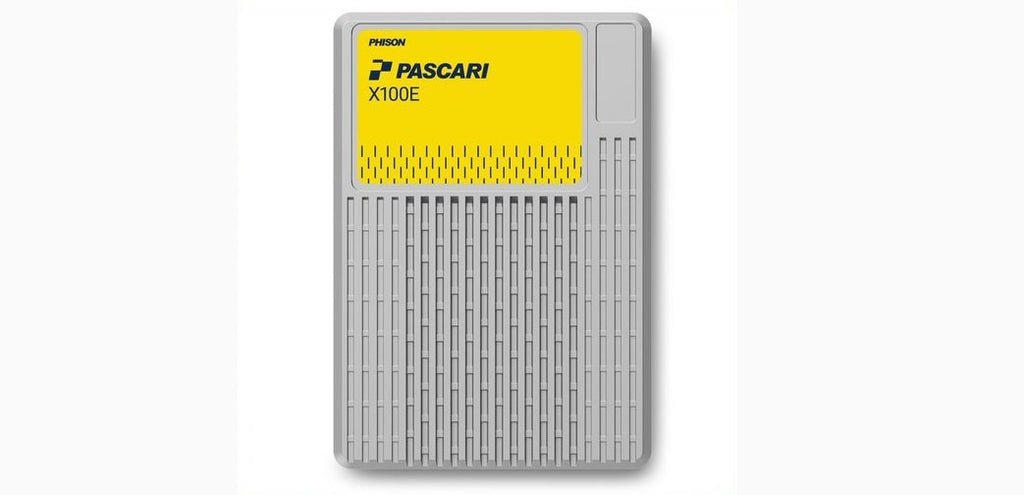

PHISON XP106H016T40E028T1900 Pascari X100E 6.4 TB U.2 Single Port PCIe Gen4x4 Non-Opal Security SSD

Price:
$1,404.00
PHISONSKU: X100E-6T4
Model Number: XP106H016T40E028T1900
Condition: New
In stock:  No
Price:
Sale price$1,404.00

NOTE: Availability 1-3 Weeks. Lead times may vary.

Get a Quote

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


  • Overview
  • Tech Spec
  • Additional Info

XP106H016T40E028T1900 by PHISON is a high-performance enterprise SSD designed for demanding data center and server environments. It offers fast PCIe Gen4x4 interface speeds, robust endurance, and advanced reliability features. Ideal for applications requiring high throughput, low latency, and secure data storage.

BrandPHISON
Model NumberXP106H016T40E028T1900
Alt Part NumberXP106H016T40E028T1900
Capacity6.4 TB
Form FactorU.2
InterfacePCIe Gen4x4
ProtocolsNVMe
Drive TypeEnterprise
Read Speed7,000 MB/s
Write Speed6,800 MB/s
Random ReadUp to 1,600,000 IOPS
Random WriteUp to 450,000 IOPS
SecurityNon-Opal
PCIe InterfacePCIe Gen4x4, Single Port x4 lanes, PCIe AER (Advanced Error Reporting)
DWPD3DWPD
TBW35040 TB
LBAF512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes
MTBF2,500,000 hours
UBER (Uncorrectable Bit Error Rates)< 1 sector per 10^18 bits read
Advanced Flash ManagementECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade
Temperature RangeOperation: 0°C - 70°C with specified airflow; Storage: -40°C - 85°C
RoHS compliantYes
Enterprise Features Support ListNamespace: Supported; Single Port: Supported; Reservation: Supported; Metadata Protection Thermal throttling: Supported; Power Loss Protection: Supported; Hardware AES-XTS 256-bit Encryption: Supported
Support SMBusYes
Support NVMe-MI (Management Interface)Yes
Data Retention3 months
CompliancePCIe Express Base 4.0, NVMe 1.4, NVMe Management Interface Rev 1.1
Supply Voltage12v: +/- 10%; 12v noise level: 240mVp-p, 0-20MHz; 12v min off time: 500ms; 3.3v aux: +/- 15%
Inrush current12v 1.5A
