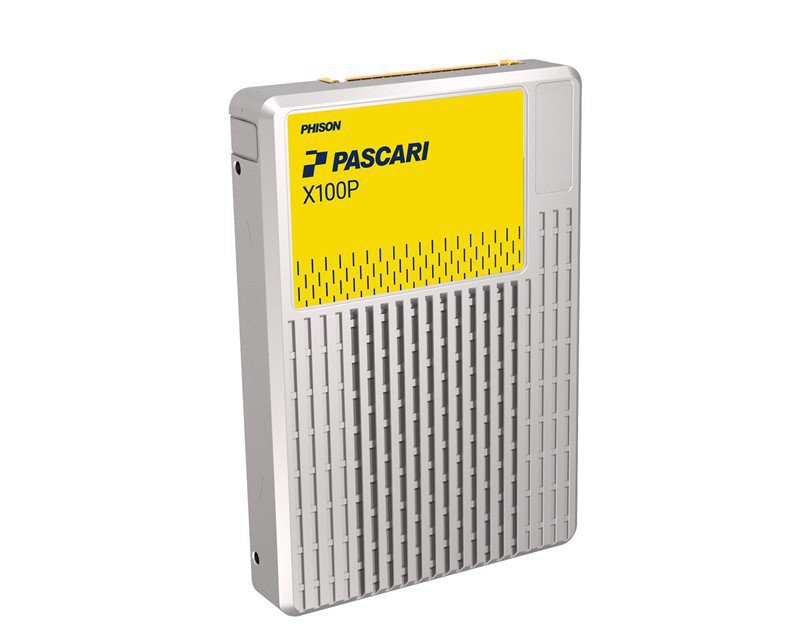

PHISON XP106H001T92P022T0400 Pascari X100P 1.92 TB U.2 Single Port PCIe Gen4x4 Non-Opal Security SSD

Price:
$432.00
PHISONSKU: 100P1NS1T9
Model Number: XP106H001T92P022T0400
Condition: New
In stock:  No
Price:
Sale price$432.00
Get a Quote

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


  • Overview
  • Tech Spec
  • Additional Info

XP106H001T92P022T0400 is a PHISON solid state drive designed for high-performance enterprise environments. It offers a 1.92TB capacity with a U.2 form factor and PCIe Gen4x4 interface, delivering fast data transfer speeds and reliable storage. Ideal for data centers and demanding applications requiring consistent performance and advanced flash management.

BrandPHISON
Model NumberXP106H001T92P022T0400
Alt Part NumberXP106H001T92P022T0400
Capacity1.92 TB
Form FactorU.2
InterfacePCIe Gen4x4
ProtocolsNVMe
Drive TypeEnterprise
Read SpeedUp to 7000 MB/s
Write SpeedUp to 3500 MB/s
Random ReadUp to 1,600,000 IOPS
Random WriteUp to 95,000 IOPS
Product Type:Solid State Drive
Security:Non-Opal
PCIe Interface:Single Port x4 lanes, PCIe AER (Advanced Error Reporting)
Performance:Maximum Sequential Read / Write: 7000MB/s / 3500MB/s; Maximum Random Read / Write: 1600KIOPS / 95KIOPS; Sustained Random Read / Write Latency (µs): 110/15 (QD=1, Workers=1); 120/400 (QD=32, Workers=1); 450/5000 (QD=64, Workers=8); IOPS Consistency: 95%; QoS (Quality of Service, 99%) Read / Write: 100/12 (QD=1, Workers=1); 160/350 (QD=32, Workers=1); 1000/5700 (QD=64, Workers=8)
Power Consumption:Random Read/Write (Typ): 12.4 / 11.9 W; Sequential Read/Write (Typ): 10.1 / 12.8 W; Inrush Current: 1.5A; Idle Power (Typ): 5.46 W
DWPD:1DWPD
TBW:3504 TB
LBAF:512 / 512+ 8 / 4K / 4K + 8 / 4K + 64 Bytes
MTBF:2,500,000 hours
UBER (Uncorrectable Bit Error Rates):< 1 sector per 10^18 bits read
Advanced Flash Management:ECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade
Temperature Range:Operation: 0 °C - 70 °C with specified airflow; Storage: -40 °C - 85 °C
RoHS compliant
Enterprise Features Support List
Namespace:Supported
Single Port:Supported
Reservation:Supported
Metadata Protection Thermal throttling:Supported
Power Loss Protection:Supported
Hardware AES-XTS 256-bit Encryption:Supported
Support SMBus:Yes
Support NVMe-MI (Management Interface):Yes
Data Retention:3 months
Compliance:PCIe Express Base 4.0, NVMe 1.4, NVMe Management Interface Rev 1.1
