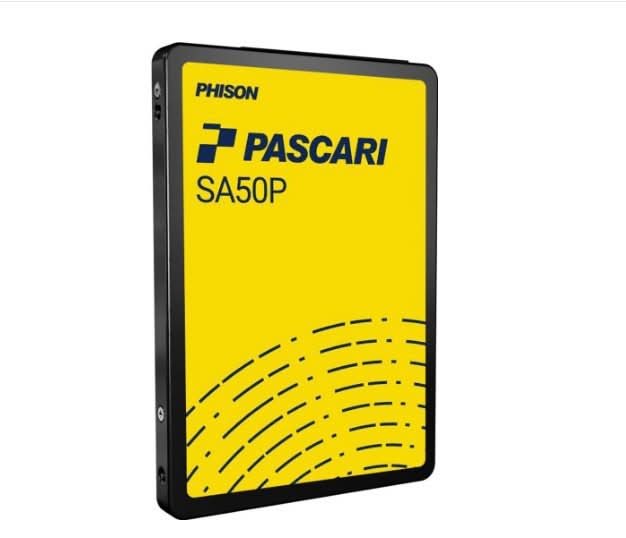

PHISON S1201K001T92P022T3000 Pascari SA50P 1920GB 2.5in SATA III Non-SED SSD
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
Overview
PHISON S1201K001T92P022T3000 Pascari SA50P 1920GB 2.5in SATA III Non-SED SSD
Specifications
Model Number:S1201K001T92P022T3000
Brand: PHISON
Alt Part Number(s):S1201K001T92P022T3000
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model:S1201K001T92P022T3000
Capacity: 1920GB
Security: Non-SED
Form Factor: 2.5" SSD
SATA Interface: SATA Gen3
Compliance: Serial ATA Revision 3.2
Performance
128KB Sequential Read (QD=32, Job=1): 530 MB/s
128KB Sequential Write (QD=32, Job=1): 500 MB/s
4KB Random Read (QD=32, Job=1): 98K IOPS
4KB Random Write (QD=32, Job=1): 40K IOPS
Power Consumption
128KB Sequential Read (Average RMS, W): 2.2
128KB Sequential Write (Average RMS, W): 3.1
4KB Random Read (Average RMS, W): 2.4
4KB Random Write (Average RMS, W): 2.7
4KB 70/30 Random Read/Write (Average RMS, W): 2.4
Idle: 1.4 W
Endurance/Reliability
MTBF: 2.0 million hours
UBER: < 1 sector per 10^17 bits Read
DWPD: 1
TBW: 3504TB
Environmental Specifications
Temperature Range:
Operating: 0°C ~ 70°C
Non-operating: -40°C ~ 85°C
Shock:
Operating: 1000G, 0.5ms
Non-operating: 1500G, 0.5ms
Vibration:
Operating: 3.08Grms (7 - 800Hz)
Non-operating: 20G (20 - 2000Hz)
Drop: 80cm height
Bending: 50N force
Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Compliant: RoHS compliant
Feature Support
Hardware Based Power Loss Data Protection
Thermal throttling
End-to-End Data Path Protection
TCG Opal 2.0
*
