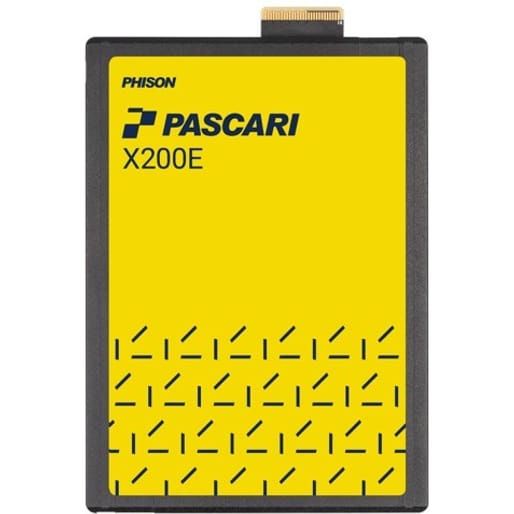

PHISON Pascari X200E XP208H021T60E222T0410 1.6TB U.2 PCIe 5.0 x4 NVMe 2.0 3D TLC Enterprise SSD
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
PHISON XP208H021T60E222T0410 is a 1.6 TB U.2 enterprise SSD with a PCIe 5.0 x4 interface and NVMe 2.0 support, offering blazing sequential read/write speeds of 14,800 MB/s and 4,300 MB/s. It delivers ultra-high performance with 2.4M IOPS random read, 390K IOPS random write, very low latency (60 µs read, 10 µs write), 3 DWPD endurance, and 2.5 million hours MTBF for enterprise reliability.
Specifications
Model Number: XP208H021T60E222T0410
Brand: PHISON
Alt Part Number(s): XP208H021T60E222T0410
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP208H021T60E222T0410
Form Factor: U.2
Capacity: 1.6 TB
Interface: PCIe 5.0 1x4
NVMe: 2.0
NAND Flash: 3D TLC
Sequential Read (MB/s): 14,800
Sequential Write (MB/s): 4,300
4K Random Read (IOPS): 2,400K
4K Random Write (IOPS): 390K
Read Latency (Typ., µs): 60
Write Latency (Typ., µs): 10
Active Power (W): 16
Idle Power (W): 5
DWPD: 3
UBER: < 1 sector per 10^18 bits read
MTBF (million hours): 2.5
Operating Temperature (°C): 0 - 70
Non-Operating Temperature (°C): -40 - 85
