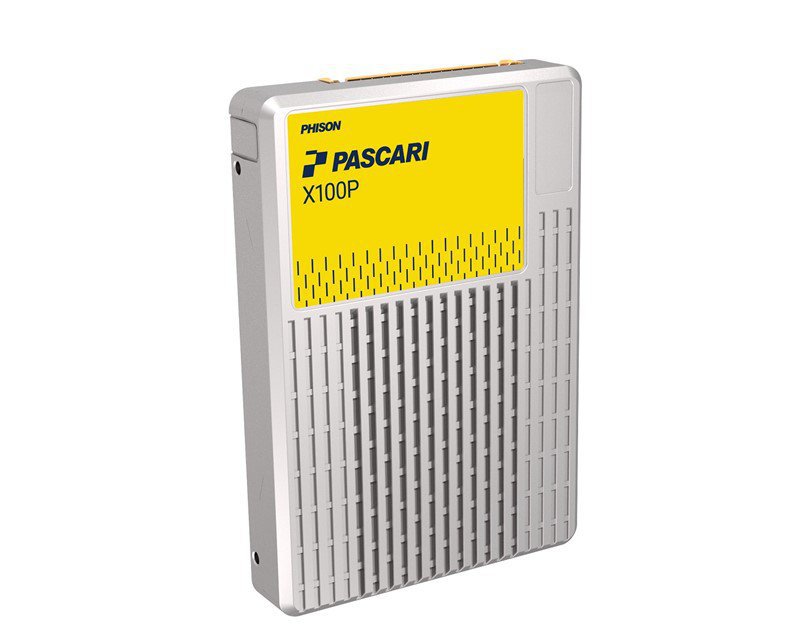

PHISON XX106H013T84P224T0900 Pascari X100P 3.84TB U.2 Dual Port PCIe Gen4x4 SED SSD

Price:
$871.00
PHISONSKU: 100P1SD3T8
Model Number: XX106H013T84P224T0900
Condition: New
In stock:  No
Price:
Sale price$871.00

NOTE: Availability 1-3 Weeks. Lead times may vary.

Get a Quote

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


  • Overview
  • Tech Spec
  • Additional Info

XX106H013T84P224T0900 is a PHISON enterprise-class SSD designed for high-performance storage applications. It offers 3.84TB capacity, U.2 form factor, and PCIe Gen4x4 interface with dual port support for enhanced reliability and speed. Ideal for data centers and demanding workloads requiring fast, secure, and resilient storage.

BrandPHISON
Model NumberXX106H013T84P224T0900
Alt Part NumberXX106H013T84P224T0900
Capacity3.84TB
Form FactorU.2
InterfacePCIe Gen4x4
ProtocolsNVMe
Drive TypeEnterprise
Read Speed7400MB/s
Write Speed6900MB/s
Random Read1,750K IOPS
Random Write195K IOPS
SeriesPascari X100P
SecuritySED
PCIe InterfacePCIe Gen4x4
Port ConfigurationDual Port x2 lanes
PCIe AERAdvanced Error Reporting
CompliancePCI Express Base Specification Rev. 4.0, NVM Express Base Specification Rev. 1.4, NVM Express Management Interface Rev 1.1, PCI Express SFF-8639 Module Specification Revision 4.0 Version 1.0, SFF-TA-1001 r1.1
Power - 128K Sequential Read (Average RMS)11W
Power - 128K Sequential Write (Average RMS)18W
Power - 4KB Random Read (Average RMS)13W
Power - 4KB Random Write (Average RMS)15W
Power - 4KB 70/30 Random R/W (Average RMS)15W
Idle Power (Average RMS)5.6W
DWPD1
TBW7008TB
MTBF2.5 million hours
UBER< 1 sector per 10^18 bits read
Operating Temperature0°C – 70°C with specified airflow
Non-Operating Temperature-40°C – 85°C
Shock (Operating)500G, 2ms
Shock (Non-Operating)1000G, 0.5ms
Vibration (Operating)2.17 Grms (200–2000Hz)
Vibration (Non-Operating)16.3 Grms (10–2000Hz)
Drop80cm height
Bending50N
CertificationsCE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
RoHS ComplianceYes
LBAF512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
Namespaces64
Dual PortSupported
ReservationSupported
Metadata ProtectionSupported
Thermal ThrottlingSupported
Power Loss ProtectionSupported
Hardware EncryptionAES-XTS 256-bit
SMBus SupportYes
