Description
Overview

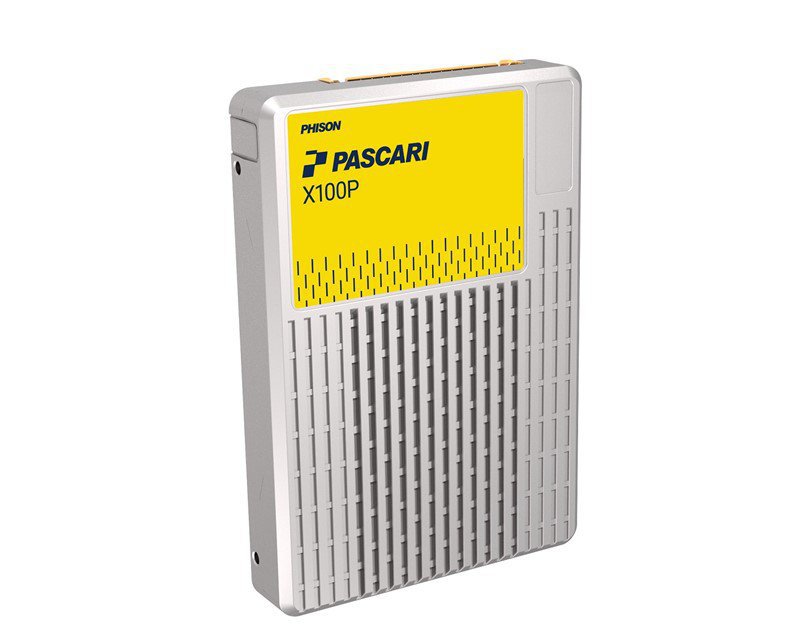

PHISON XX106H007T68P228T1900 Pascari X100P 7.68TB U.2 Dual Port PCIe Gen4x4 Opal SSD
Specifications
Model Number: XX106H007T68P228T1900
Brand: PHISON
Alt Part Number(s): XX106H007T68P228T1900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H007T68P228T1900
Capacity 7.68TB
Form Factor U.2
Security Opal
PCIe Interface PCIe Gen4x4
Port Configuration Dual Port x2 lanes
PCIe AER Advanced Error Reporting
Maximum Sequential Read 7000MB/s
Maximum Sequential Write 6800MB/s
Maximum Random Read 1600K IOPS
Maximum Random Write 180K IOPS
Sustained Random Read/Write Latency 100/15 µs (QD=1, Workers=1); 110/300 µs (QD=32, Workers=1); 450/3800 µs (QD=64, Workers=8)
IOPS Consistency 95%
QoS (99%) Read/Write 100/12 µs (QD=1, Workers=1); 130/200 µs (QD=32, Workers=1); 600/3200 µs (QD=64, Workers=8)
Random Read Power (Typical) 15.7W
Random Write Power (Typical) 17.4W
Sequential Read Power (Typical) 11.6W
Sequential Write Power (Typical) 19.1W
Inrush Current 1.5A
Idle Power 5.75W
DWPD 1
TBW 14,016TB
LBAF 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF 2,500,000 hours
UBER < 1 sector per 10^18 bits read
ECC Yes
Wear Leveling Static and Dynamic
Bad Block Management Yes
Deallocate (TRIM) Command Supported
SMART Supported
Over-Provisioning Supported
Firmware Upgrade Supported
Operating Temperature 0°C – 70°C with specified airflow
Storage Temperature -40°C – 85°C
RoHS Compliance Yes
Namespaces Supported
Dual Port Supported
Reservation Supported
Metadata Protection Supported
Thermal Throttling Supported
Power Loss Protection Supported
Hardware Encryption AES-XTS 256-bit
SMBus Support Yes
NVMe-MI Support Yes
Compliance PCIe Express Base 4.0, NVMe 1.4, NVMe Management Interface Rev 1.1
