Description
Overview

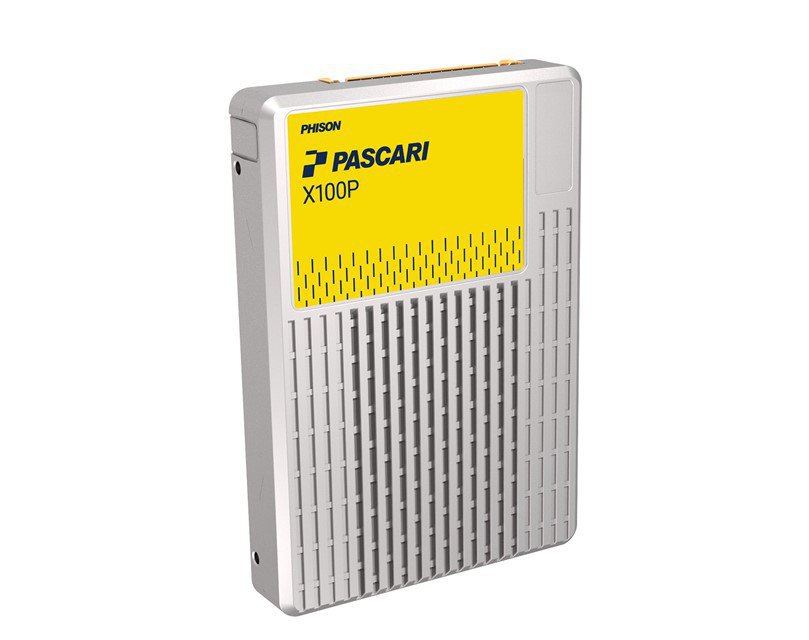

PHISON XX106H003T84P224T0900 Pascari X100P 3.84TB U.2 Dual Port PCIe Gen4x4 Opal SSD
Specifications
Model Number: XX106H003T84P224T0900
Brand: PHISON
Alt Part Number(s): XX106H003T84P224T0900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H003T84P224T0900
Capacity 3.84TB
Form Factor U.2
Security Opal
PCIe Interface PCIe Gen4x4
Port Configuration Dual Port x2 lanes
PCIe AER Advanced Error Reporting
Maximum Sequential Read / Write 7000MB/s / 6700MB/s
Maximum Random Read / Write 1600K IOPS / 170K IOPS
Sustained Random Read / Write Latency (µs) 100/15 (QD=1, Workers=1); 110/300 (QD=32, Workers=1); 450/4000 (QD=64, Workers=8)
IOPS Consistency 95%
QoS (99%) Read / Write (µs) 100/12 (QD=1, Workers=1); 140/200 (QD=32, Workers=1); 600/3200 (QD=64, Workers=8)
Power - Random Read / Write (Typical) 13.3W / 15.5W
Power - Sequential Read / Write (Typical) 10.6W / 17.9W
Inrush Current 1.5A
Idle Power (Typical) 5.80W
DWPD 1DWPD
TBW 7008TB
LBAF 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF 2,500,000 hours
UBER < 1 sector per 10^18 bits read
Advanced Flash Management ECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade
Operating Temperature 0°C – 70°C with specified airflow
Storage Temperature -40°C – 85°C
RoHS Compliance Yes
Namespaces Supported
Dual Port Supported
Reservation Supported
Metadata Protection Supported
Thermal Throttling Supported
Power Loss Protection Supported
Hardware Encryption AES-XTS 256-bit
SMBus Support Yes
NVMe-MI Support Yes
Data Retention 3 months
Compliance PCIe Express Base 4.0, NVMe 1.4, NVMe Management Interface Rev 1.1
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
