Description
Overview

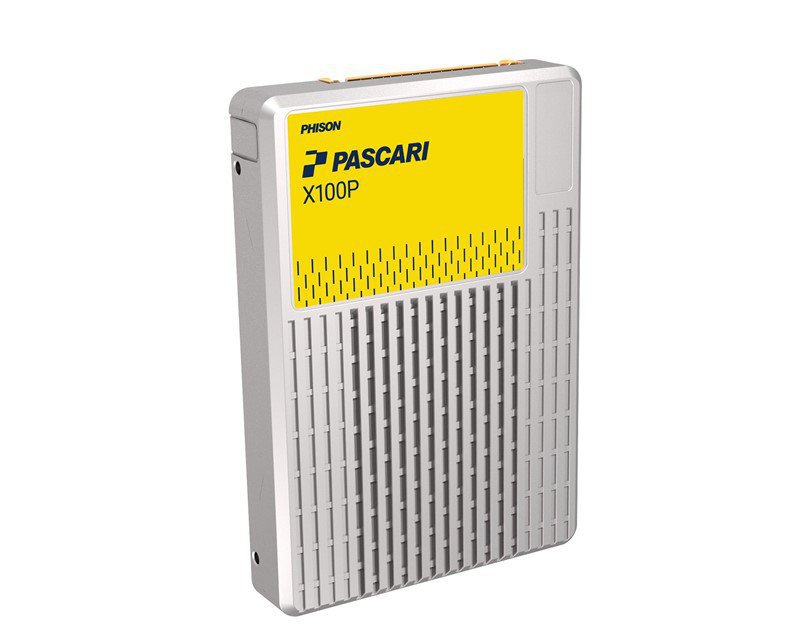

PHISON XX106H003T84P024T0900 Pascari X100P 3.84 TB U.2 Dual Port PCIe Gen4x4 Non-Opal SSD
Specifications
Model Number: XX106H003T84P024T0900
Brand: PHISON
Alt Part Number(s): XX106H003T84P024T0900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H003T84P024T0900
Capacities: 3.84 TB
Form Factor: U.2
Security: Non-Opal
PCIe Interface
PCIe Gen4x4
Dual Port: x2 lanes
PCIe AER: Advanced Error Reporting
Maximum Sequential Read / Write: 7000MB/s / 6700MB/s
Maximum Random Read / Write: 1600KIOPS / 170KIOPS
Sustained Random Read / Write Latency (µs): 100/15 (QD=1, Workers=1); 110/300 (QD=32, Workers=1); 450/4000 (QD=64, Workers=8)
IOPS Consistency: 95%
QoS (99%) Read / Write (µs): 100/12 (QD=1, Workers=1); 140/200 (QD=32, Workers=1); 600/3200 (QD=64, Workers=8)
Random Read/Write Power (Typ): 13.3 W / 15.5 W
Sequential Read/Write Power (Typ): 10.6 W / 17.9 W
Inrush Current: 1.5A
Idle Power (Typ): 5.80 W
DWPD: 1 DWPD
TBW: 7008 TB
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF: 2,500,000 hours
UBER: < 1 sector per 10^18 bits read
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade
Operation Temperature: 0 °C - 70 °C with specified airflow
Storage Temperature: -40 °C - 85 °C
RoHS Compliant
Namespace
Dual Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
Support SMBus
Support NVMe-MI (Management Interface)
Data Retention: 3 months
Compliance: PCIe Express Base 4.0
NVMe: 1.4
NVMe Management Interface: Rev 1.1
