Description
Overview

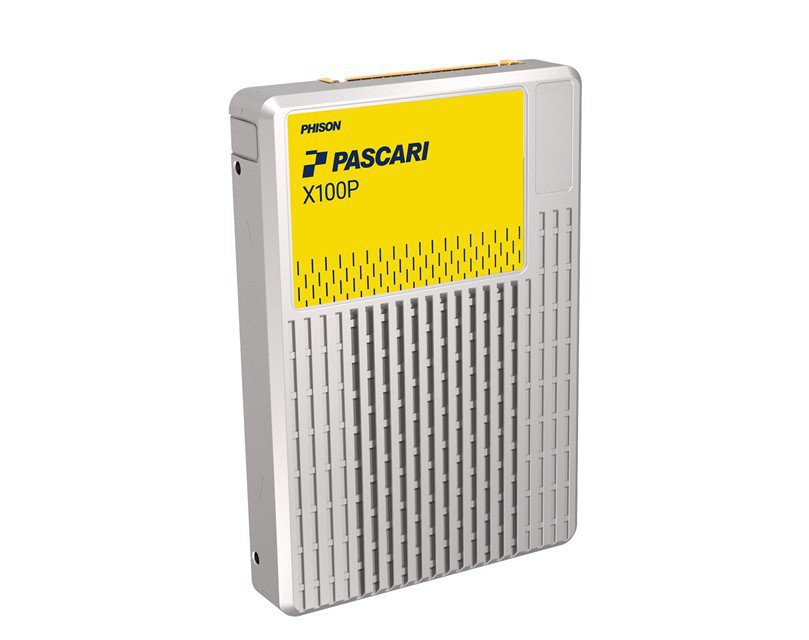

PHISON XX106H0015T3P2116T300 Pascari X100P 15.36TB U.2 Dual Port PCIe Gen4x4 Opal SSD
Specifications
Model Number: XX106H0015T3P2116T300
Brand: PHISON
Alt Part Number(s): XX106H0015T3P2116T300
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H0015T3P2116T300
Capacity 15.36TB
Form Factor U.2
Security Opal
PCIe Interface
PCIe Gen4x4
Dual Port x2 lanes
PCIe AER (Advanced Error Reporting)
Maximum Sequential Read / Write 7000MB/s / 6800MB/s
Maximum Random Read / Write 1600KIOPS / 180KIOPS
Sustained Random Read / Write Latency (µs)
100/15 (QD=1, Workers=1)
110/300 (QD=32, Workers=1)
450/3800 (QD=64, Workers=8)
IOPS Consistency 95%
QoS (99%) Read / Write (µs)
100/12 (QD=1, Workers=1)
120/200 (QD=32, Workers=1)
600/3000 (QD=64, Workers=8)
Power Consumption - Random Read / Write (Typical) 16.2W / 19.6W
Power Consumption - Sequential Read / Write (Typical) 12.3W / 20.1W
Inrush Current 1.5A
Idle Power (Typical) 7.32W
DWPD 1DWPD
TBW 28032TB
LBAF 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF 2,500,000 hours
UBER < 1 sector per 10^18 bits read
Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade
Temperature Range - Operating 0°C – 70°C with specified airflow
Temperature Range - Storage -40°C – 85°C
RoHS Compliant
Enterprise Features
Namespace
Dual Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
Support SMBus Yes
Support NVMe-MI (Management Interface)
Data Retention 3 months
Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1
