Description
Overview

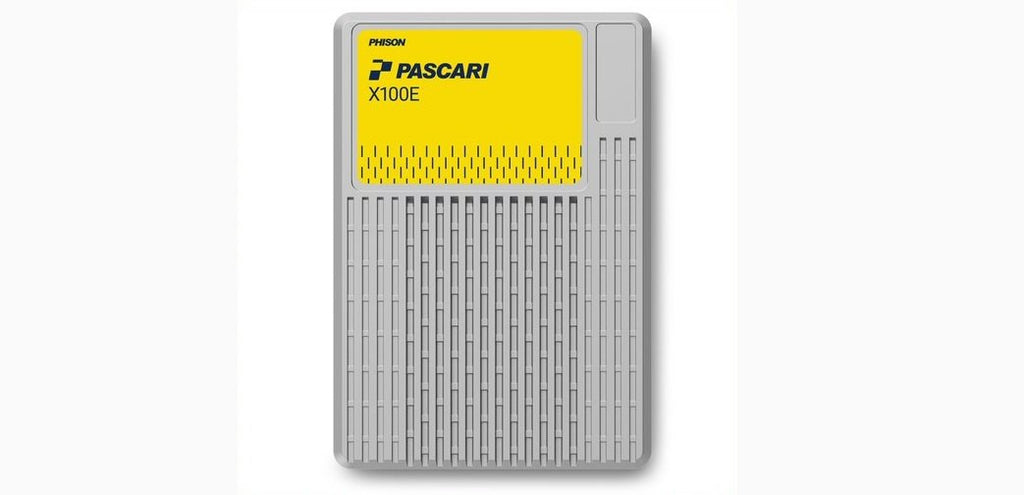

PHISON XX106H013T20E224T0900 Pascari X100E 3.2TB U.2 Dual Port PCIe Gen4x4 SED SSD
Specifications
Model Number: XX106H013T20E224T0900
Brand: PHISON
Alt Part Number(s): XX106H013T20E224T0900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H013T20E224T0900
Capacity: 3.2TB
Form Factor: U.2
Security: SED
Interface: PCIe Gen4x4, Dual Port x2
Advanced Features: AER, Thermal Throttling, Power Loss Protection, SMBus
Compliance: PCIe 4.0, NVMe 1.4, NVMe-MI 1.1
Sequential Read/Write (512KB, QD=32): 7,400 / 6,900 MB/s
Random Read/Write (4KB, QD=128, Jobs=8): 1,750K / 460K IOPS
Power - Sequential Read/Write: 11W / 18W
Power - Random Read/Write: 14W / 16W
Power - 70/30 Read/Write Mix: 15W
Power - Idle: 5.8W
DWPD: 3
TBW: 17.52TB
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
Shock - Operating/Non-operating: 500G / 1000G
Vibration - Operating/Non-operating: 2.17 Grms / 16.3 Grms
Drop: 80cm
Bending: 50N
RoHS Compliant
Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
LBA Formats: 512B, 4K, Metadata options
Namespaces Supported: Yes
Port Type: Dual Port
Reservation Support: Yes
Metadata Protection: Yes
Encryption: AES-XTS 256-bit
