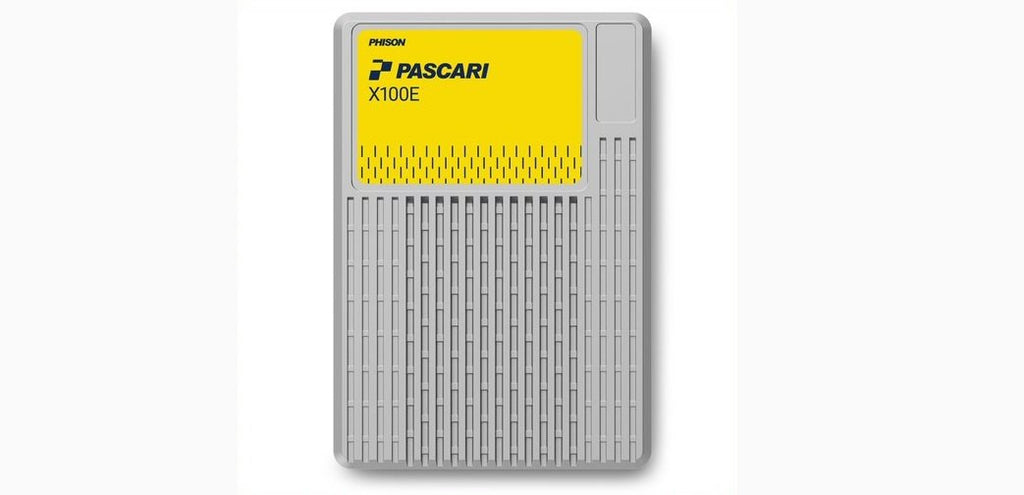

PHISON XX106H013T20E024T0900 Pascari X100E 3.2TB U.2 Dual Port PCIe Gen4x4 Non-SED SSD

Price:
$895.00
PHISONSKU: 100E3ND3T2
Model Number: XX106H013T20E024T0900
Condition: New
In stock:  No
Price:
Sale price$895.00

NOTE: Availability 1-3 Weeks. Lead times may vary.

Get a Quote

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


  • Overview
  • Tech Spec
  • Additional Info

XX106H013T20E024T0900 PHISON SSD delivers high-performance storage with a 3.2TB capacity in a U.2 form factor. Designed for demanding enterprise and data center environments, it leverages PCIe Gen4x4 dual port connectivity for fast data transfer and reliability. Ideal for applications requiring robust endurance, advanced error reporting, and power loss protection.

BrandPHISON
Model NumberXX106H013T20E024T0900
Alt Part NumberXX106H013T20E024T0900
Capacity3.2TB
Form FactorU.2
InterfacePCIe Gen4x4
ProtocolsNVMe
Drive TypeEnterprise
Read Speed7,400 MB/s
Write Speed6,900 MB/s
Random Read1,750,000 IOPS
Random Write460,000 IOPS
Product Type:Solid State Drive
Security:Non-SED
PCIe InterfaceDual Port x2 lanes, PCIe AER (Advanced Error Reporting)
CompliancePCI Express Base Specification Rev. 4.0, NVM Express Base Specification Rev. 1.4, NVM Express Management Interface Rev 1.1, PCI Express SFF-8639 Module Specification Revision 4.0, Version1.0, SFF-TA-1001 r1.1
Power Consumption128K Sequential Read (Average RMS, W): 11; 128K Sequential Write (Average RMS, W): 18; 4KB Random Read (Average RMS, W): 14; 4KB Random Write (Average RMS, W): 16; 4KB 70/30 Random Read/Write (Average RMS, W): 15; Idle (Average RMS, W): 5.8
Endurance/ReliabilityMTBF: 2.5 million hours; UBER: < 1 sector per 10^18 bits Read; DWPD: 3; TBW: 17520TB
Environmental SpecificationsTemperature Range: Operating: 0°C - 70°C with specified airflow; Non-operating: -40°C - 85°C; Shock: Operating: 500G, 2ms; Non-operating: 1000G, 0.5ms; Vibration: Operating: 2.17 Grms (200 - 2000Hz); Non-operating: 16.3 Grms (10 - 2000 Hz); Drop: 80cm height; Bending: 50N; Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL; Product Ecological Compliance: RoHS compliant
Feature SupportLBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes; 64 Namespaces; Dual Port; Reservation; Metadata Protection; Thermal throttling; Power Loss Protection; Hardware AES-XTS 256-bit Encryption; SMBus
