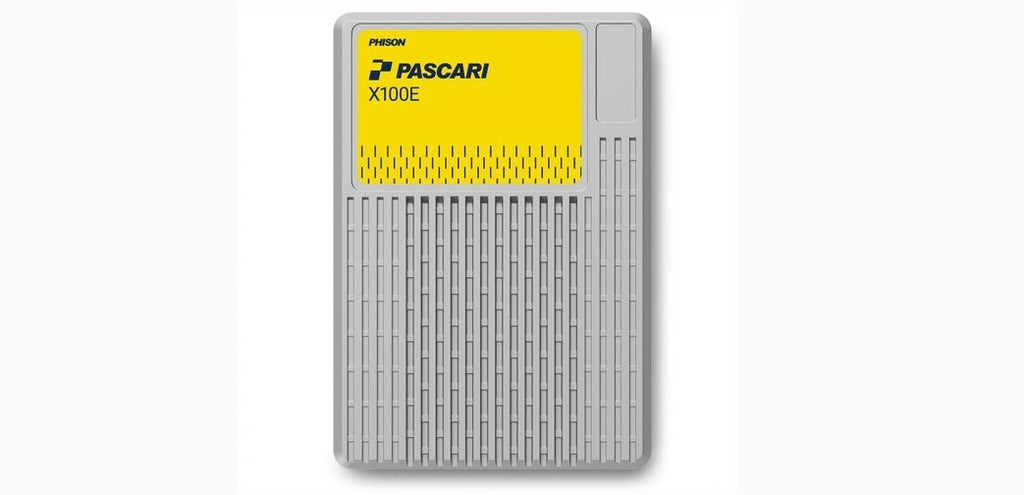

PHISON XX106H011T60E222T0400 Pascari X100E 1.6TB U.2 Dual Port PCIe Gen4x4 SED SSD

Price:
$515.00
PHISONSKU: 100E3SD1T6
Model Number: XX106H011T60E222T0400
Condition: New
In stock:  No
Price:
Sale price$515.00
Get a Quote

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


  • Overview
  • Tech Spec
  • Additional Info

XX106H011T60E222T0400 is a PHISON solid state drive designed for high-performance storage applications. This SSD offers 1.6TB capacity, U.2 form factor, and PCIe Gen4x4 interface, making it ideal for enterprise and data center environments requiring fast data access and reliability. Dual port support and SED security features further enhance its suitability for mission-critical workloads.

BrandPHISON
Model NumberXX106H011T60E222T0400
Alt Part NumberXX106H011T60E222T0400
Capacity1.6TB
Form FactorU.2
InterfacePCIe Gen4x4
ProtocolsNVMe
Drive TypeSolid State Drive
Read SpeedUp to 7,400 MB/s
Write SpeedUp to 3,600 MB/s
Random ReadUp to 1,750,000 IOPS
Random WriteUp to 300,000 IOPS
SecuritySED
PCIeGen4x4
Dual Portx2 lanes
PCIe AERAdvanced Error Reporting
CompliancePCI Express Base Specification Rev.4.0; NVM Express Base Specification Rev.1.4; NVM Express Management Interface Rev1.1; PCI Express SFF-8639 Module Specification Revision4.0, Version1.0, SFF-TA-1001 r1.1
Power Consumption−128K Sequential Read (Average RMS, W): 10; 128K Sequential Write (Average RMS, W): 13; 4KB Random Read (Average RMS, W): 13; 4KB Random Write (Average RMS, W): 12; 4KB 70/30 Random Read/Write (Average RMS, W): 12; Idle (Average RMS, W): 5.5
Endurance/ReliabilityMTBF: 2.5 million hours; UBER: < 1 sector per 10^18 bits Read; DWPD: 3; TBW: 8.76TB
Environmental SpecificationsTemperature Range: Operating: 0°C - 70°C with specified airflow; Non-operating: -40°C - 85°C; Shock: Operating: 500G, 2ms; Non-operating: 1000G, 0.5ms; Vibration: Operating: 2.17 Grms (200 - 2000Hz); Non-operating: 16.3 Grms (10 - 2000 Hz); Drop: 80cm height; Bending: 50N; Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL; Product Ecological Compliance: RoHS compliant
Feature SupportLBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes; 64 Namespaces; Dual Port; Reservation; Metadata Protection; Thermal throttling; Power Loss Protection; Hardware AES-XTS 256-bit Encryption; SMBus
