Description
Overview

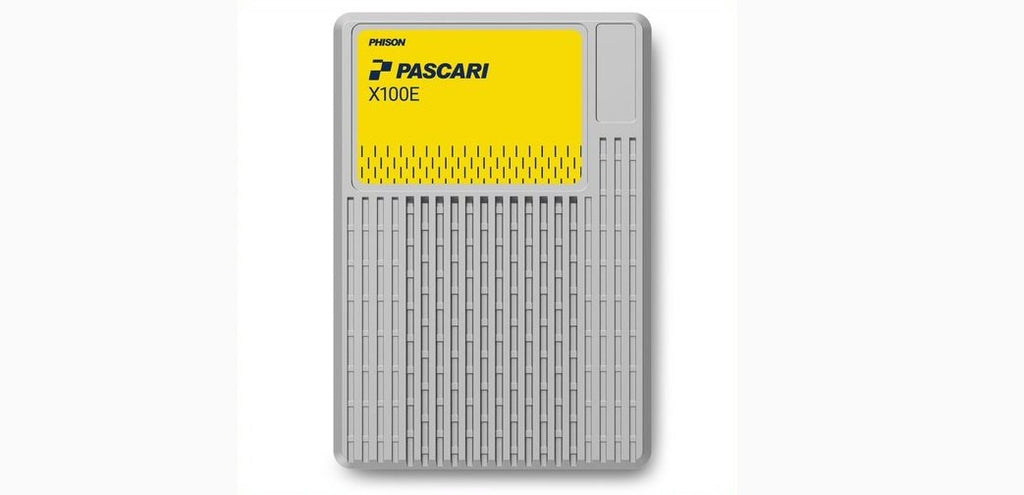

PHISON XX106H011T60E022T0400 Pascari X100E 1.6TB U.2 Dual Port PCIe Gen4x4 Non-SED SSD
Specifications
Model Number: XX106H011T60E022T0400
Brand: PHISON
Alt Part Number(s): XX106H011T60E022T0400
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H011T60E022T0400
Capacities: 1.6TB
Security: Non-SED
Form Factor: U.2
PCIe Interface
PCIe Gen4x4
Dual Port x2 lanes
PCIe AER (Advanced Error Reporting)
Compliance
PCI Express Base Specification Rev. 4.0
NVM Express Base Specification Rev. 1.4
NVM Express Management Interface Rev 1.1
PCI Express SFF-8639 Module Specification Revision 4.0, Version1.0, SFF-TA-1001 r1.1
Performance
512KB Sequential Read/Write (QD=32, Job=1)(MB/s): 7,400 / 3,600
4KB Random Read/Write (QD=128, Jobs=8) (IOPS): 1,750K / 300K
Power Consumption
128K Sequential Read (Average RMS, W): 10
128K Sequential Write (Average RMS, W): 13
4KB Random Read (Average RMS, W): 13
4KB Random Write (Average RMS, W): 12
4KB 70/30 Random Read/Write (Average RMS, W): 12
Idle (Average RMS, W): 5.5
Endurance/Reliability
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits Read
DWPD: 3
TBW: 8760TB
Environmental Specifications
Temperature Range:
Operating: 0°C - 70°C with specified airflow
Non-operating: -40°C - 85°C
Shock:
Operating: 500G, 2ms
Non-operating: 1000G, 0.5ms
Vibration:
Operating: 2.17 Grms (200 - 2000Hz)
Non-operating: 16.3 Grms (10 - 2000 Hz)
Drop: 80cm height
Bending: 50N
Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Product Ecological Compliance: RoHS compliant
Feature Support
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
64 Namespaces
Dual Port
Reservation
Metadata Protection
Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
SMBus
