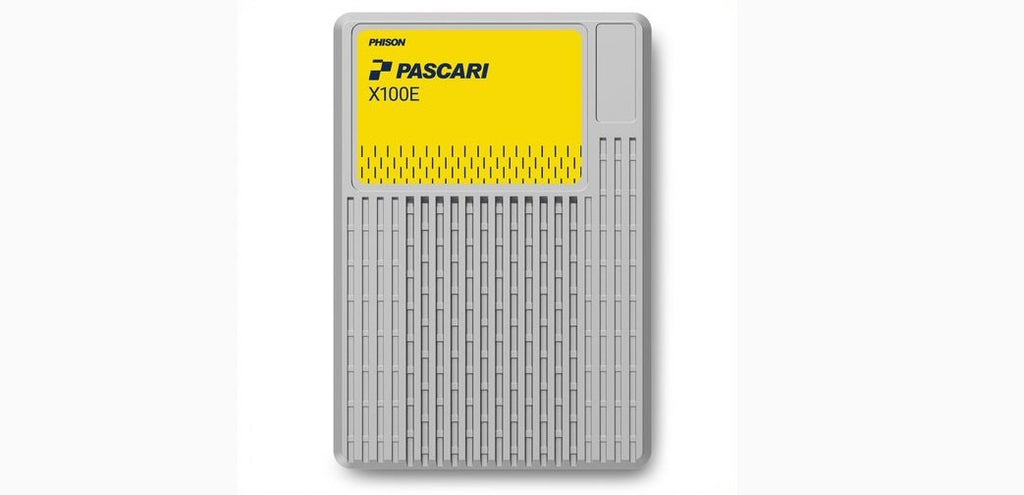

PHISON XX106H0112T8E0116T300 Pascari X100E 12.8TB SSD

PHISON XX106H0112T8E0116T300 Pascari X100E 12.8TB U.2 Dual Port PCIe Gen4x4 Non-SED SSD

"Image may differ from actual product"

Roll over image to zoom in Click on image to zoom

Overview
Tech Spec
Additional Info

XX106H0112T8E0116T300 by PHISON is a high-capacity 12.8TB U.2 SSD designed for demanding enterprise and data center environments. It leverages PCIe Gen4x4 dual-port connectivity for high throughput and reliability. This SSD is ideal for applications requiring fast data access, advanced error reporting, and robust endurance.

Brand	PHISON
Model Number	XX106H0112T8E0116T300
Alt Part Number	XX106H0112T8E0116T300
Capacity	12.8TB
Form Factor	U.2
Interface	PCIe Gen4x4
Protocols	NVMe
Drive Type	Enterprise
Read Speed	7,400 MB/s
Write Speed	7,000 MB/s
Random Read	1,750,000 IOPS
Random Write	490,000 IOPS

Security	Non-SED
PCIe Interface	Dual Port x2 lanes, PCIe AER (Advanced Error Reporting)
Compliance	PCI Express Base Specification Rev. 4.0, NVM Express Base Specification Rev. 1.4, NVM Express Management Interface Rev 1.1, PCI Express SFF-8639 Module Specification Revision 4.0, Version 1.0, SFF-TA-1001 r1.1
Power Consumption	128K Sequential Read (Average RMS, W): 13; 128K Sequential Write (Average RMS, W): 21; 4KB Random Read (Average RMS, W): 16; 4KB Random Write (Average RMS, W): 20; 4KB 70/30 Random Read/Write (Average RMS, W): 17; Idle (Average RMS, W): 7.4
Endurance/Reliability	MTBF: 2.5 million hours; UBER: < 1 sector per 10^18 bits Read; DWPD: 3; TBW: 70080TB
Environmental Specifications	Temperature Range: Operating: 0°C - 70°C with specified airflow; Non-operating: -40°C - 85°C; Shock: Operating: 500G, 2ms; Non-operating: 1000G, 0.5ms; Vibration: Operating: 2.17 Grms (200 - 2000Hz); Non-operating: 16.3 Grms (10 - 2000 Hz); Drop: 80cm height; Bending: 50N
Certifications and Declarations	CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Product Ecological Compliance	RoHS compliant
Feature Support	LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes; 64 Namespaces; Dual Port; Reservation; Metadata Protection; Thermal throttling; Power Loss Protection; Hardware AES-XTS 256-bit Encryption; SMBus
