Description
Overview

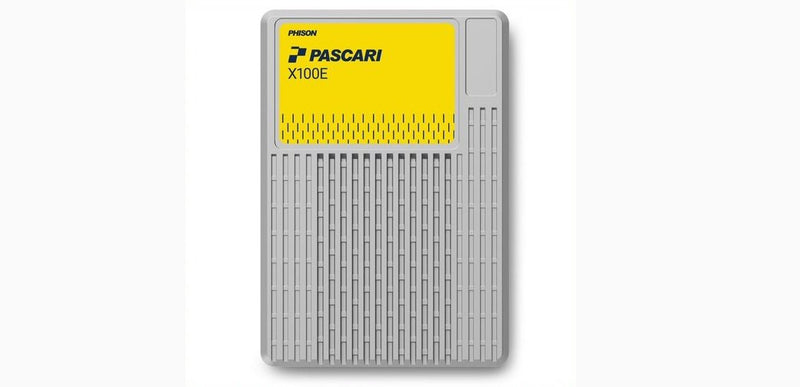

PHISON XX106H006T40E028T1900 Pascari X100E 6.4TB U.2 Dual Port PCIe Gen4x4 Non-Opal SSD
Specifications
Model Number: XX106H006T40E028T1900
Brand: PHISON
Alt Part Number(s): XX106H006T40E028T1900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H006T40E028T1900
Capacities: 6.4TB
Security: Non-Opal
Form Factor: U.2
PCIe Interface
PCIe Gen4x4
Dual Port x2 lanes
PCIe AER (Advanced Error Reporting)
Performance
128KB Sequential Read/Write (QD=32, Workers=1)(MB/s): 7,000 / 6,800
4K Sustained Random Read/Write (QD=64, Workers=8)(IOPS): 1,600K / 450K
4KB Sustained Random Read/Write Latency (µs): 100 / 15(QD=1, Workers=1); 110 / 120(QD=32, Workers=1); 450 / 1700(QD=64, Workers=8)
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(µs): 100 / 12(QD=1, Workers=1); 130 / 100(QD=32, Workers=1); 600 / 1800(QD=64, Workers=8)
IOPS Consistency: 95%
Power Consumption
Random Read/Write (Typ., W): 15.9 / 17.8
Sequential Read/Write (Typ., W): 11.9 / 19.9
Inrush Current: 1.5A
Idle (Typ., W): 5.88
Endurance/Reliability
DWPD: 3
TBW: 35,040TB
MTBF: 2,500,000 hours
UBER: < 1 sector per 10^18 bits Read
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade
Temperature Range
Operating: 0°C - 70°C with specified airflow
Storage: -40°C - 85°C
Environmental & Mechanical
RoHS compliant
Physical Dimension: U.2 100(L) × 70(W) × 15(H) mm
Enterprise Features Support List
Namespace
Dual Port
Reservation
Metadata Protection
Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
Support
SMBus
NVMe-MI (Management Interface)
Data Retention: 3 months
Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev1.1
