Description
Overview

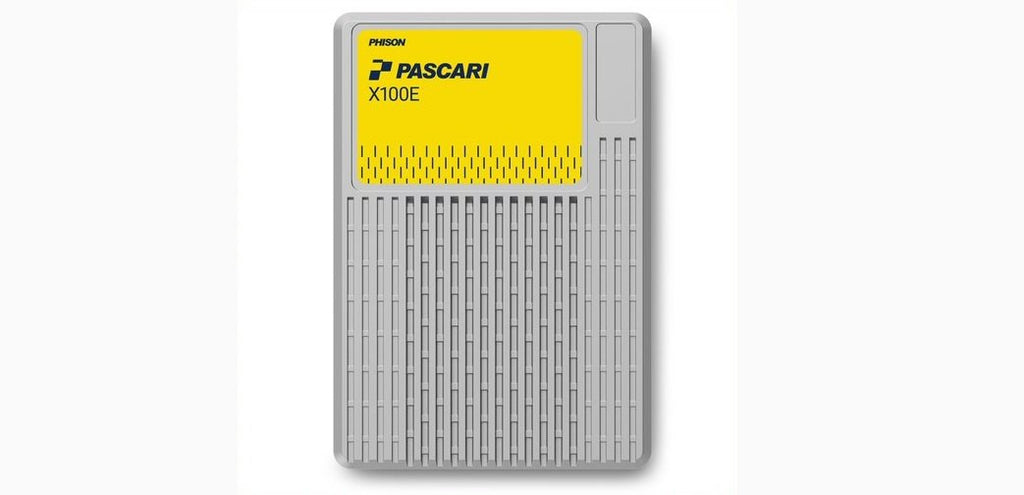

PHISON XX106H003T20E224T0900 Pascari X100E 3.2TB U.2 Dual Port PCIe Gen4x4 Opal SSD
Specifications
Model Number: XX106H003T20E224T0900
Brand: PHISON
Alt Part Number(s): XX106H003T20E224T0900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H003T20E224T0900
Capacities: 3.2TB
Security: Opal
Form Factor: U.2
Interface: PCIe Gen4x4
Dual Port: 2 lanes
AER: PCIe Advanced Error Reporting
Performance
Sequential Read/Write (128KB, QD=32): 7,000 / 6,700 MB/s
Random Read/Write (4K, QD=64): 1,600K / 430K IOPS
Latency
QD=1: 100 / 15 µs
QD=32: 110 / 120 µs
QD=64: 450 / 1600 µs
IOPS Consistency: 95%
Quality of Service (99%)
QD=1: 100 / 12 µs
QD=32: 140 / 100 µs
QD=64: 600 / 2000 µs
Power Consumption
Random Read: 13.8W
Random Write: 16.4W
Sequential Read: 11.0W
Sequential Write: 18.3W
Idle: 5.83W
Inrush Current: 1.5A
DWPD: 3
TBW: 17.52TB
MTBF: 2,500,000 hours
UBER: < 1 sector per 10^18 bits read
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
Flash Management
ECC
Wear Leveling: Static and Dynamic
Bad Block Management
TRIM Support
SMART Support
Over-Provisioning
Firmware Upgradeable
Temperature
Operating: 0 °C – 70 °C (with specified airflow)
Storage: -40 °C – 85 °C
RoHS Compliant
Enterprise Features
Namespace Support
Dual Port Support
Reservation Support
Metadata Protection
Thermal Throttling
Power Loss Protection
Encryption: AES-XTS 256-bit
SMBus Support
NVMe-MI Support
Data Retention: 3 months
Compliance: PCIe 4.0
Compliance: NVMe 1.4
Compliance: NVMe-MI Rev 1.1
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
