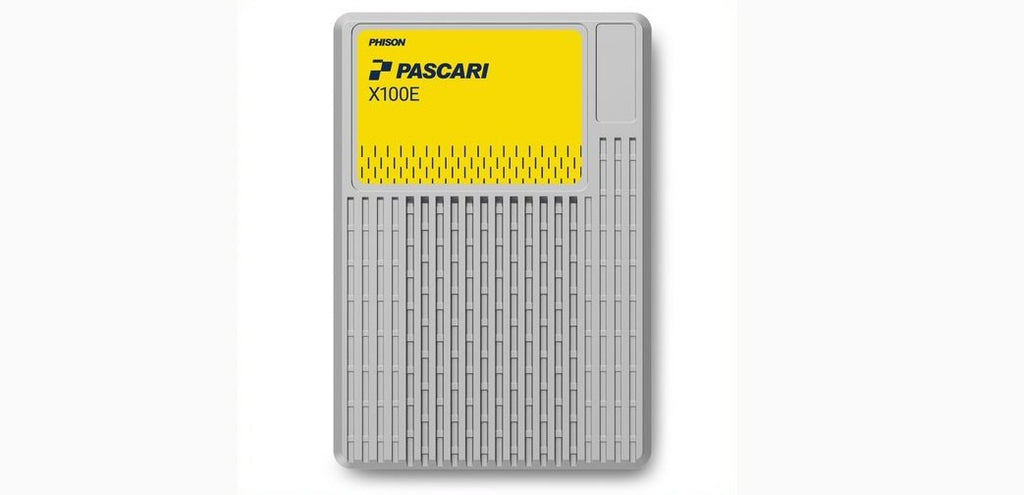

PHISON XX106H001T60E022T0400 Pascari X100E 1.6TB U.2 Dual Port PCIe Gen4x4 Non-Opal SSD

Price:
$508.00
PHISONSKU: 100E3ND1A6
Model Number: XX106H001T60E022T0400
Condition: New
In stock:  No
Price:
Sale price$508.00
Get a Quote

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


  • Overview
  • Tech Spec
  • Additional Info

XX106H001T60E022T0400 is a PHISON enterprise-class SSD designed for high-performance storage applications. It offers 1.6TB capacity, U.2 form factor, and PCIe Gen4x4 interface with dual port support, making it suitable for demanding data center and enterprise environments. The drive delivers fast sequential and random performance, robust reliability, and advanced management features.

BrandPHISON
Model NumberXX106H001T60E022T0400
Alt Part NumberXX106H001T60E022T0400
Capacity1.6TB
Form FactorU.2
InterfacePCIe Gen4x4
ProtocolsNVMe
Drive TypeEnterprise
Read Speed7,000 MB/s
Write Speed3,500 MB/s
Random Read1,600,000 IOPS
Random Write280,000 IOPS
SeriesPascari X100E
SecurityNon-Opal
PCIe InterfaceDual Port x2 lanes, PCIe AER (Advanced Error Reporting)
Performance4K Sustained Random Read/Write Latency (µs): 110 / 15 (QD=1, Workers=1); 120 / 160 (QD=32, Workers=1); 450 / 2200 (QD=64, Workers=8); IOPS Consistency: 95%; 4KB Sustained Random Read/Write Quality of Service (QoS=99%) (µs): 120 / 12 (QD=1, Workers=1); 160 / 130 (QD=32, Workers=1); 1000 / 2000 (QD=64, Workers=8)
Power ConsumptionRandom Read (Typ., W): 12.8; Random Write (Typ., W): 12.5; Sequential Read (Typ., W): 10.4; Sequential Write (Typ., W): 13.3; Inrush Current: 1.5A; Idle (Typ., W): 5.51
DWPD3DWPD
TBW8760TB
LBAF512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF2,500,000 hours
UBER (Uncorrectable Bit Error Rates)< 1 sector per 10^18 bits Read
Advanced Flash ManagementECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade
Temperature RangeOperation: 0 °C - 70 °C with specified airflow; Storage: -40 °C - 85 °C
RoHS compliantYes
Enterprise Features Support ListNamespace, Dual Port, Reservation, Metadata Protection, Thermal throttling, Power Loss Protection, Hardware AES-XTS 256-bit Encryption
Support SMBusYes
Support NVMe-MI (Management Interface)Yes
Data Retention3 months
CompliancePCIe Express Base 4.0, NVMe 1.4, NVMe Management Interface Rev 1.1
