Description
Overview

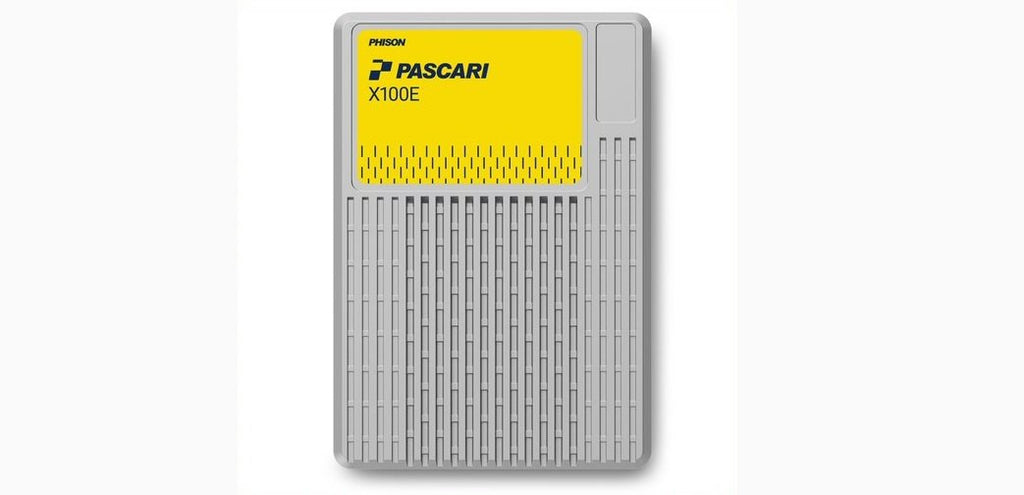

PHISON XX106H0012T8E2116T300 Pascari X100E 12.8TB U.2 Dual Port PCIe Gen4x4 Opal SSD
Specifications
Model Number: XX106H0012T8E2116T300
Brand: PHISON
Alt Part Number(s): XX106H0012T8E2116T300
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XX106H0012T8E2116T300
Capacities: 12.8TB
Security: Opal
Form Factor: U.2
PCIe Interface
PCIe Gen4x4
Dual Port x2 lanes
PCIe AER (Advanced Error Reporting)
Performance
128KB Sequential Read/Write (QD=32, Workers=1)(MB/s): 7,000 / 6,800
4K Sustained Random Read/Write (QD=64, Workers=8)(IOPS): 1,600K / 480K
Latency 4K Sustained Random Read/Write (µs): 100 / 15 (QD=1, Workers=1); 110 / 150 (QD=32, Workers=1); 450 / 1900 (QD=64, Workers=8)
IOPS Consistency: 95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(4KB): 100 / 12 (QD=1, Workers=1); 120 / 80 (QD=32, Workers=1); 600 / 1600 (QD=64, Workers=8)
Power Consumption
Random Read (Typ., W): 16.5
Random Write (Typ., W): 20.2
Sequential Read (Typ., W): 12.6
Sequential Write (Typ., W): 20.8
Inrush Current: 1.5A
Idle (Typ., W): 7.43
DWPD: 3DWPD
TBW: 70.08TB
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF: 2,500,000 hours
UBER (Uncorrectable Bit Error Rates): < 1 sector per 10^18 bits Read
Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade
Temperature Range
Operation: 0 °C - 70 °C with specified airflow
Storage: -40 °C - 85 °C
RoHS compliant
Enterprise Features Support List
Namespace
Dual Port
Reservation
Metadata Protection Thermal throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
Support SMBus
Support NVMe-MI (Management Interface)
Data Retention: 3 months
Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1
