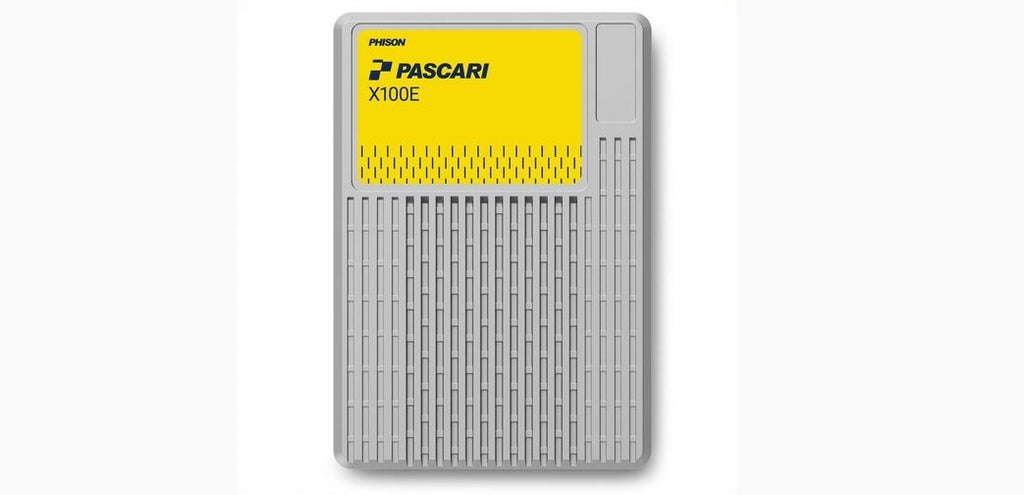

PHISON XP106H016T40E228T1900 Pascari X100E 6.4TB SSD

PHISON XP106H016T40E228T1900 Pascari X100E 6.4TB U.2 Single Port PCIe Gen4x4 SED SSD

"Image may differ from actual product"

Roll over image to zoom in Click on image to zoom

Overview
Tech Spec
Additional Info

XP106H016T40E228T1900 is a PHISON solid state drive designed for high-performance enterprise and data center applications. This SSD offers a large 6.4TB capacity, U.2 form factor, and utilizes PCIe Gen4x4 interface for rapid data transfer speeds. It is ideal for environments requiring secure, reliable, and fast storage with advanced error reporting and SED security.

Brand	PHISON
Model Number	XP106H016T40E228T1900
Alt Part Number	XP106H016T40E228T1900
Capacity	6.4TB
Form Factor	U.2
Interface	PCIe Gen4x4
Protocols	NVMe
Drive Type	Enterprise
Read Speed	Up to 7400 MB/s
Write Speed	Up to 7000 MB/s
Random Read	Up to 1,750,000 IOPS
Random Write	Up to 460,000 IOPS

Series	Pascari X100E
Security	SED
PCIe Interface	Single Port x4 lanes, PCIe AER (Advanced Error Reporting)
Compliance	PCI Express Base Specification Rev. 4.0, NVM Express Base Specification Rev. 1.4, NVM Express Management Interface Rev 1.1, PCI Express SFF-8639 Module Specification Revision 4.0, Version 1.0, SFF-TA-1001 r1.1
Power Consumption	128K Sequential Read (Average RMS): 12 W; 128K Sequential Write (Average RMS): 19 W; 4KB Random Read (Average RMS): 16 W; 4KB Random Write (Average RMS): 18 W; 4KB 70/30 Random Read/Write (Average RMS): 17 W; Idle (Average RMS): 5.9 W
MTBF	2.5 million hours
UBER	< 1 sector per 10^18 bits read
DWPD	3
TBW	35040 TB
Temperature Range	Operating: 0 °C – 70 °C with specified airflow; Non-operating: -40 °C – 85 °C
Shock	Operating: 500G, 2ms; Non-operating: 1000G, 0.5ms
Vibration	Operating: 2.17 Grms (200 – 2000 Hz); Non-operating: 16.3 Grms (10 – 2000 Hz)
Drop	80 cm height
Bending	50N
Certifications and Declarations	CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Product Ecological Compliance	RoHS compliant
Feature Support	LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes; 64 Namespaces; Single Port; Reservation; Metadata Protection; Thermal Throttling; Power Loss Protection; Hardware AES-XTS 256-bit Encryption; SMBus
