Description
Overview

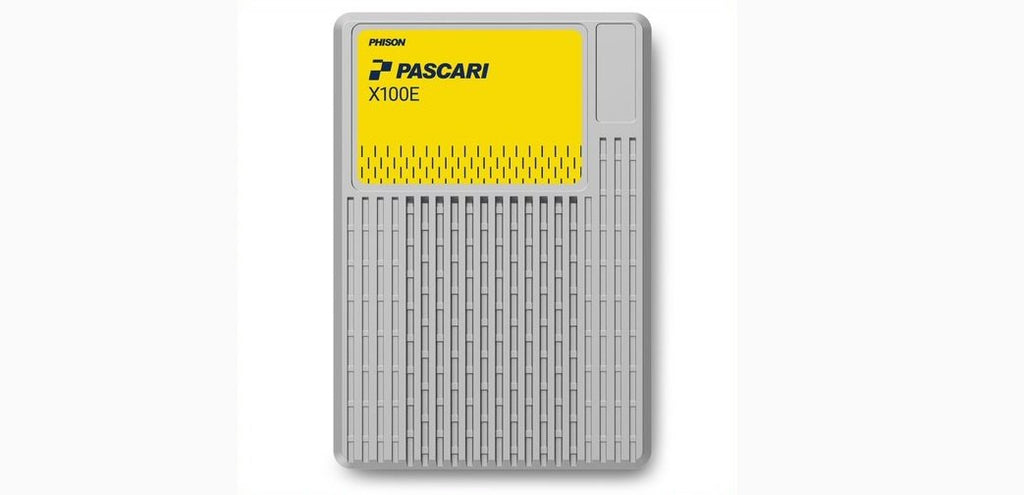

PHISON XP106H006T40E228T1900 Pascari X100E 6.4 TB U.2 Single Port PCIe Gen4x4 Opal SSD
Specifications
Model Number: XP106H006T40E228T1900
Brand: PHISON
Alt Part Number(s): XP106H006T40E228T1900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP106H006T40E228T1900
Capacities: 6.4 TB
Form Factor: U.2
Security: Opal
PCIe Interface
PCIe Gen4x4
Single Port x4 lanes
PCIe AER (Advanced Error Reporting)
Sequential 128KB (QD=32, Workers=1) Read / Write: 7000 MB/s / 6800 MB/s
4K Sustained Random (QD=64, Workers=8) Read / Write: 1600K IOPS / 450K IOPS
4KB Sustained Random Read / Write Latency (µs): 100 / 15 (QD=1, Workers=1); 110 / 120 (QD=32, Workers=1); 450 / 1700 (QD=64, Workers=8)
IOPS Consistency: 95%
QoS (Quality of Service, 99%) Read / Write (µs): 100 / 12 (QD=1, Workers=1); 130 / 100 (QD=32, Workers=1); 600 / 1800 (QD=64, Workers=8)
Power Consumption
Random Read / Write (Typ): 15.9 / 17.8 W
Sequential Read / Write (Typ): 11.9 / 19.9 W
Inrush Current: 1.5A
Idle Power (Typ): 5.88 W
DWPD: 3
TBW: 35040 TB
LBAF: 512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF: 2,500,000 hours
UBER: < 1 sector per 10^18 bits read
Advanced Flash Management
ECC
Static and Dynamic Wear Leveling
Bad Block Management
Deallocate (TRIM) Command
SMART
Over-Provision
Firmware Upgrade
Temperature Range
Operation: 0 °C – 70 °C with specified airflow
Storage: -40 °C – 85 °C
RoHS: Compliant
Enterprise Features Support List
Namespace
Single Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
Hardware AES-XTS 256-bit Encryption
Support SMBus
Support NVMe-MI (Management Interface)
Data Retention: 3 months
Physical Dimension: U.2 100(L) x 70(W) x 15(H) mm
Compliance
PCIe Express Base 4.0
NVMe 1.4
NVMe Management Interface Rev 1.1
