Description
Overview

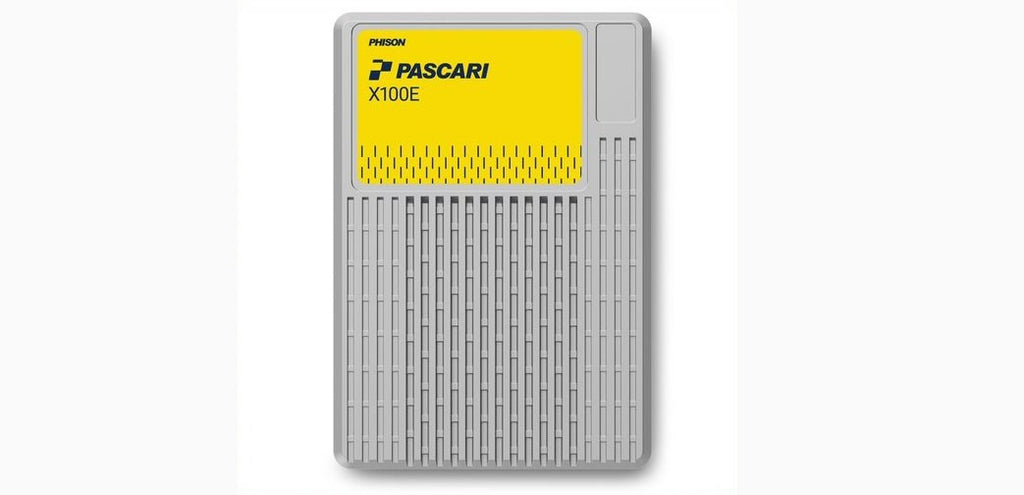

PHISON XP106H003T20E224T0900 Pascari X100E 3.2TB U.2 Single Port PCIe Gen4x4 Opal SSD
Specifications
Model Number: XP106H003T20E224T0900
Brand: PHISON
Alt Part Number(s): XP106H003T20E224T0900
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: XP106H003T20E224T0900
Capacity: 3.2TB
Security: Opal
Form Factor: U.2
Interface: PCIe Gen4x4, Single Port x4
Advanced Features: AER, Thermal Throttling, Power Loss Protection, Firmware Upgrade, SMBus, NVMe-MI
Compliance: PCIe 4.0, NVMe 1.4, NVMe-MI 1.1
Sequential Read/Write (128KB): 7,000 / 6,700 MB/s
Random Read/Write (4K, QD=64, 8 Workers): 1,600K / 430K IOPS
Latency (4K, QD=1): 100µs / 15µs
Latency (QD=32): 110µs / 120µs
Latency (QD=64): 450µs / 1600µs
QoS (99%, QD=1): 100µs / 12µs
QoS (QD=32): 140µs / 100µs
QoS (QD=64): 600µs / 2000µs
IOPS Consistency: 95%
Power - Random Read/Write: 13.8W / 16.4W
Power - Sequential Read/Write: 11.0W / 18.3W
Power - Idle: 5.83W
Inrush Current: 1.5A
DWPD: 3
TBW: 17.52TB
LBA Formats: 512B, 4K, Metadata options
MTBF: 2.5 million hours
UBER: < 1 sector per 10^18 bits read
Flash Management: ECC, Wear Leveling, Bad Block Management, TRIM, SMART, Over-Provision
Operating Temperature: 0°C to 70°C
Storage Temperature: -40°C to 85°C
RoHS Compliant
Data Retention: 3 months
Namespaces Supported: Yes
Port Type: Single Port
Reservation Support: Yes
Metadata Protection: Yes
Encryption: AES-XTS 256-bit
