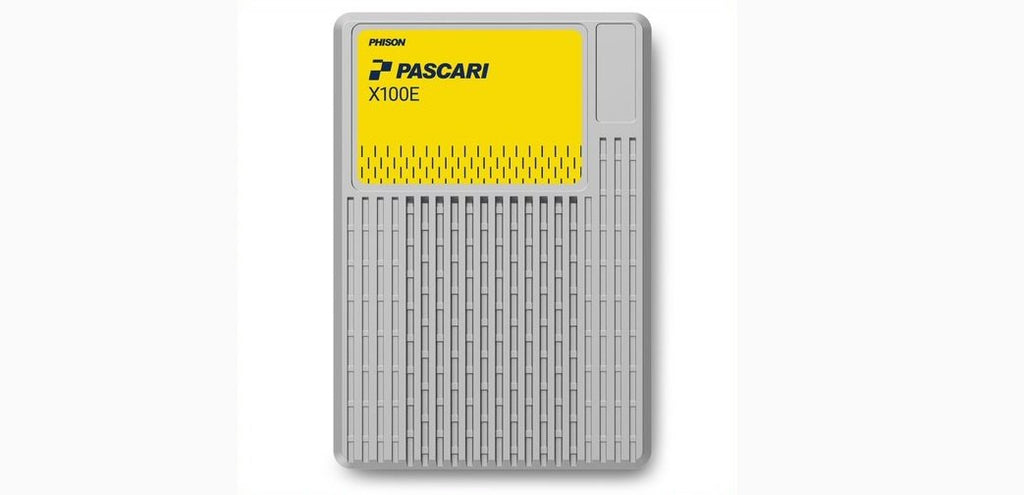

PHISON XP106H003T20E024T0900 Pascari X100E 3.2TB U.2 Single Port PCIe Gen4x4 Non-Opal SSD

Price:
$771.00
PHISONSKU: 100E3NS3T2
Model Number: XP106H003T20E024T0900
Condition: New
In stock:  No
Price:
Sale price$771.00

NOTE: Availability 1-3 Weeks. Lead times may vary.

Get a Quote

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


  • Overview
  • Tech Spec
  • Additional Info

XP106H003T20E024T0900 is a PHISON enterprise-class solid state drive designed for high-performance storage applications. It offers 3.2TB capacity in a U.2 form factor, utilizing PCIe Gen4x4 interface for fast data transfer and low latency. Ideal for data centers and demanding workloads, this SSD delivers robust reliability and advanced flash management features.

BrandPHISON
Model NumberXP106H003T20E024T0900
Alt Part NumberXP106H003T20E024T0900
Capacity3.2TB
Form FactorU.2
InterfacePCIe Gen4x4
ProtocolsNVMe
Drive TypeEnterprise
Read Speed7,000 MB/s
Write Speed6,700 MB/s
Random Read1,600,000 IOPS
Random Write430,000 IOPS
SeriesPascari X100E
SecurityNon-Opal
PCIe InterfaceSingle Port x4 lanes, PCIe AER (Advanced Error Reporting)
Performance4K Sustained Random Read/Write Latency (µs): 100 / 15 (QD=1, Workers=1); 110 / 120 (QD=32, Workers=1); 450 / 1600 (QD=64, Workers=8); IOPS Consistency: 95%; 4KB Sustained Random Read/Write Quality of Service (QoS=99%)(µs): 100 / 12 (QD=1, Workers=1); 140 / 100 (QD=32, Workers=1); 600 / 2000 (QD=64, Workers=8)
Power ConsumptionRandom Read (Typ., W): 13.8; Random Write (Typ., W): 16.4; Sequential Read (Typ., W): 11.0; Sequential Write (Typ., W): 18.3; Inrush Current: 1.5A; Idle (Typ., W): 5.83
DWPD3DWPD
TBW17.52TB
LBAF512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF2,500,000 hours
UBER (Uncorrectable Bit Error Rates)< 1 sector per 10^18 bits Read
Advanced Flash ManagementECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade
Temperature RangeOperation: 0 °C - 70 °C with specified airflow; Storage: -40 °C - 85 °C
RoHS compliantYes
Enterprise Features Support ListNamespace, Single Port, Reservation, Metadata Protection, Thermal throttling, Power Loss Protection, Hardware AES-XTS 256-bit Encryption
Support SMBusYes
Support NVMe-MI (Management Interface)Yes
Data Retention3 months
CompliancePCIe Express Base 4.0, NVMe 1.4, NVMe Management Interface Rev 1.1
