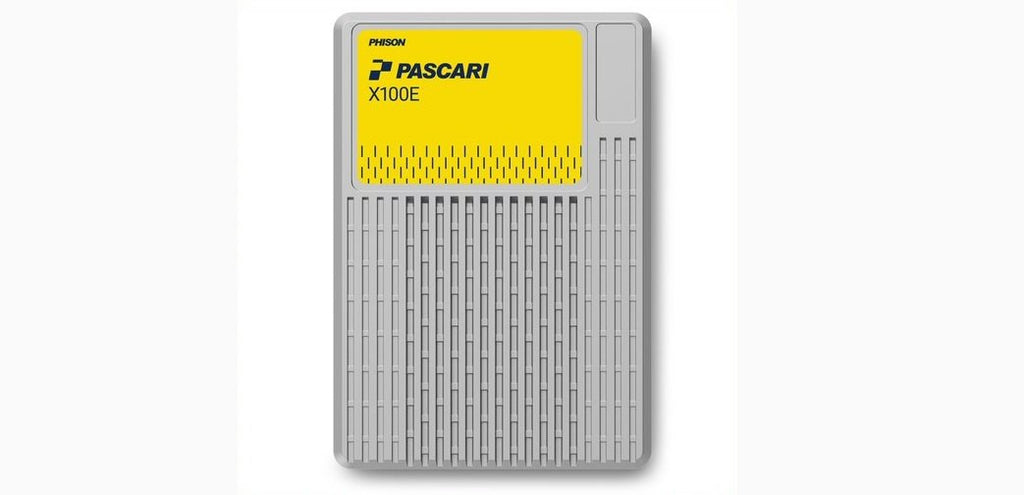

PHISON XP106H001T60E022T0400 Pascari X100E 1.6TB U.2 Single Port PCIe Gen4x4 Non-Opal SSD

Price:
$439.00
PHISONSKU: 100E3NS1T6
Model Number: XP106H001T60E022T0400
Condition: New
In stock:  No
Price:
Sale price$439.00
Get a Quote

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


  • Overview
  • Tech Spec
  • Additional Info

XP106H001T60E022T0400 is a PHISON SSD designed for enterprise environments requiring high performance and reliability. This U.2 form factor drive offers 1.6TB capacity and utilizes PCIe Gen4x4 for fast data transfer speeds. Ideal for data centers and demanding workloads, it features advanced error correction and power loss protection.

BrandPHISON
Model NumberXP106H001T60E022T0400
Alt Part NumberXP106H001T60E022T0400
Capacity1.6TB
Form FactorU.2
InterfacePCIe Gen4x4
ProtocolsNVMe
Drive TypeEnterprise
Read SpeedUp to 7,000 MB/s
Write SpeedUp to 3,500 MB/s
Random ReadUp to 1,600,000 IOPS
Random WriteUp to 280,000 IOPS
SecurityNon-Opal
Product TypeSolid State Drive
PCIe InterfaceSingle Port x4 lanes, PCIe AER (Advanced Error Reporting)
4K Sustained Random Read/Write Latency(µs)110 / 15 (QD=1, Workers=1); 120 / 160 (QD=32, Workers=1); 450 / 2200 (QD=64, Workers=8)
IOPS Consistency95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(µs)120 / 12 (QD=1, Workers=1); 160 / 130 (QD=32, Workers=1); 1000 / 2000 (QD=64, Workers=8)
Power ConsumptionRandom Read (Typ., W): 12.8; Random Write (Typ., W): 12.5; Sequential Read (Typ., W): 10.4; Sequential Write (Typ., W): 13.3; Inrush Current: 1.5A; Idle (Typ., W): 5.51
DWPD3DWPD
TBW8.76TB
LBAF512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF2,500,000 hours
UBER (Uncorrectable Bit Error Rates)< 1 sector per 10^18 bits Read
Advanced Flash ManagementECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade
Temperature RangeOperation: 0 °C - 70 °C with specified airflow; Storage: -40 °C - 85 °C
RoHS compliantYes
Enterprise Features Support ListNamespace, Single Port, Reservation, Metadata Protection, Thermal throttling, Power Loss Protection, Hardware AES-XTS 256-bit Encryption
Support SMBusYes
Support NVMe-MI (Management Interface)Yes
Data Retention3 months
CompliancePCIe Express Base 4.0, NVMe 1.4, NVMe Management Interface Rev 1.1
