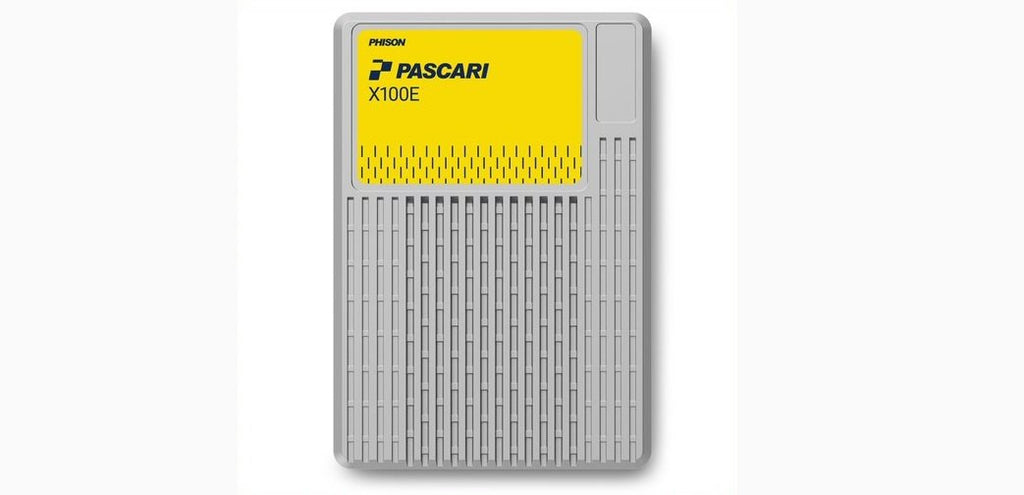

PHISON XP106H0012T8E0116T300 Pascari X100E 12.8TB U.2 Single Port PCIe Gen4x4 Non-Opal SSD

Price:
$2,629.00
PHISONSKU: 100E3NS12T
Model Number: XP106H0012T8E0116T300
Condition: New
In stock:  No
Price:
Sale price$2,629.00

NOTE: Availability 1-3 Weeks. Lead times may vary.

Get a Quote

SPECIAL ORDER

This item is a Special Order and may take additional shipping time.
Place your order with SAITECH, and we will make every effort to have the item delivered to you as soon as possible.

How We Process Orders
Fastest Shipping: To get your products to you as quickly as possible, most orders placed directly by one of our several leading distributors or by the product's manufacturer. As a result, no one can get your orders to you faster than we can!

Strong Industry Alliances: SAITECH maintains long-standing alliances with the industry's leading distributors and manufacturers. As a result, we are the top source for your computer, office and Server technology needs.

Lowest Possible Prices: Advanced electronic interfaces continually scan our distributors for their best current pricing and availability. While changes in availability between different distributors may result in some price fluctuations, it ensures that you will always receive the lowest possible prices on currently available products!

Realtime Inventory: Live inventory updates are not available for this product.


  • Overview
  • Tech Spec
  • Additional Info

XP106H0012T8E0116T300 by PHISON is a high-capacity U.2 SSD designed for enterprise and data center environments. It delivers fast PCIe Gen4x4 performance with robust reliability and advanced flash management features. Ideal for demanding workloads requiring high throughput, endurance, and data integrity.

BrandPHISON
Model NumberXP106H0012T8E0116T300
Alt Part NumberXP106H0012T8E0116T300
Capacity12.8TB
Form FactorU.2
InterfacePCIe Gen4x4
ProtocolsNVMe
Drive TypeEnterprise
Read Speed7,000 MB/s
Write Speed6,800 MB/s
Random ReadUp to 1,600,000 IOPS
Random WriteUp to 480,000 IOPS
SecurityNon-Opal
Product TypeSolid State Drive
PCIe InterfaceSingle Port x4 lanes, PCIe AER (Advanced Error Reporting)
Latency 4K Sustained Random Read/Write (µs)100 / 15 (QD=1, Workers=1); 110 / 150 (QD=32, Workers=1); 450 / 1900 (QD=64, Workers=8)
IOPS Consistency95%
4KB Sustained Random Read/Write Quality of Service (QoS=99%)(4KB)100 / 12 (QD=1, Workers=1); 120 / 80 (QD=32, Workers=1); 600 / 1600 (QD=64, Workers=8)
Power ConsumptionRandom Read (Typ., W): 16.5; Random Write (Typ., W): 20.2; Sequential Read (Typ., W): 12.6; Sequential Write (Typ., W): 20.8; Inrush Current: 1.5A; Idle (Typ., W): 7.43
DWPD3DWPD
TBW70.08TB
LBAF512 / 512+8 / 4K / 4K+8 / 4K+64 Bytes
MTBF2,500,000 hours
UBER (Uncorrectable Bit Error Rates)< 1 sector per 10^18 bits Read
Advanced Flash ManagementECC, Static and Dynamic Wear Leveling, Bad Block Management, Deallocate (TRIM) Command, SMART, Over-Provision, Firmware Upgrade
Temperature RangeOperation: 0 °C - 70 °C with specified airflow; Storage: -40 °C - 85 °C
RoHS compliant
Enterprise Features Support ListNamespace, Single Port, Reservation, Metadata Protection, Thermal throttling, Power Loss Protection, Hardware AES-XTS 256-bit Encryption
Support SMBus
Support NVMe-MI (Management Interface)
Data Retention3 months
CompliancePCIe Express Base 4.0, NVMe 1.4, NVMe Management Interface Rev 1.1
