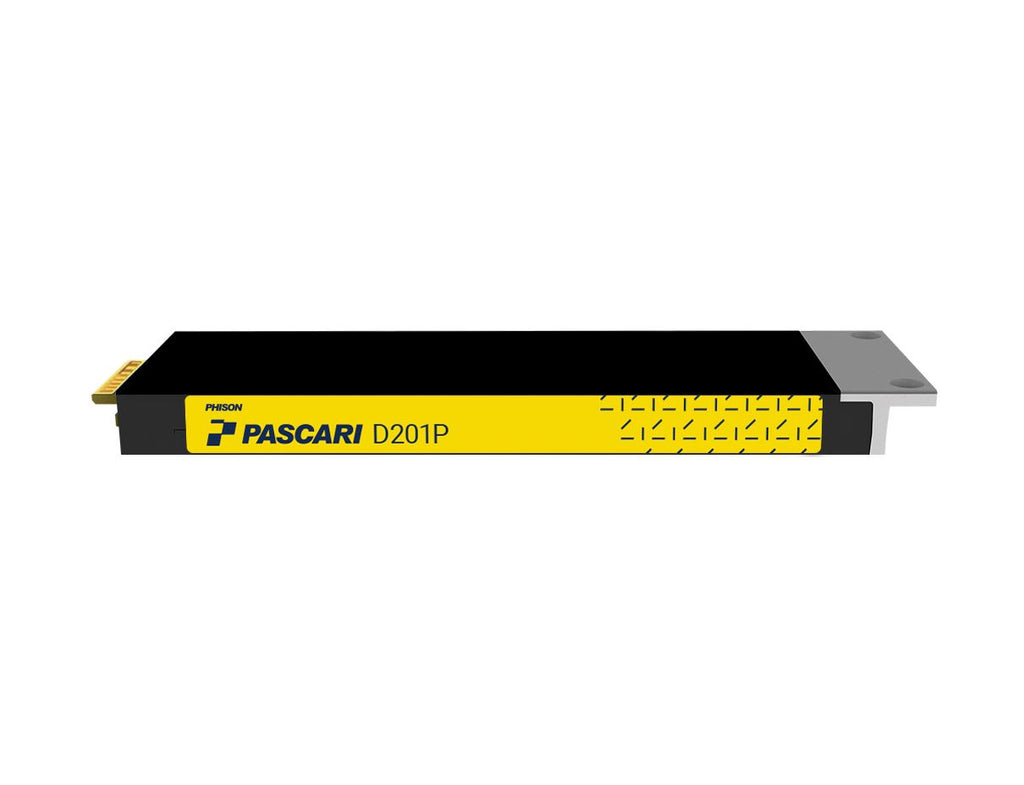

PHISON Pascari DP20AH083T84P314T0910 3.84TB PCIe 5.0 NVMe 2.0 Solid State Drive
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
PHISON Pascari DP20AH083T84P314T0910 DP20 series is a 3.84TB solid state drive with PCIe 5.0 x4 interface, NVMe 2.0d, 3D TLC NAND, sequential read speeds up to 14,800 MB/s, sequential write speeds up to 4,600 MB/s, and 4K random read and write performance of 2.7M and 230K IOPS. It supports 1 DWPD endurance, ≤25W active power, ≤5W idle power, 2.5 million-hour MTBF, UBER below 1 sector per 10^18 bits read, 0 to 70°C operating temperature, and measures 118.75 x 33.75 x 9.5 mm with a weight of ≤100 g.
Specifications
Model Number: DP20AH083T84P314T0910
Brand: PHISON Pascari
Alt Part Number(s): DP20AH083T84P314T0910
Product Type: Solid State Drive
Technical Description
Brand: PHISON Pascari
Model: DP20AH083T84P314T0910
Capacity: 3.84TB
Interface: PCIe 5.0 1x4
NVMe: 2.0d
NAND Flash: 3D TLC
Sequential Read (MB/s): 14,800
Sequential Write (MB/s): 4,600
4K Random Read (IOPS): 2,700K
4K Random Write (IOPS): 230K
Read Latency (Typ., s): 55
Write Latency (Typ., s): 8
Active (W): ≤25
Idle (W): ≤5
DWPD: 1
UBER: < 1 sector per 10^18 bits read
MTBF (million hours): 2.5
Operating Temp. (°C): 0 - 70
Non-Operating Temp. (°C): -40 - 85
Length (mm): 118.75
Width (mm): 33.75
Height (mm): 9.5
Weight (g): ≤100
