Description
Overview

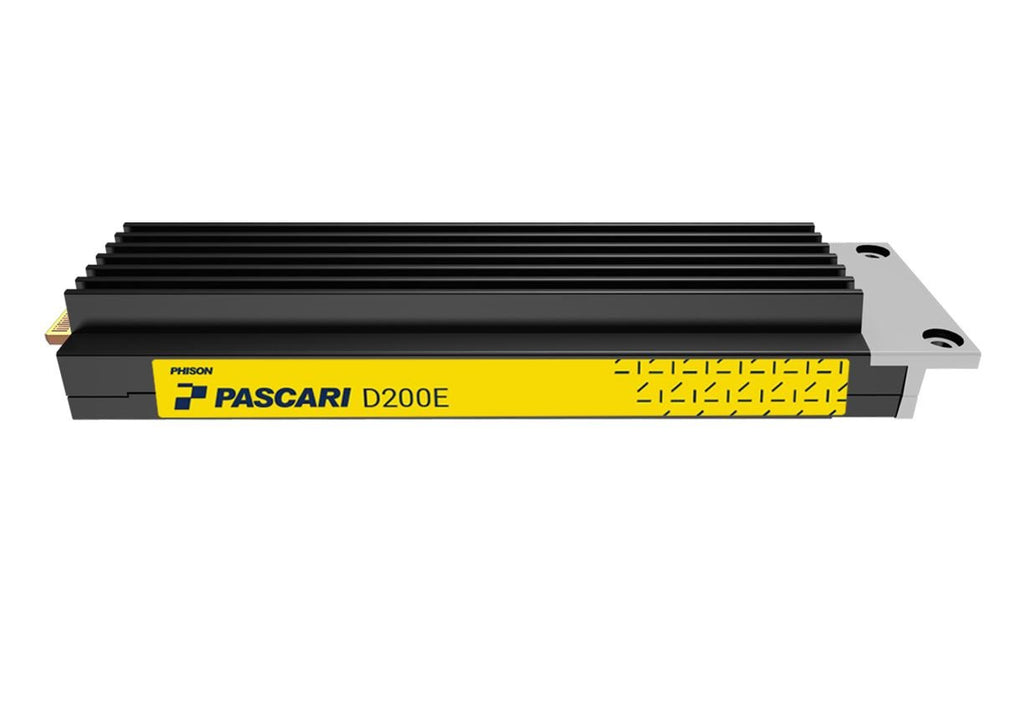

PHISON DP20AH031T60E312T0410 Pascari D200E 1.60TB EDSFF E1.S PCIe Gen5x4 Single Port ISE SSD
Specifications
Model Number: DP20AH031T60E312T0410
Brand: PHISON
Alt Part Number(s): DP20AH031T60E312T0410
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: DP20AH031T60E312T0410
Capacity: 1.6TB
Form Factor: EDSFF E1.S
Interface: PCIe 5.0 x4
Compliance:
PCI Express Base Specification Rev. 5.0
NVM Express Base Specification Rev. 2.0
NVMe Management Interface Rev. 1.2
Datacenter NVMe SSD Specification V2.0
SNIA SFF-TA-1009 R3.1.1 /1006 R1.5 /1020 Rev1.1 /1023 Rev 1.0
Sequential Read (MB/s): 14,000
Sequential Write (MB/s): 4,200
4K Random Read (IOPS): 2,350K
4K Random Write (IOPS): 390K
Active Power (128K Read, W): 17
Active Power (128K Write, W): 14
Active Power (4KB Read, W): 15
Active Power (4KB Write, W): 15
Power (70/30 Read/Write, W): 13
Idle Power (W): 4.9
DWPD: 3
TBW: 8.76TB
UBER: < 1 sector per 10^18 bits read
MTBF (million hours): 2.5
Operating Temp (°C): 0 - 70
Non-Operating Temp (°C): -40 - 85
Shock (Operating): 1000G, 2ms
Shock (Non-Operating): 1500G, 0.5ms
Vibration (Operating): 1.52mm/20G (20~2000 Hz)
Vibration (Non-Operating): 3.08Grms (7~800Hz)
Drop: 80cm
Bending: ≤ 50N
Certifications: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Ecological Compliance: RoHS, REACH
Feature Support:
128 Namespaces
Single Port
Reservation
Metadata Protection
Thermal Throttling
Power Loss Protection
SMBus
End-to-End Data Path Protection
TCG Opal 2.04
Hardware AES-XTS 256-bit Encryption
Sanitize
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
