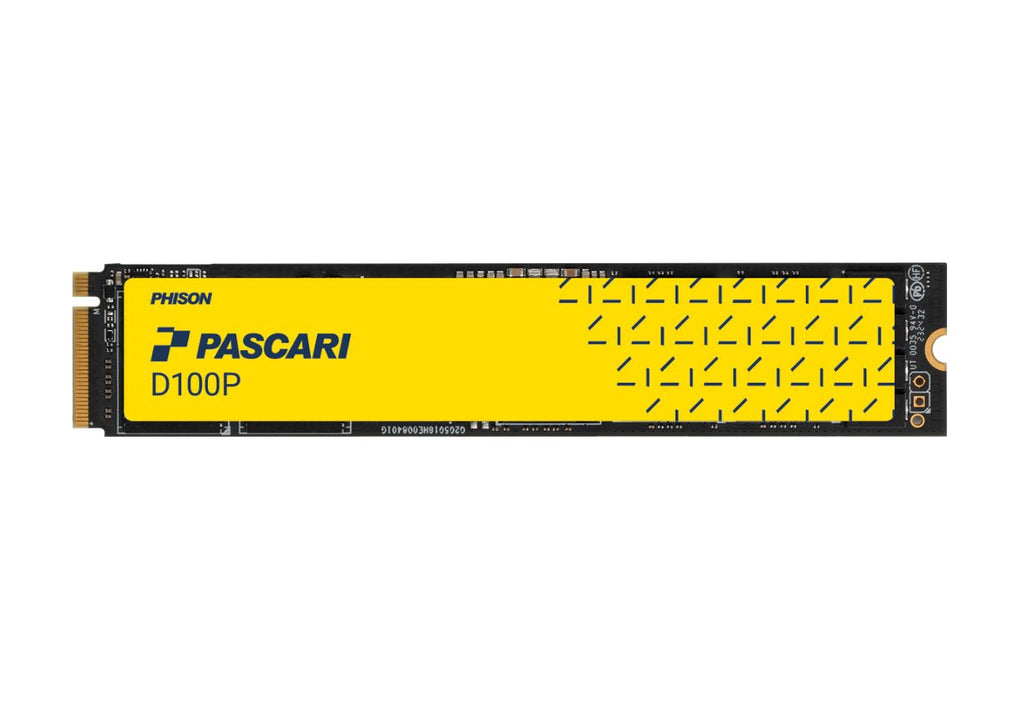

PHISON Pascari D100P D1803K011T92P012T0400 1.92TB PCIe Gen4 x4 Solid State Drive
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
PHISON D1803K011T92P012T0400 Pascari D100P is a 1.92 TB enterprise solid state drive featuring an M.2 22110 form factor and a PCIe Gen4 x4 interface with NVMe 1.4 compliance for high speed data storage applications. It delivers sequential read speeds up to 6000 MB/s and sequential write speeds up to 1800 MB/s, supports hardware AES XTS 256 bit encryption, power loss data protection, TCG Opal 2.0 security, and offers an endurance rating of 1 DWPD with a 3700 TBW lifespan.
Specifications
Model Number: D1803K011T92P012T0400
Brand: PHISON
Alt Part Number(s): D1803K011T92P012T0400
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: D1803K011T92P012T0400
Series: Pascari D100P
Capacity: 1.92 TB
Form Factor: M.2 22110
PCIe Interface: PCIe Gen4 x4
Compliance: PCI Express Base Specification Rev. 4.0; NVM Express Base Specification Rev. 1.4; NVM Express Management Interface Rev. 1.1
Sequential Read: Up to 6000 MB/s
Sequential Write: Up to 1800 MB/s
Random Read: Up to 800K IOPS
Random Write: Up to 60K IOPS
128K Active Read (Avg. RMS): 7.9W
128K Write (Avg. RMS): 7.4W
4KB Active Read (Avg. RMS): 10.3W
4KB Active Write (Avg. RMS): 7.5W
4KB 70/30 Random Read/Write (Average RMS): 7.0W
Idle Power: 4.2W
MTBF: 2.0 million hours
UBER: Less than 1 sector per 10^17 bits read
DWPD: 1
TBW: 3700 TB
Operating Temperature: 0°C to 70°C
Non-operating Temperature: -40°C to 85°C
Operating Shock: 1000G, 0.5ms
Non-operating Shock: 1500G, 0.5ms
Operating Vibration: 3.08Grms (7 to 200Hz)
Non-operating Vibration: 20G (20 to 2000Hz)
Drop: 80 cm height
Bending: ≥20N force
Certifications and Declarations: CE; FCC; BSMI; VCCI; UKCA; RCM; ICES; KCC; CB; UL
Product Ecological Compliance: RoHS compliant
Feature Support: 64 Namespaces; Hardware Based Power Loss Data Protection; Reservation; Thermal throttling; Hardware AES-XTS 256-bit Encryption; SMBus; End-to-End Data Path Protection; TCG Opal 2.0; Sanitize; SECDED
Physical Dimension: M.2 22110; 110 × 22 × 4.08 mm
