- Overview

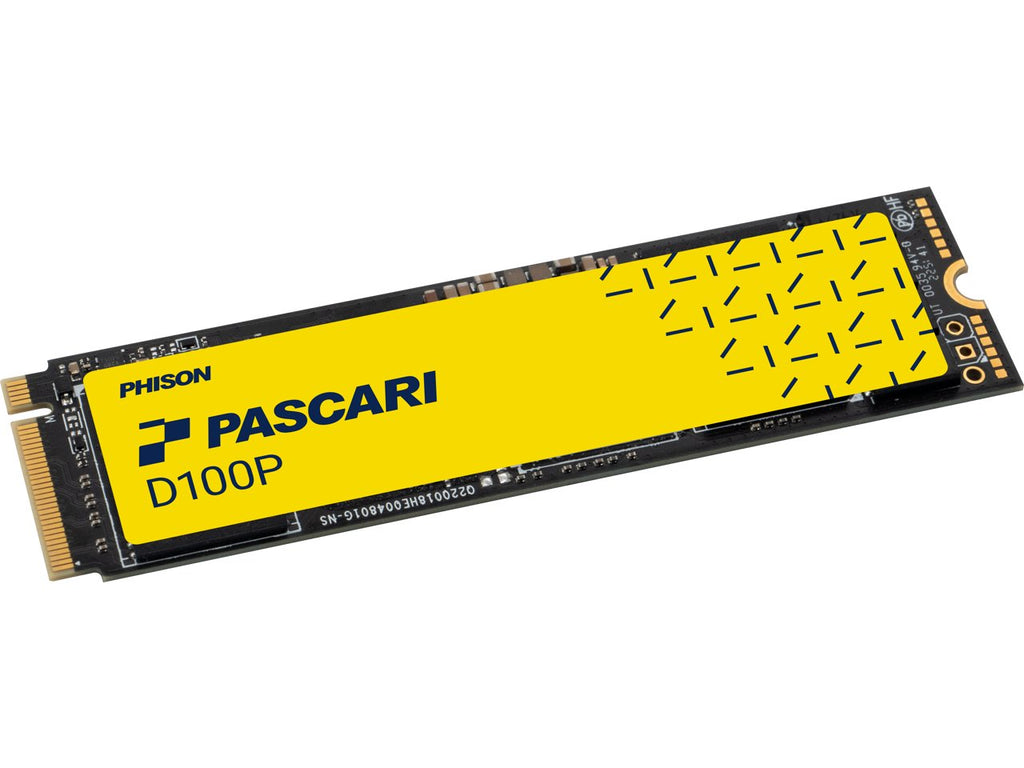

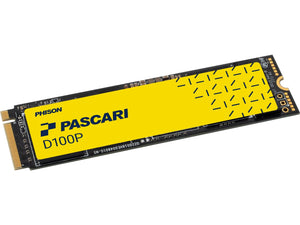

PHISON D1802K02960GP011T0200 Pascari D100P Solid State Drive offers 960 GB of 3D TLC NAND storage in an M.2 2280 form factor with a PCIe 4.0 x4 NVMe 1.4 interface, delivering sequential read speeds up to 6,000 MB/s, sequential write speeds up to 1,400 MB/s, and 4K random read performance of up to 750K IOPS. Built for enterprise reliability, it features low read and write latency, 1 DWPD endurance, an MTBF of 2.0 million hours, and efficient power consumption for demanding data center and professional workloads.
Specifications
Model Number: D1802K02960GP011T0200
Brand: PHISON
Alt Part Number(s): D1802K02960GP011T0200
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: D1802K02960GP011T0200
Series: Pascari D100P
Form Factor: M.2 2280
Capacity: 960 GB
Interface: PCIe 4.0 x4
NVMe: 1.4
NAND Flash: 3D TLC
Sequential Read: Up to 6,000 MB/s
Sequential Write: Up to 1,400 MB/s
4K Random Read: 750K IOPS
4K Random Write: 50K IOPS
Read Latency: 75 µs
Write Latency: 35 µs
Power Consumption: Active - 9.3 W; Idle - 3.5 W
DWPD: 1
UBER: < 1 sector per 10^17 bits read
MTBF: 2.0 million hours
Operating Temperature: 0°C to 70°C
Non-Operating Temperature: -40°C to 85°C
Length: 80 mm
Width: 22 mm
Height: 4.08 mm
Weight: 12 g
