- Overview

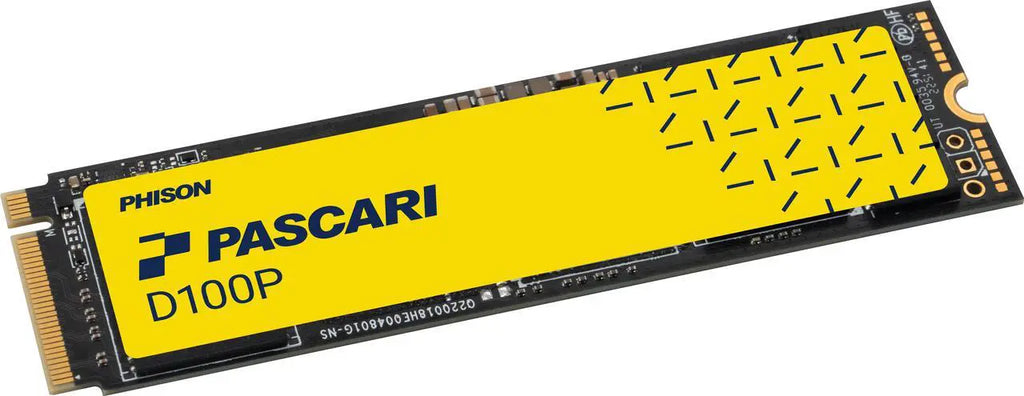

PHISON D1802K021T92P012T0400 is a 1.92TB M.2 2280 enterprise SSD with PCIe Gen4 x4 interface, delivering up to 6,000 MB/s sequential read and 1,800 MB/s sequential write speeds. It supports 1 DWPD endurance, 800K IOPS random read, 60K IOPS random write, hardware AES-XTS 256-bit encryption, power loss protection, and high reliability with 2M hour MTBF, wide operating temperature, and robust shock and vibration tolerance.
Specifications
Model Number: D1802K021T92P012T0400
Brand: PHISON
Alt Part Number(s): D1802K021T92P012T0400
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: D1802K021T92P012T0400
Capacities: 1.92 TB
Form Factor: M.2 2280
PCIe Interface: PCIe Gen4 x4
Compliance: PCI Express® Base Specification Rev. 4.0; NVM Express™ Base Specification Rev. 1.4; NVM Express™ Management Interface Rev 1.1
Sequential Read: Up to 6000 MB/s
Sequential Write: Up to 1800 MB/s
Random Read: Up to 800K IOPS
Random Write: Up to 60K IOPS
128K Active Read (Avg. RMS): 8.5 W
128K Write (Avg. RMS): 7.8 W
4KB Active Read (Avg. RMS): 11 W
4KB Active Write (Avg. RMS): 8 W
4KB 70/30 Random READ/WRITE (Average RMS, W): 7.4 W
Idle Power: 3.5 W
MTBF: 2,000,000 hours
UBER: < 1 sector per 10^17 bits read
DWPD: 1
TBW: 3,700 TB
Temperature (Operating): 0 °C - 70 °C
Temperature (Non-operating): -40 °C - 85 °C
Shock (Operating): 1000G, 0.5 ms
Shock (Non-operating): 1500G, 0.5 ms
Vibration (Operating): 3.08 Grms (7 - 200 Hz)
Vibration (Non-operating): 20G (20 - 2000 Hz)
Drop: 80 cm height
Bending: ≥20N force
Certifications: CE; FCC; BSMI; VCCI; UKCA; RCM; ICES; KCC; CB; UL
Product Ecological Compliance: RoHS compliant
Feature Support: 64 Namespaces; Hardware Based Power Loss Data Protection; Reservation; Thermal throttling; Hardware AES-XTS 256-bit Encryption; SMBus; End-to-End Data Path Protection; TCG Opal 2.0; Sanitize; SECDED
Physical Dimension: M.2 2280-D-M
