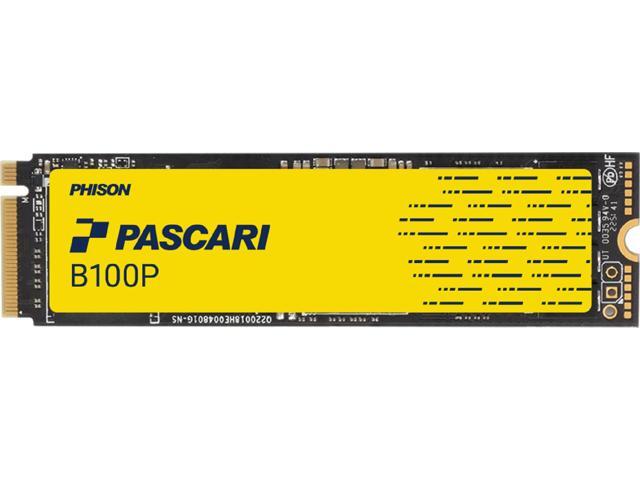

PHISON Pascari B100P B1802K001T92P012T0400 1.92TB PCIe 4.0 x4 NVMe SSD
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
PHISON B1802K001T92P012T0400 Pascari B100P solid state drive features 1.92 TB of storage capacity in an M.2 2280 form factor with a PCIe 4.0 x4 interface, NVMe 1.4 support, and 3D TLC NAND flash. It delivers sequential read speeds up to 5,000 MB/s, sequential write speeds up to 1,300 MB/s, up to 600K 4K random read IOPS, 45K random write IOPS, 1 DWPD endurance, and a 2.0 million-hour MTBF, with operating temperatures from 0°C to 70°C.
Specifications
Model Number: B1802K001T92P012T0400
Brand: PHISON
Alt Part Number(s): B1802K001T92P012T0400
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: B1802K001T92P012T0400
Series: Pascari B100P
Form Factor: M.2 2280
Capacity: 1.92TB
Interface: PCIe 4.0 x4
NVMe: 1.4
NAND Flash: 3D TLC
Sequential Read (MB/s): 5,000
Sequential Write (MB/s): 1,300
4K Random Read (IOPS): 600K
4K Random Write (IOPS): 45K
Read Latency (Typ., µs): 90
Write Latency (Typ., µs): 35
Active (W): 8.9
Idle (W): 3.5
DWPD: 1
UBER: < 1 sector per 10^17 bits read
MTBF (million hours): 2.0
Operating Temp. (°C): 0 - 70
Non-Operating Temp. (°C): -40 - 85
Length (mm): 80.00
Width (mm): 22.00
Height (mm): 4.08
Weight (g): 12.4
