Description
Overview

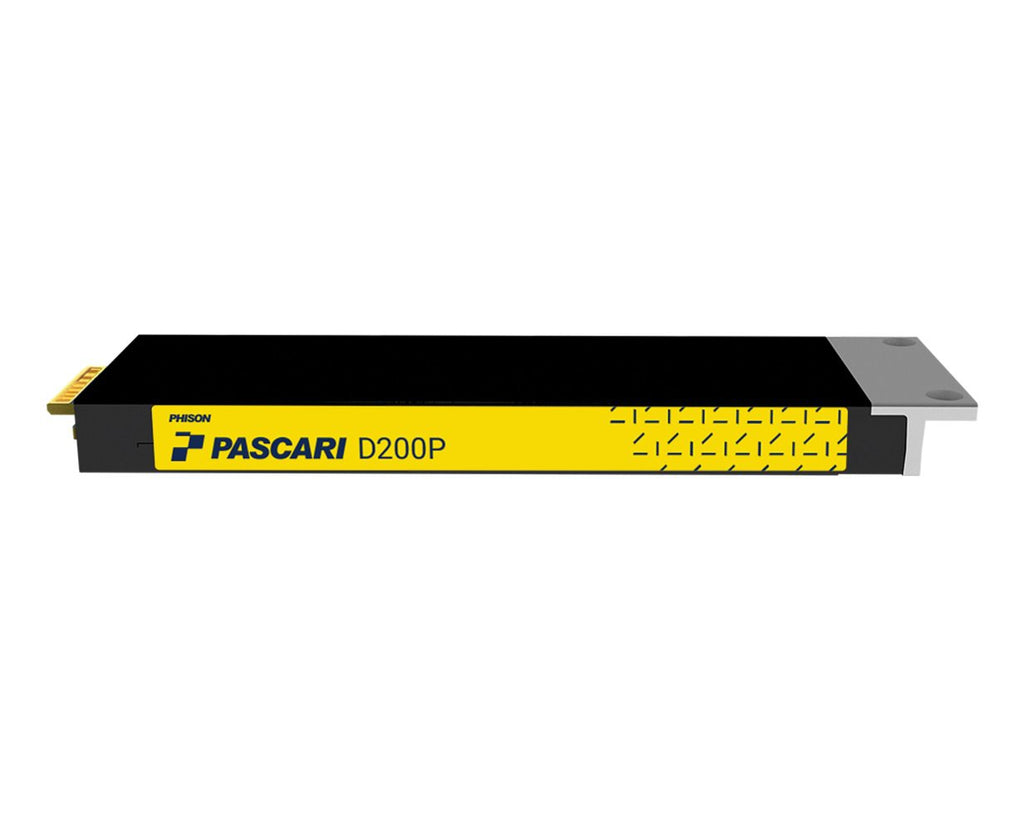

PHISON DP20AH031T92P312T0410 Pascari D200 1.92TB EDSFF E1.S PCIE 5.0 Single Port ISE SSD
Specifications
Model Number: DP20AH031T92P312T0410
Brand: PHISON
Alt Part Number(s): DP20AH031T92P312T0410
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: DP20AH031T92P312T0410
Capacities: 1.92 TB
Form Factor: EDSFF E1.S
PCIe Interface: PCIe Gen5 x4
Advanced Error Reporting: PCIe AER (Advanced Error Reporting)
Compliance: PCI Express Base Specification Rev. 5.0
NVMe Specification: NVM Express Base Specification Rev. 2.0
NVMe Management Interface: NVMe Express Management Interface Rev 1.2
Datacenter NVMe SSD Specification: V2.0
SNIA Compliance: SNIA SFF-TA-1009 R3.1.1 /1006 R1.5 /1020 Rev1.1 /1023 Rev 1.0
Sequential Read: 14,000 MB/s
Sequential Write: Up to 4,200 MB/s
Random Read: Up to 2,350K IOPS
Random Write: Up to 140K IOPS
Power Consumption 128K Active Read: 16 W
Power Consumption 128K Write: 14 W
Power Consumption 4KB Active Read: 15 W
Power Consumption 4KB Active Write: 16 W
Power Consumption 4KB 70 / 30 Random Read / Write: 13 W
Idle Power: 4.9 W
MTBF: 2.5 million hrs
UBER: < 1 sector per 10^18 bits read
DWPD: 1
TBW: 3,504 TB
Operating Temperature: 0°C - 70°C with specified airflow
Non-operating Temperature: -40°C - 85°C
Shock Operating: 1000G, 0.5 ms
Shock Non-operating: 1500G, 0.5 ms
Vibration Operating: 1.52 mm / 20G (20 ~ 2000 Hz)
Vibration Non-operating: 3.08 Grms (7 ~ 800 Hz)
Drop: 80 cm height
Bending: ≤ 50 N
Certifications and Declarations: CE, FCC, BSMI, VCCI, UKCA, RCM, ICES, KCC, CB, UL
Ecological Compliance: RoHS, REACH
Namespaces: 128
Port Type: Single Port
Reservation Support: Yes
Metadata Protection: Yes
Thermal Throttling: Yes
Power Loss Protection: Yes
SMBus Support: Yes
End-to-End Data Path Protection: Yes
TCG Opal 2.0: Yes
Encryption: Hardware AES-XTS 256-bit
Sanitize Support: Yes
