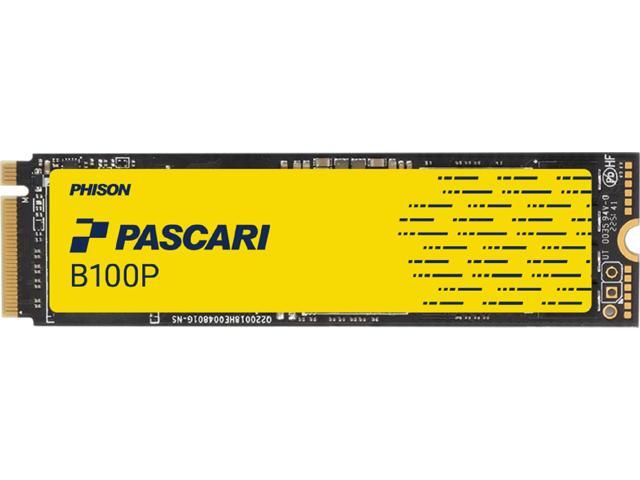

PHISON B1802K00960GP011T0200 960GB PCIe 4.0 x4 M.2 2280 Solid State Drive
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
PHISON B1802K00960GP011T0200 solid state drive features the M.2 2280 form factor, 960GB capacity, PCIe 4.0 x4 interface, NVMe 1.4, and 3D TLC NAND flash. It delivers sequential read speeds up to 5,000 MB/s, sequential write speeds up to 700 MB/s, 450K 4K random read IOPS, 30K 4K random write IOPS, 1 DWPD endurance, and 2.0 million-hour MTBF.
Specifications
Model Number: B1802K00960GP011T0200
Brand: PHISON
Alt Part Number(s): B1802K00960GP011T0200
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: B1802K00960GP011T0200
Form Factor: M.2 2280
Capacity: 960GB
Interface: PCIe 4.0 x4
NVMe: 1.4
NAND Flash: 3D TLC
Sequential Read (MB/s): 5,000
Sequential Write (MB/s): 700
4K Random Read (IOPS): 450K
4K Random Write (IOPS): 30K
Read Latency (Typ., µs): 75
Write Latency (Typ., µs): 30
Active (W): 8.9
Idle (W): 3.5
DWPD: 1
UBER: < 1 sector per 10^17 bits read
MTBF (million hours): 2.0
Operating Temp. (°C): 0 - 70
Non-Operating Temp. (°C): -40 - 85
Length (mm): 80.00
Width (mm): 22.00
Height (mm): 4.08
Weight (g): 12.4
