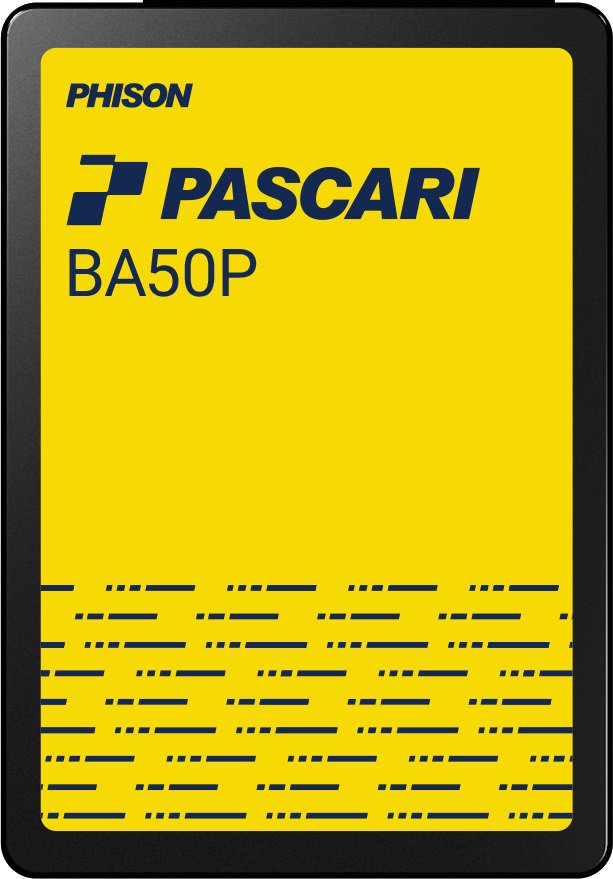

PHISON B1201K01240GP02256G00 Pascari BA50P 240GB 2.5-in SATA Gen3 Internal SSD
SPECIAL ORDER ITEM
This product is available for special order and may take longer to ship.
AVAILABILITY & SHIPPING
We source this item directly from the OEM as a special order, which may result in longer lead times. We’ll keep you updated throughout the process.
NEED IT SOONER?
Contact us to explore expedited options or find a comparable in-stock alternative.
SPECIAL ORDER FULFILLMENT
Saitech Inc. sources special orders directly from manufacturers and authorized distributors, including hard-to-find, end-of-life, and build-to-order products. These items may have longer lead times, and our team will keep you informed throughout the process.
- Overview
PHISON B1201K01240GP02256G00 is a 240 GB 2.5" SATA SSD from the Pascari BA50P series, designed for reliable enterprise storage with moderate performance. It delivers up to 530 MB/s sequential read, 290 MB/s sequential write, up to 60K IOPS random read, 10K IOPS random write, supports 1 DWPD endurance, and includes features like hardware power-loss protection and TCG Opal 2.0 encryption.
Specifications
Model Number: B1201K01240GP02256G00
Brand: PHISON
Alt Part Number(s): B1201K01240GP02256G00
Product Type: Solid State Drive
Technical Description
Brand: PHISON
Model: B1201K01240GP02256G00
Series: Pascari BA50P
Capacity: 240 GB
Form Factor: 2.5" SSD
SATA Interface: SATA Gen3
Compliance: Serial ATA Revision 3.2
Sequential Read: up to 530 MB/s
Sequential Write: up to 290 MB/s
Random Read: up to 60K IOPS
Random Write: up to 10K IOPS
128K Active Read (Avg. RMS, W): 2.0 W
128K Write (Avg. RMS, W): 2.3 W
4KB Active Read (Avg. RMS, W): 1.8 W
4KB Active Write (Avg. RMS, W): 2.2 W
4KB 70/30 Random Read/Write (Avg. RMS, W): 2.0 W
Idle Power (W): 1.2
MTBF: 2.0 million hours
UBER: < 1 sector per 10^17 bits read
DWPD: 1
TBW: 438 TB
Operating Temperature (°C): 0 - 70
Non-Operating Temperature (°C): -40 - 85
Shock (Operating): 1000G, 0.5ms
Shock (Non-Operating): 1500G, 0.5ms
Vibration (Operating): 3.08 Grms (7 - 800 Hz)
Vibration (Non-Operating): 20G (20 - 2000 Hz)
Drop: 80 cm height
Bending: 50 N force
Certifications and Declarations: CE; FCC; BSMI; VCCI; UKCA; RCM; ICES; KCC; CB; UL
Compliant: RoHS compliant
Feature Support: Hardware Based Power Loss Data Protection; Thermal throttling; End-to-End Data Path Protection; TCG Opal 2.0
