Description
Overview

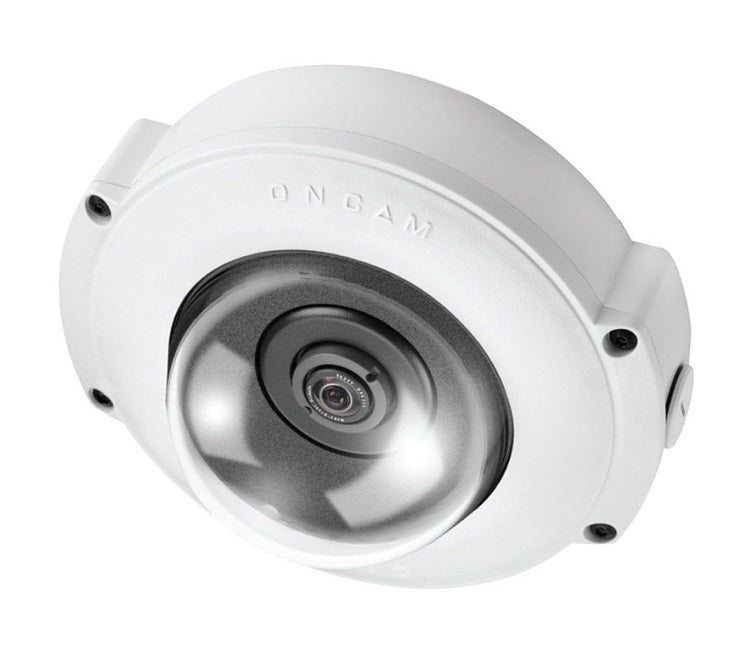

Pelco EVO-05NMD Evolution 360 5MP Outdoor Dome Network Camera
Specifications
Model Number: EVO-05NMD
Brand: Pelco
Alt Part Number(s): EVO-05NMD
Product Type: Network Security Camera
Technical Description
Brand: Pelco
Model: EVO-05NMD
Series: Evolution 360
Camera Signal: Network IP
Connection Type: Wired
Infrared Distance: Non Infrared
Resolution: 5 Megapixel
Lens Type: Fixed
Lens Size: 1.6mm
Mount Type: Ceiling, Wall
Compression Method: H.264, M-JPEG
Durability: Vandal Resistant, Weather Resistant
Voltage: 12vDC, PoE
Image Device: 1/2.5-Inch CMOS Sensor
Minimum Scene Illumination: 0.2 lux = 50 IRE F/2.0 (6500k)
Operating Humidity: Up to 98% (In accordance with BS EN 60068-2-30)
Operating Temperature: -40 to +55°C (-40 to +131°F)
Power Consumption: 4.512W (PoE) / 3.276W (DC12V)
Privacy Zone: 10 configurable privacy regions
Protocols: TCP/IP, HTTP, DHCP, DNS, NTP, FTP, SMTP, RSTP, uPNP
S/N Ratio: 45dB
Signal System: NTSC, PAL
Video Output: BNC
Weatherproof: IP66
Processor: Computer with 1Ghz 32-bit (x86) or 64-bit (x64) processor
Angle of View: 180° hemisphere
Motion Detection Tracking: 12 regions of interest; VMD; configurable response; adjustable characteristics
Automatic White Balance: Auto White Balance (Range = approx. 2500K~8000K)
Features
Audio
Auto Gain Control
Automatic White Balance
Motion Detection Tracking
ONVIF
Privacy Masking
Vandal Resistant
Weather Resistant
Wide Dynamic Range
Vandal resistant 360° IP camera with a 5-megapixel sensor and no moving parts
Constant 360° surveillance, no blind spots
No moving parts, no maintenance, silent operation
10fps at 4MP and 15fps at 2MP, 1MP and ¼MP
0.2 lux minimum illumination, enhanced WDR
PoE or 12VDC powered
IK10 vandal-resistant enclosure
Advanced Event Management
Configurable actions based on motion or hardware triggers
Configurable privacy regions
Video Motion Detection within defined areas of interest
Local alarm digital input and output
Audio microphone input
Ideal when IP66 protection is required
Quick and easy installation
Professional and rugged enclosure to withstand a range of harsh and humid environments
Pleasing aesthetic in white finish
Convenient surface-mounting enclosure
Suitable for ceiling, wall or table mounted applications
A range of mounting accessories allows for ceiling, wall, pole and pendant mounting
Fully integrated with multiple VMS platforms to provide live and retrospective dewarping
Market leading Oncam 3D dewarping software
Camera features are accessible via VMS platforms
Optimises bandwidth and storage utilisation
Simultaneous multiple video streams; resolutions from 528x480 to 2144x1944
H.264/MJPEG streaming with multiple quality levels
Configurable password protection
Intuitive web-based interface for viewing and configuration
Integrated with Digital Sentry version 7.5 and other leading VMS platforms
