Description
Overview

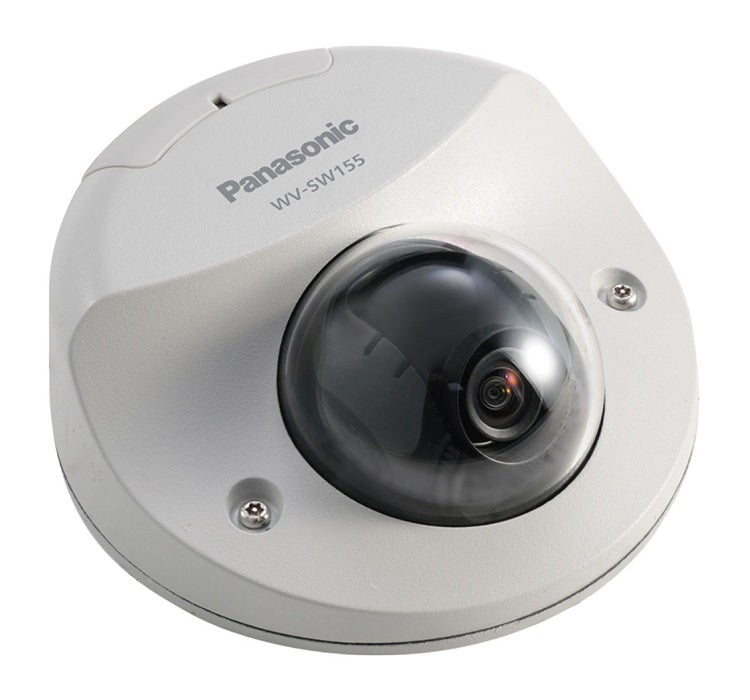

SW155 camera with M12 connector. The WV-SW155MA Super Dynamic HD Vandal Resistant Fixed Dome Network Camera with a 1.3 MP MOS image sensor offers high-quality imagery with high sensitivity. The UniPhier LSI chip allows the network camera to simultaneous stream real-time imagery in H.264 and JPEG formats at a resolution of 1280 x 960 at 30 fps.
Specifications
Model Number: WV-SW155MA
Brand: Panasonic
Alt Part Number(s): WV-SW155MA
Product Type: Network Camera
Technical Description
Brand: Panasonic
Model: WV-SW155MA
Infrared Distance: Non Infrared
Weatherproof: IP66
Digital Noise Reduction: High / Low
Signal System: NTSC/PAL
Scanning System: Progressive
Resolution: 1.3 Megapixel
Camera Signal: Network IP
Automatic White Balance: AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)
Motion Detection Tracking: On / Off, 4 areas available
Angle of View: Horizontal: 104 °, Vertical: 85 °
Electronic Shutter: With Super Speed Dynamic On: ELC (1/30 s), With Super Speed Dynamic Off: ELC (1/30 s), ELC (3/100 s), ELC (3/120 s), ELC (2/100 s), ELC (2/120 s), (1/100 s), ELC (1/120 s), ELC (1/250 s), ELC (1/500 s), ELC (1/1,000 s), ELC (1/2,000 s), ELC (1/4,000 s), E
Dimensions (W x H): ø109 mm x 47 mm (H) (ø4-9/32" x 1-27/32" (H)) With Mount Bracket: ø109 mm x 70 mm (H) (ø4-9/32" x 2-3/4" (H))
Automatic Gain Control (AGC): On (High) / On (Mid) / On (Low) / Off
Voltage: PoE
Durability: Indoor, Vandal Resistant, Weather Resistant
Compression Method: H.264, JPEG
Protocols: IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP, FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP
Mount Type: Ceiling, Wall
Lens Size: 1.95mm
Lens Type: Fixed
Image Device: 1/3 type CMOS image sensor
Power Consumption: PoE 48 V: 56 mA (Class 1 device)
Privacy Zone: On / Off (up to 2 zones available)
Operating Temperature: –30 °C to +50 °C (–22 °F to 122 °F)
Operating Humidity: Less than 90 % (no condensation)
Minimum Scene Illumination: Color: 0.8 lx (F2.2, Auto slow shutter: Off (1/30s), Gain: On (High)) Illumination 0.05 lx (F2.2, Auto slow shutter: Max. 16/30s, Gain: On (High)), BW: 0.6 lx (F2.2, Auto slow shutter: Off (1/30s), Gain:On(High)) 0.04 lx (F2.2, Auto slow shutter: Max. 16/
OSD Menu: English, Italian, French, German, Spanish, Portuguese, Chinese, Russian, Japanese
Connection Type: Wired
Image Pixels-Effective: Approx. 1.3 mega pixels
Features
720p HD images up to 30 fps
1.3 Megapixel high sensitivity MOS imege sensor
Multiple H.264 (High profile) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by “UniPhier®”, Panasonic's proprietary System LSI platform
Full frame (Up to 30 fps) transmission at 1,280 x 960 image size
Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range compared to conventional cameras
Face Super Dynamic technology ensures clear face image
High sensitivity with Day & Night (Electrical) function: 0.8 lx (Color), 0.6 lx (B/W) at F2.2
Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions
Progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving
Electronic sensitivity enhancement: Auto (Up to 16x) / OFF
2x extra zoom at VGA resolution
2x, 4x digital zoom controlled by browser
VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size
Privacy Zone can mask up to 2 private areas, such as house windows and entrances/exits
Camera title display: Up to 20 alphanumeric characters on the browser
Internet mode: H.264 images can be transmitted over HTTP protocol
Multi-language: English / Italian / French / German / Spanish /Portuguese / Russian / Chinese / Japanese
IPv4/IPv6 protocol supported
Supports SSL, DDNS (viewnetcam, RFC2136)
Still images (JPEG) can be viewed on mobile phones via Internet
ONVIF compliant model
Low profile design for discrete installation
Vandal resistant mechanism for high reliability
