Description
Overview

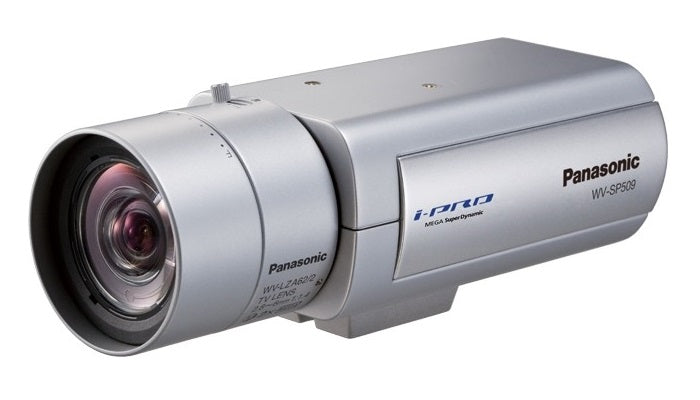

The Panasonic WV-SP509 1080p full HD network cameras delivers full HD pictures and 360p images simultaneously. It is powered by PoE. Panasonic's UniPhier’S newest generation LSI processor provides simultaneous cropping of whole and partial picture, lower bandwidth storage requirements, more VIQS zones, dual H.264 streaming capability and overall higher-level functionality. The SP509 is the most intelligent camera to date. Face detection allows the camera to adjust product focus to capture a person in shot and also use the XML data to trigger an alarm upon detection if using a compatible recorder. Auto back focus (ABF) allows easy installation, reducing installation time and ensuring a perfect image. VIQS (variable image quality on specified area) is the latest innovation to the Smart HD range, allowing the camera to have higher resolution only on specified areas of the image, meaning lower bandwidth. Also, it is ONVIF compliant, making this camera a must for a wide range of applications. The Panasonic WV-SP509 Full HD Network Smart Box Camera provides all the latest Smart HD innovations, ensuring it is fit for all indoor and outdoor needs.
Specifications
Model Number: WV-SP509
Brand: Panasonic
Alt Part Number(s): WV-SP509
Product Type: Wireless Cellular Modem
Note: Camera and lens only - no box or manual is included
Technical Description
Brand: Panasonic
Model: WV-SP509
Camera Signal: Network IP
Connection Type: Wired
Infrared Distance: Non Infrared
Resolution: 2.1 Megapixel
Lens Size: Not Included
Mount Type: Bracket Required
Compression Method: H.264
Durability: Indoor
Voltage: 12vDC
Automatic Gain Control (AGC): On (Low, Mid, High ) / Off
Dimensions (W x H): 2.96 x 2.56 x 5.25"
Electronic Shutter: Fix shutter: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120, 1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 (only at Super Dynamic Off)
Image Device: 1/3 inch MOS sensor
Minimum Scene Illumination: Color: 0.5 lux, B&W: 0.06 lux at F1.4 (Shutter: 1/30 s, AGC: High)Color: 0.03 lux, B&W: 0.004 lux at F1.4 (Shutter: 16/30 s, AGC: High)
Operating Humidity: 90 % or less (without condensation)
Operating Temperature: 14 to 122°F (-10 to +50°C)
Power Consumption: 12 VDC: 570 mA, PoE (IEEE802.3af compliant) / PoE 48 V: 125 mA (Class 2 device) 4
Privacy Zone: Up to 2 zones, gray
Scanning Horizontal: 4.51mm
Scanning System: Progressive scan
Scanning Vertical: 3.38 mm
Video Output: RJ-45
Digital Noise Reduction: High / Low
Automatic White Balance: AWC (2,000 to 10,000 K), ATW1 (2,700 to 6,000 K), ATW2 (2,000 to 6,000 K)
Features
Super high resolution at Full HD/1920 x 1080 created by 3.1Megapixel high sensitivity MOS Sensor
1080p Full HD images up to 30 fps and 360p image up to 30fps simultaneously
2 areas VIQS (Variable Image Quality on Specified area) technology
Cropping function : simultaneous whole image (1920 x 1080) and the part image (640 x 360)
Face Wide Dynamic Range
High sensitivity with Day & Night (IR) function: 0.5 lx (Color), 0.06 lx(B/W) at F1.4
H.264 (High profile) dual stream and JPEG output
Power over Ethernet (PoE) IEEE 802.3af
SDXC/SDHC/SD Memory card slot
ABF (Auto Back Focus) ensures easy installation and stable focus in both color and B/W modes
Onvif compliant
