Description
Overview

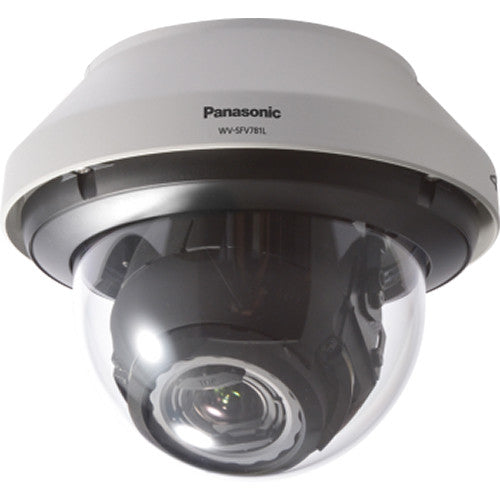

The Panasonic WV-SFV781L 4K H.264 Vandal-Resistant IR Dome Network Camera uses a 1/1.7" sensor and the Panasonic True 4K F1.6 lens to deliver images in 4K (3840 x 2160) resolution at 30 fps. It achieves a minimum illumination of 0.3 lux (color) and 0.04 lux (B&W). The camera provides a 96° (Wide) to 17° (Tele) horizontal angular field of view with a 16:9 aspect ratio and a 100° (Wide) to 17° (Tele) view with a 4:3 aspect ratio. Equipped with Smart IR LEDs that auto-adjust according to ambient lighting, the camera can capture clear images in complete darkness (0 lux) up to 98' (with IR LED setting at auto-high). It offers virtual PTZ operation that allows the operator to crop certain areas in the camera view while still recording the whole area, so no event is missed.
Specifications
Model Number: WV-SFV781L
Brand: Panasonic
Alt Part Number(s): WV-SFV781L
Product Type: Dome Camera
Technical Description
Brand: Panasonic
Model: WV-SFV781L
Sensor: 1/1.7 type MOS image sensor
Video Resolution: 4000 x 3000
Scanning Area (H x V): 0.28 x 0.22" (7.40 x 5.55 mm)
Focal Length: 4.2 mm - 25.2 mm
Lens Iris: F/1.6-3.3
Optical Zoom: 6x Zoom
Min Focus Distance: 23.6 in
Horizontal Field of View (degree): 17 - 96
Vertical Field of View (degree): 9.3 – 54
Network Interface: Ethernet 10Base-T/100Base-TX
Network Protocols: DDNS, DHCP, DNS, FTP, HTTP, NTP, SMTP, TCP/IP, UDP/IP, ARP
Video Format: NTSC, PAL
Min Operating Temperature: -49 °F
Max Operating Temperature: 122 °F
Relative Humidity (operating): 10 - 90% (non-condensing)
Output Voltage: 208 - 230 V AC
Protocols: Web, SNMP, Telnet
Connectivity Technology: Wired
Width: 9 in
Depth: 9 in
Height: 7.4 in
*Product descriptions, images, and part numbers are subject to change and may not accurately reflect manufacturer product alterations. For the latest and most precise information, kindly refer to the manufacturer's website and use the item's manufacturer part number.
