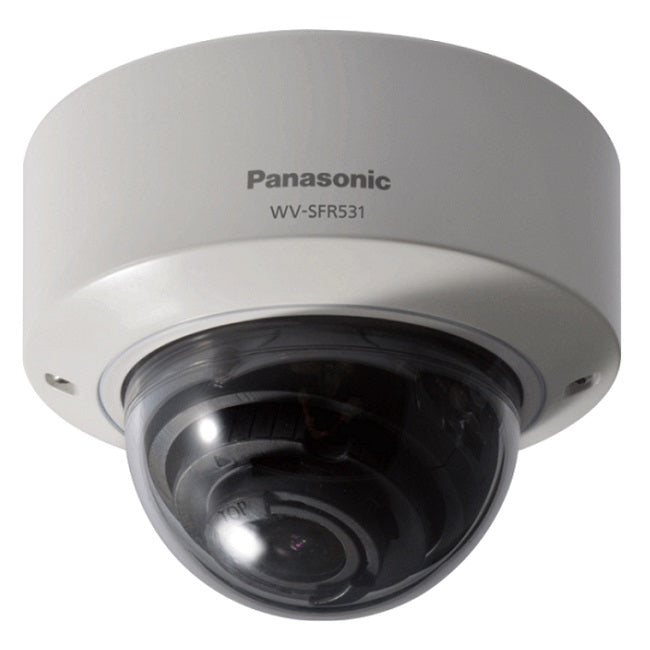

Panasonic WV-SFR531 Indoor Vandal Resistant Dome Network Security Camera

Overview

The WV-SFR531, Indoor Vandal Resistant Dome Camera, provides Full HD 1080p resolution at up to 60fps for high-performance and exceptional value. The WV-SFR531 uses Panasonic’s latest image sensor technology combined with Multi-process Noise Reduction (MNR), resulting in high sensitivity of 0.04 lux in color images, and the ability to deliver clear images with minimum ambient light. The WV-SFR531 is also available with optional intelligent Video Motion Detection (i-VMD) technology (through WV-SAE200W), including intruder detection, loitering detection, direction detection, scene change detection, object detection and cross line detection. The evolved self-learning algorithm and powerful UniPhier™ system LSI results in high detection rates with fewer false alerts.

Specifications

Model Number:  WV-SFR531

Brand:  Panasonic

Alt Part Number(s):  WV-SFR531

Product Type:  Network Security Camera

Technical Description

Brand:  Panasonic

Model:  WV-SFR531

Camera Signal:  Network IP

Connection Type:  Wired

Infrared Distance:  Non Infrared

Resolution:  2 Megapixel

Lens Type:  Varifocal

Lens Size:  2.8-9.5mm

Mount Type:  Ceiling, Wall

Compression Method:  JPEG

Durability:  Indoor, Vandal Resistant

Voltage:  12vDC, PoE

Automatic Gain Control (AGC):  On (Low, Mid, High) / Off

Dimensions (W x H):  129.5 mm x 102.5 mm (H) {5-3/32 inches x 4-1/32 inches (H)}, Dome radius 41.5 mm {1-5/8 inches}

Image Device:  Approx. 1/3 type MOS image sensor

Minimum Scene Illumination:  Color: 0.07 lx, BW: 0.01 lx (F1.6, Maximum shutter: Max. 1/30s, Gain: On(High)), Color: 0.005 lx, BW: 0.0007 lx (F1.6, Maximum shutter: Max. 16/30s, Gain: On(High))

Operating Humidity:  10 to 90 % (no condensation)

Operating Temperature:  -10 °C to +50 °C (14 °F to 122 °F)

Power Consumption:  DC power supply: DC12 V / 450 mA / Approx. 5.4 W, PoE Device: DC48 V / 110 mA / Approx. 5.3 W (Class 2 device)

Privacy Zone:  Up to 8 zones

Protocols:  IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, FTP, SMTP, DNS, NTP, SNMP, DHCPv6, RTP, MLD, ICMP, ARP, IPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS, NTP, SNMP, UPnP, IGMP, ICMP, ARP

Scanning System:  Progressive scan

Digital Noise Reduction:  High / Low

Motion Detection Tracking:  4 areas, Sensitivity : 15 steps, Detection size : 10 steps

Automatic White Balance:  AWC (2,000 - 10,000 K), ATW1 (2,700 - 6,000 K), ATW2 (2,000 - 6,000 K)

Features

1080p Full HD images up to 60 fps*1

Approximate 1/3 inches, high sensitivity MOS image sensor

Super high resolution at Full HD/1,920 x 1,080 created by high sensitivity MOS image sensor

Multiple H264 (High profile) streams (max 4 streams) and JPEG streams ensure simultaneous real time monitoring and high resolution recording

Maximum Screen Size is 2,048 x 1,536* @30fps, H264

Enhanced Super Dynamic*1 and ABS (Adaptive Black Stretch) technologies deliver 133 dB wider dynamic range compared to conventional cameras

Smart coding Technology : Group of Pictures (GOP) control functionremoves unnecessary information from the frame for realizing efficient encoding

Auto VIQS (Variable Image Quality on Specified area) function recognizes the no movement area in a video automatically and lowering the resolution of it to reduce the data size

With the latest bit rate reducing technology, GOP control, Auto VIQS, 3D-MNR (Multi process Noise Reduction) and FDF (Frequency Divided Filter), the network bandwidth and the disk space of recorder can be saved

High sensitivity with Day/Night (ICR*) function: 007 lx (Color), 001 lx (B/W) at F16 *ICR: IR Cut filter Removal

ABF (Auto Back Focus) ensures easy installation

VIQS (Variable Image Quality on Specified area) technology allows the designated eight areas to retain higher image quality while the excluded area will have a decreased image quality, which enables to use lower image file size and bit rate

Cropping function enables to provide whole image and the part image simultaneously Up to 4 image capture areas can be specified, and it is also possible to control the sequence

Face Super Dynamic technology ensures clear face image

Lens distortion compensation for the distorted images can be adjusted 256 steps

Selectable light control modes: Outdoor scene,Indoor scene (50 Hz) / Indoor scene (60 Hz),Fix shutter Indoor scene (50 Hz/60Hz): Flicker caused by fluorescent lightning will be automatically compensated

3x extra optical zoom at 640 x 360 resolution

2x, 4x digital zoom controlled by browser

VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size

Privacy Zone can mask up to 8 private areas, such as house windows and entrances/exits

Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions such as SDXC/SDHC/SD memory recording, FTP image transfer, E-mail notification, Indication on browser, Alarm terminal output, and Panasonic alarm protocol output

Full duplex bi-directional audio allows interactive communication between camera site and monitoring site

Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate

SDXC/SDHC/SD Memory card slot for manual recording (H264 / JPEG), alarm recording (H264 / JPEG) and backup upon network failure (H264 / JPEG) Realize long-term recording and auto backup function

Face detection function detects the position of human face and the information is sent by XML or video stream(Optional)

Can be added new intelligent extension software (Optional) in additionto built-in VMD (Video Motion Detection), alarm function

Fog compensation function equipped as standard

HLC (High Light Compensation) technology reduces strong light sources such as vehicle headlights to prevent camera being blinded

SCC (Super Chroma Compensation) function realizes a better color reproducibility even in low illumination

H264 max bit rate/client and Total bit rate control allows flexible network traffic management Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate

Internet mode: H264 images can be transmitted over HTTP protocol

Multi-language: English / Italian / French / German / Spanish / Portuguese / Russian / Chinese / Japanese

Supports SSL, DDNS (viewnetcam, RFC2136)

Vandal resistant mechanism for high reliability

*
