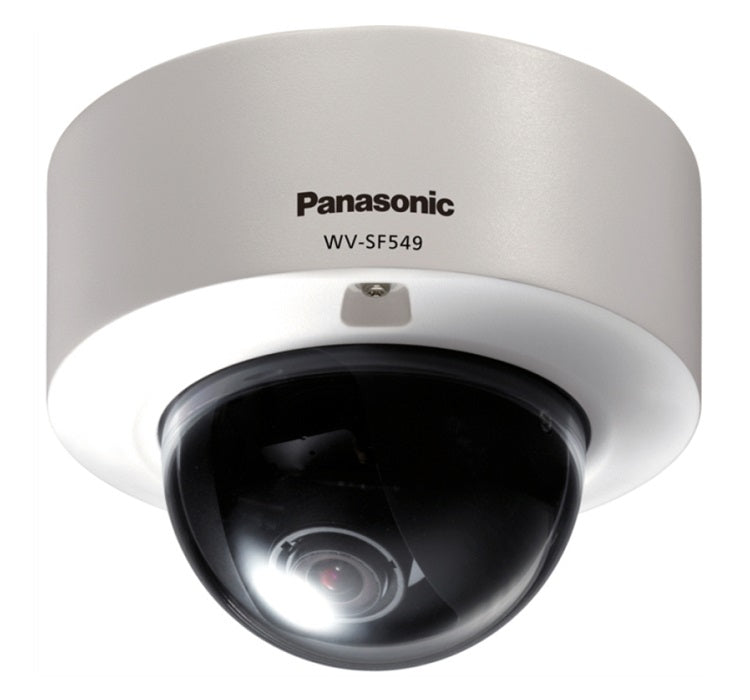

Panasonic WV-SF549 Super Dynamic Full HD Vandal-Resistant Dome Network Camera

Overview

The WV-SF549 from Panasonic is a Super Dynamic Full HD Vandal-Resistant Dome Network Camera offers high-quality 24-hour video surveillance in both day and night time lighting conditions. Designed for day/night surveillance, this network camera captures clear images at F/1.3 even in locations with a minimum illumination of 0.3 lux (B&W). The Adaptive Black Stretch technology increases visibility of subjects in dark areas of a video scene without compromising the image quality of brighter areas. The face super dynamic range technology offers blur-free images of the human face. Furthermore, with the progressive scan technology, you can be sure to obtain blur-free images even when the object is in motion. In addition, the UniPhier LSI chip enables this network camera to simultaneously stream real-time imagery in Full HD resolution of 1920 x 1080 at 30 fps. The electronic sensitivity enhancement function Auto (up to 16x) increases the quantity of light stored on the sensor, making the image brighter. In addition, the Auto Back Focus adjusts the position of the MOS sensor to offer stable focus in both color and B&W modes.



Specifications

Model Number:  WV-SF549

Brand:  Panasonic

Alt Part Number(s):  WV-SF549

Product Type:  Video Encoder



Technical Description

Brand:  Panasonic

Model:  WV-SF549

Camera Signal:  Network IP

Connection Type:  Wired

Infrared Distance:  Non Infrared

Resolution:  3 Megapixel

Lens Type:  Varifocal

Lens Size:  2.8-10mm

Mount Type:  Ceiling, Wall

Compression Method:  H.264, JPEG

Durability:  Indoor, Vandal Resistant

Voltage:  12vDC

Automatic Gain Control (AGC):  ON (LOW, MID, HIGH) / OFF

Dimensions (W x H):  132 mm x 102.5 mm (H) {5-3/16 inches x 4-1/32 inches (H)

Electronic Shutter:  Fix shutter: 1/30, 3/100, 3/120, 2/100, 2/120, 1/100, 1/120,1/250, 1/500, 1/1,000, 1/2,000, 1/4,000, 1/10,000 (only at Super Dynamic Off)

Image Device:  1/3 type MOS Sensor

Image Pixels-Effective:  Approx. 3.1 megapixel

Minimum Scene Illumination:  Color: 0.5 lx, BW: 0.06 lx (F1.3, Auto slow shutter: Off (1/30s), Gain:On(High))Color: 0.03 lx, BW 0.004 lx (F1.3, Auto slow shutter: Max. 16/30s, Gain:On(High))

Operating Humidity:  Less than 90 % (no condensation)

Operating Temperature:  -10 °C ~ +50 °C (14 °F ~ 122 °F)

Power Consumption:  12V DC: 530 mA *, PoE (IEEE802.3af compliant) / PoE 48 V: 120 mA (Class 2 device)

Privacy Zone:  Up to 2 zones, Gray

Protocols:  IPv6: TCP/IP, UDP/IP, HTTP, HTTPS, RTP, FTP, SMTP, DNS, NTP, SNMP, DHCPv6,ICMP,ARPIPv4: TCP/IP, UDP/IP, HTTP, HTTPS, RTSP, RTP, RTP/RTCP,FTP, SMTP, DHCP, DNS, DDNS,NTP, SNMP, UpnP,IGMP,ICMP,ARP

Scanning Horizontal:  4.51 mm (H) {3/16 inches (H)

Scanning System:  Progressive scan

Scanning Vertical:  3.38 mm (V) {1/8 inches (V)

Signal System:  NTSC , PAL

Digital Noise Reduction:  High / Low

Angle of View:  H: 24.2 °(TELE) ~ 80.6 °(WIDE) V: 13.50°(TELE) ~ 47.57°(WIDE)

On Screen Display Menu:  English, Japanese, Italian, French, German, Spanish, Chinese, Russian

Motion Detection Tracking:  4 areas, Sensitivity: 15 steps, Detection size: 10 steps

Automatic White Balance:  AWC (2,000 ~ 10,000 K), ATW1 (2,700 ~ 6,000 K), ATW2 (2,000 ~ 6,000 K)



Features

Super high resolution at Full HD/1,920 x 1,080 created by 3.1Megapixel high sensitivity MOS Sensor

1080p Full HD images up to 30 fps and 360p image up to 30fps simultaneously

Combining enhanced “UniPhier®”, Panasonic’s proprietary System LSI platform and 2 areas VIQS (Variable Image Quality on Specified area) function can decrease maximum 50%*1 network bandwidth

Cropping function enables to provide whole image (1,920 x 1,080) and the part image (640 x 360) simultaneously. Up to 4 image capture areas can be specified, and it is also possible to control the sequence

Picture in picture function: A cropping image or an alarm image can be added to an image and transmitted

Multiple H.264 (High profile) streams and JPEG streams ensure simultaneous real time monitoring and high resolution recording by enhanced “UniPhier®”

Super Dynamic and ABS (Adaptive Black Stretch) technologies deliver 128x wider dynamic range compared to conventional cameras

Face Super Dynamic Range technology ensures clear face image

High sensitivity with Day & Night (IR) function:0.5 lx (Color), 0.06 lx (B/W) at F1.3

Using Panasonic distinctive LDC (Lens Distortion Compensation) function, natural image without distortion can be monitored though using wide angle lens

ABF (Auto Back Focus) ensures easy installation

ABF ensures stable focus in both color and B/W modes

Digital Noise Reduction: 3D-DNR ensures noise reduction in various conditions

Progressive scan ensures clear images with less motion blur and no tearing even when the subject is moving

Superior color reproduction by primary (RGB) color filter

Electronic sensitivity enhancement: Auto (Up to 16x) / OFF

Selectable light control modes: Outdoor scene / Indoor scene (50 Hz) / Indoor scene (60 Hz) / Fixed electronic shutter Outdoor scene: Electronic shutter and ALC lens iris control are automatically controlled depending on the mode and luminance level. Indoor scene (50 Hz / 60 Hz): Flicker caused by fluorescent lightning will be automatically compensated. Fixed electronic shutter: Up to 1/10,000 fixed electronic shutter can be selectable

3x Extra optical zoom at 360p resolution. (Picture Mode : 2 Mega pixel [16:9] )

VMD (Video Motion Detection) with 4 programmable detection areas, 15 steps sensitivity level and 10 steps detection size

Privacy Zone can mask up to 2 private areas, such as house windows and entrances/exits

2x, 4x digital zoom controlled by browser

Camera title display: Up to 20 alphanumeric characters on the browser

Alarm sources including 3 terminal input, VMD and Panasonic alarm command can trigger actions such as SDXC/SDHC/SD memory recording, FTP image transfer, E-mail notification, Indication on browser, Alarm terminal output, and Panasonic alarm protocol output

Full duplex bi-directional audio allows interactive communication between camera site and monitoring site

JPEG Image compression ratio can be changed by alarm so that higher quality image can be provided

Prioritized stream control: One of the video streams can be prioritized when multiple recorders or client PCs are accessing the camera so that the recorder or the client PC can maintain the frame rate

SDXC/SDHC/SD Memory card slot for manual recording (H.264 / JPEG), alarm recording (H.264 / JPEG) and backup upon network failure (JPEG)

H.264 max. bit rate/client and Total bit rate control allows flexible network traffic management. Frame rate priority mode controls bit rate and compression ratio to provide the specified frame rate

Internet mode: H.264 images can be transmitted over HTTP protocol

Multi-language: English / Italian / French / German / Spanish / Russian / Chinese / Japanese

IPv4/IPv6 protocol supported

Supports SSL, DDNS (viewnetcam, RFC2136)

Still images (JPEG) can be viewed on mobile phones via the Internet

Onvif compliant model

Vandal resistant mechanism for high reliability

2.8 ~ 10.0 mm, 3.6x Varifocal Auto Iris Lens

Fog compensation
